2 Installation of Location 2 Upgrade Kit 2.4 Installing the E-series Tape Cutter [03105585-xx] Assembly Instructions E by SIPLACE Location 2 Upgrade Kit 04/2017 26 2.4 Installing the E-series Tape Cutter [03105585-xx] ► …
2 Installation of Location 2 Upgrade Kit
2.3 Recommended Installation Steps
Assembly Instructions E by SIPLACE
Location 2 Upgrade Kit 04/2017
18
2.3 Recommended Installation Steps
► Remove the safety cover to get access to
knock in dowel.
► Push the red part to a middle position to be
able to access all the four cover-mounting-
screws.
► The cover-mounting-screws that secure
the cover just need to be loosened, not re-
moved, as the cover is key-holed.
► Place the Insert Module on the frame at the correct location.
► Lightly secure with washer and M8x30 screw.
► Knock in the 8x28 dowel from the top, pay attention to the recommended orientation.
2 Installation of Location 2 Upgrade Kit
2.4 Installing the E-series Tape Cutter [03105585-xx]
Assembly Instructions E by SIPLACE
Location 2 Upgrade Kit 04/2017
26
2.4 Installing the E-series Tape Cutter [03105585-xx]

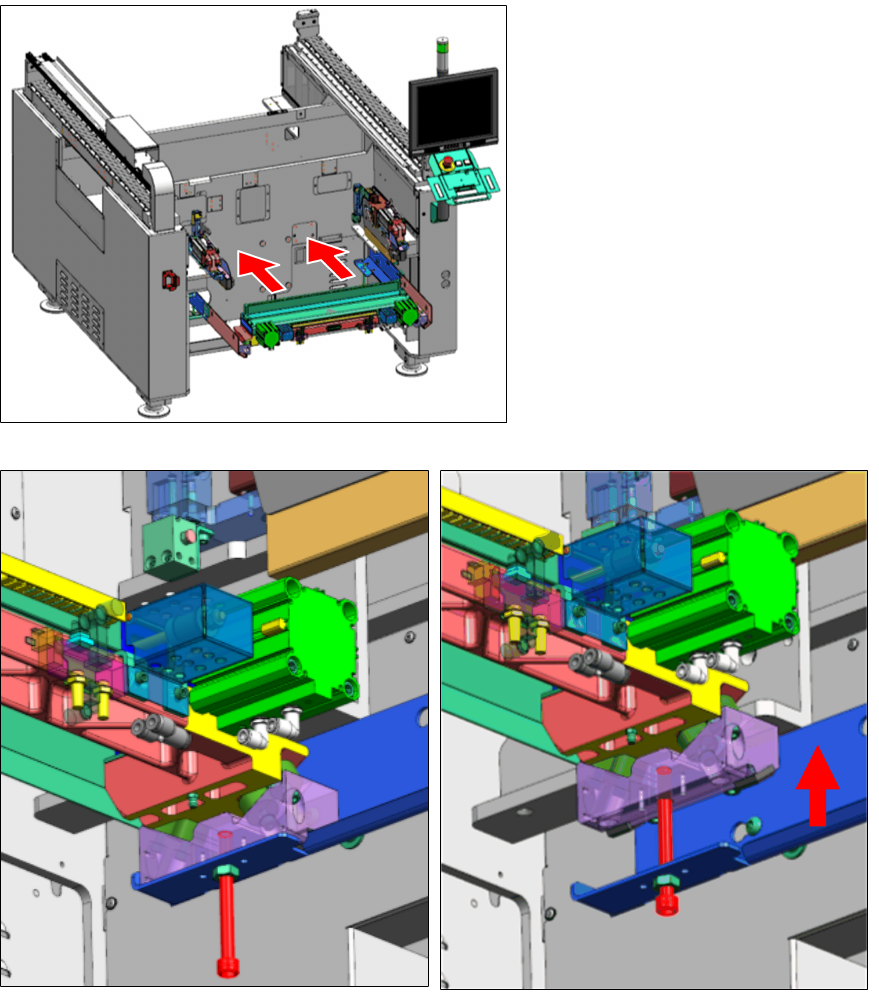

► Place the tape cutter onto the
brackets and slide it into the ma-
chine.
► Align the side holder block blind
hole with the lifting screw hole.
► Fasten the M10x100 screw (1 piece) on each side (left & right) synchronously to lift up the
tape cutter.
2 Installation of Location 2 Upgrade Kit
2.3 Recommended Installation Steps
Assembly Instructions E by SIPLACE
Location 2 Upgrade Kit 04/2017
20
► Knock in the 8x28 dowel, paying attention
to the recommended orientation.
► Tighten the M8 and two M6 screws.
► Replace the safety cover and
tighten the cover-mounting-
screws.
