00198351-01_AI_Location 2 Upgrade Kit_E by SIPLACE_en - 第21页
Assembly Instructions E by SIPLACE Location 2 Upgrade Kit 04/2017 2 Installation of Location 2 Upgrade Kit 2.3 Recommended Installation Steps 21 ► Secure the following parts together with the M4x8 countersunk screws and …
2 Installation of Location 2 Upgrade Kit
2.3 Recommended Installation Steps
Assembly Instructions E by SIPLACE
Location 2 Upgrade Kit 04/2017
20

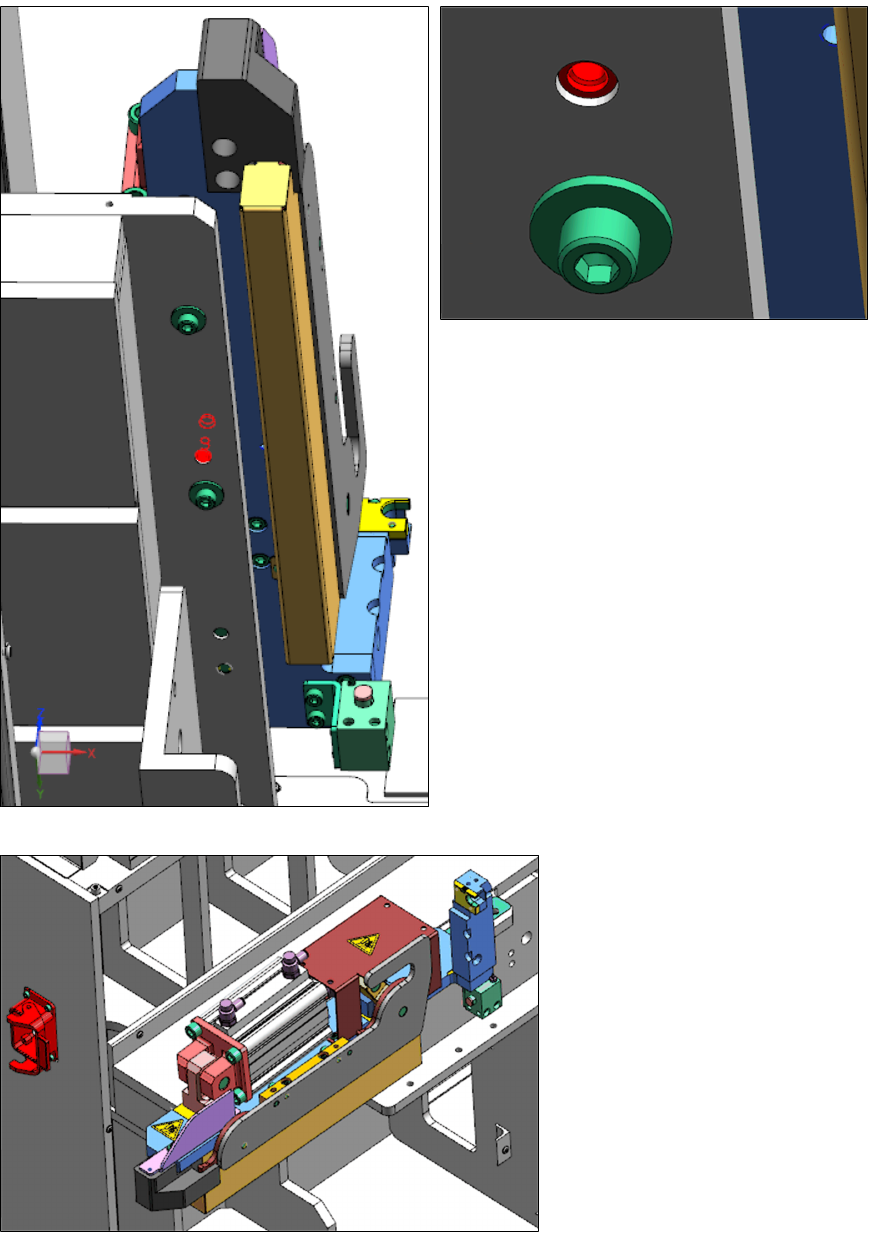

► Knock in the 8x28 dowel, paying attention
to the recommended orientation.
► Tighten the M8 and two M6 screws.
► Replace the safety cover and
tighten the cover-mounting-
screws.
Assembly Instructions E by SIPLACE
Location 2 Upgrade Kit 04/2017
2 Installation of Location 2 Upgrade Kit
2.3 Recommended Installation Steps
21

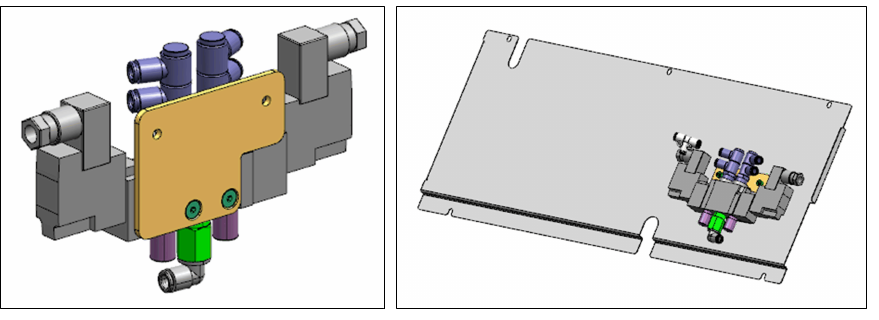

► Secure the following parts together with the M4x8 countersunk screws and the M4x6 cap
screws:
– Cable, COT insert valve control [03106575-xx]
– Valve mounting plate [03109013‑xx]
– Top panel cover 4 [03106625-xx]
2 Installation of Location 2 Upgrade Kit
2.3 Recommended Installation Steps
Assembly Instructions E by SIPLACE
Location 2 Upgrade Kit 04/2017
22

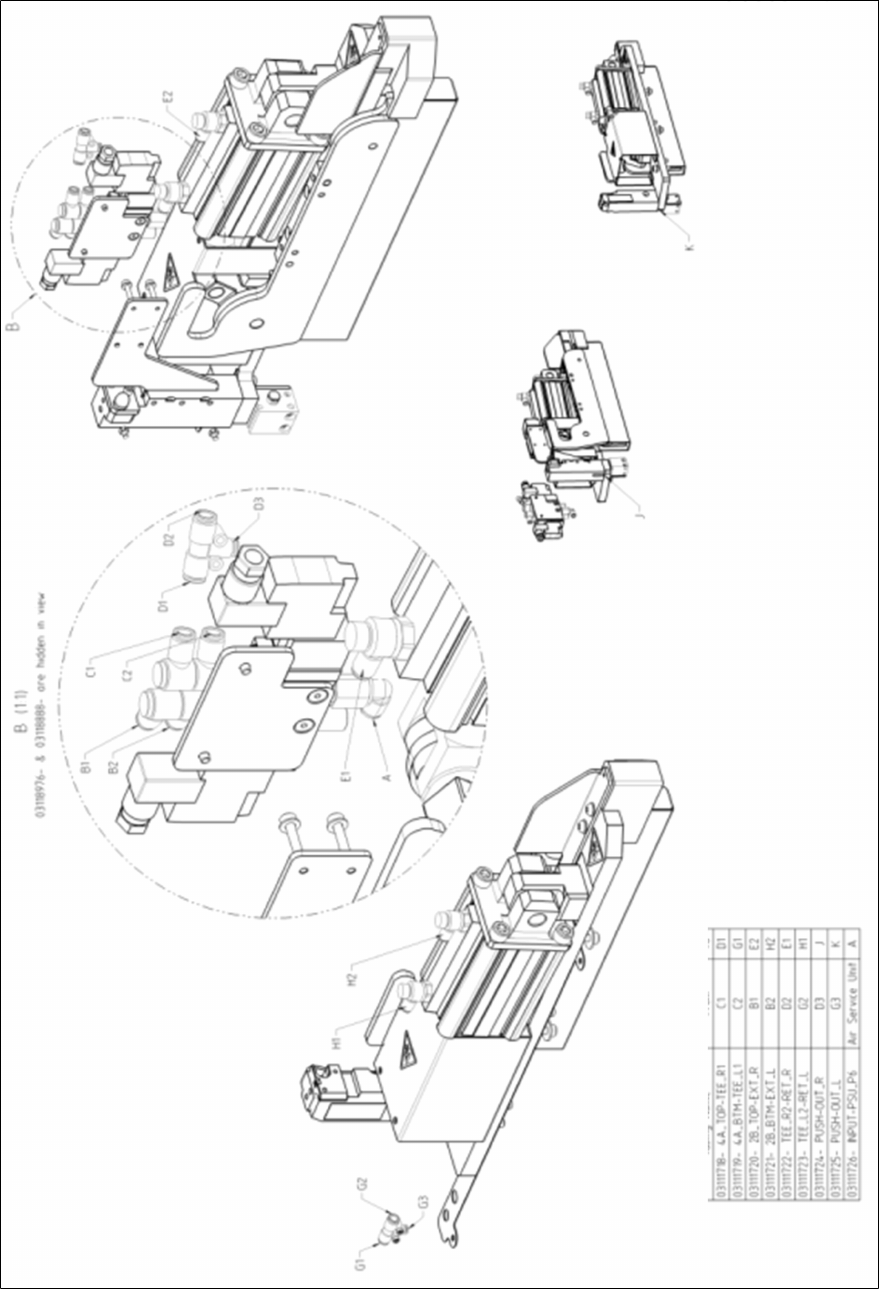

► Install the pneumatic tubes as per drawing [03108761-010203ZD2].
► Connect the tubing INPUT-PSU_P6 [03111726-xx] (as mentioned in point 7) from the air ser-
vice unit to port A (refer to drawing).
► Connect the rest of the pneumatic tubes accordingly.
