2 Installation of Location 2 Upgrade Kit
2.4 Installing the E-series Tape Cutter [03105585-xx]
Assembly Instructions E by SIPLACE
Location 2 Upgrade Kit 04/2017
26
2.4 Installing the E-series Tape Cutter [03105585-xx]
► Place the tape cutter onto the
brackets and slide it into the ma-
chine.
► Align the side holder block blind
hole with the lifting screw hole.
► Fasten the M10x100 screw (1 piece) on each side (left & right) synchronously to lift up the
tape cutter.
Assembly Instructions E by SIPLACE
Location 2 Upgrade Kit 04/2017
2 Installation of Location 2 Upgrade Kit
2.4 Installing the E-series Tape Cutter [03105585-xx]
27

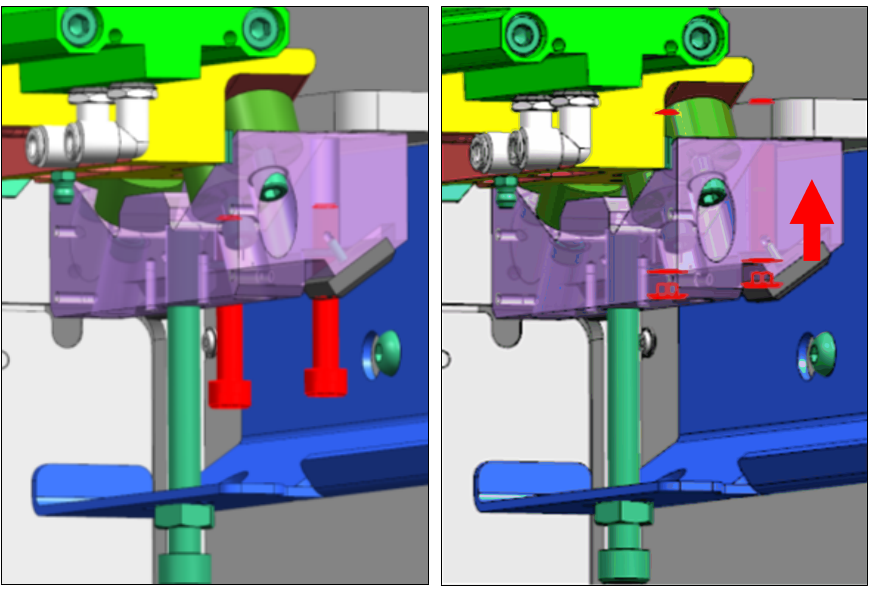

► Fasten the two M8x50 cap screws on each side (left & right) to the machine frame.
► Loosen the M10x100 screw after the tape cutter is securely fastened.
2 Installation of Location 2 Upgrade Kit
2.5 Optional
Assembly Instructions E by SIPLACE
Location 2 Upgrade Kit 04/2017
28
2.5 Optional

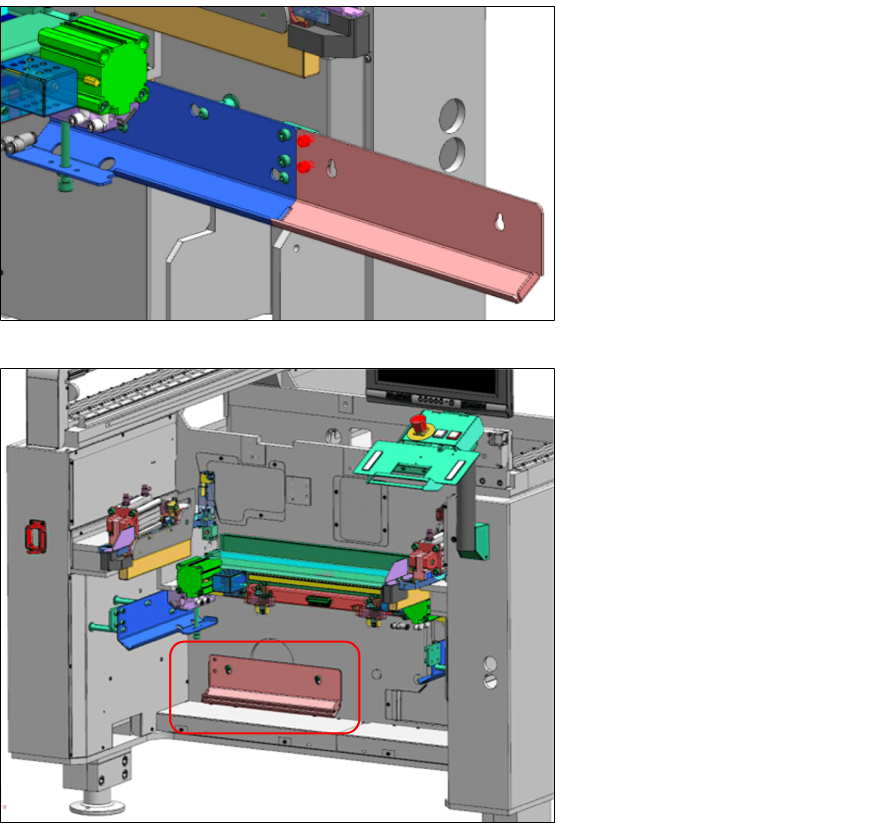

► You can unfasten the four
M8x10, dismantle the Side
bracket B right [03109832-
xx] and the Side bracket B
left [03109810-xx].
► Keep and mount them onto
the machine base frame.
