■ Administrator Functions ◘ Get Movetimes/Optimize Movetimes
PS Series Owner’s Manual 3—51
back
.
Figure 3-43: Error messages don’t display unless you click the red Error
button to open the Alarm dialog. (PS588 Gantry Window shown.)
1c.
Write down the axis (in this case, Y-axis), whether the min-
imum or maximum position has been exceeded (in this
case, the minimum position), and the “Tried” and “Limit”
values (in this case, Tried = 2.982 and Limit = 3).
1d. Click OK.
2. Contact Data I/O Service or your nearest authorized represen-
tative—
3. The item that was being taught when the error occurred (tray,
programmer, reject bin, etc.) needs to be re-taught. See Teach-
ing the Package File starting on page 3-40.
Get Movetimes/Optimize Movetimes
When the Package File and Reference Vision File are taught, you can
optimize the movement of the PNP head in the work envelope by get-
ting movetimes. This command calculates the best PNP path, espe-
cially when some programmers are not used, and considers
programming times versus head travel time.
To get movetimes:
1. Gantry—
1a. On the Gantry Window, click Optimize Movetimes (older versions
read Get Movetimes.
For contact
information see
Contacting Data I/O
on page ix.
Operation ■ Administrator Functions
3—52 Data I/O • 981-0424-002
back
Figure 3-44: Click Get Movetimes (or Optimize Movetimes—some
models) to optimize head travel. (PS588 Gantry Window shown.)
1b. Click Yes when prompted to save positions.
Monitoring Statistics
Occasionally, the system administrator may require statistics for a
group of devices for a given job. This is easily accomplished using
any of three statistics tools described on the next pages:
• TaskLink’s Session Data Logging feature
• AH500’s Statistics Window
• (Optional) Statistical Process Control Software (user-supplied)
In addition, there is our optional Enhanced Statistic Process utility. This
utility graphs the data collected on the PS Machine using Microsoft
Excel spreadsheet (if available on your PC).
The Enhanced Statistic
Process utility is avail-
able with the PS Remote
Monitor Software pack-
age.
■ Administrator Functions ◘ Monitoring Statistics
PS Series Owner’s Manual 3—53
back

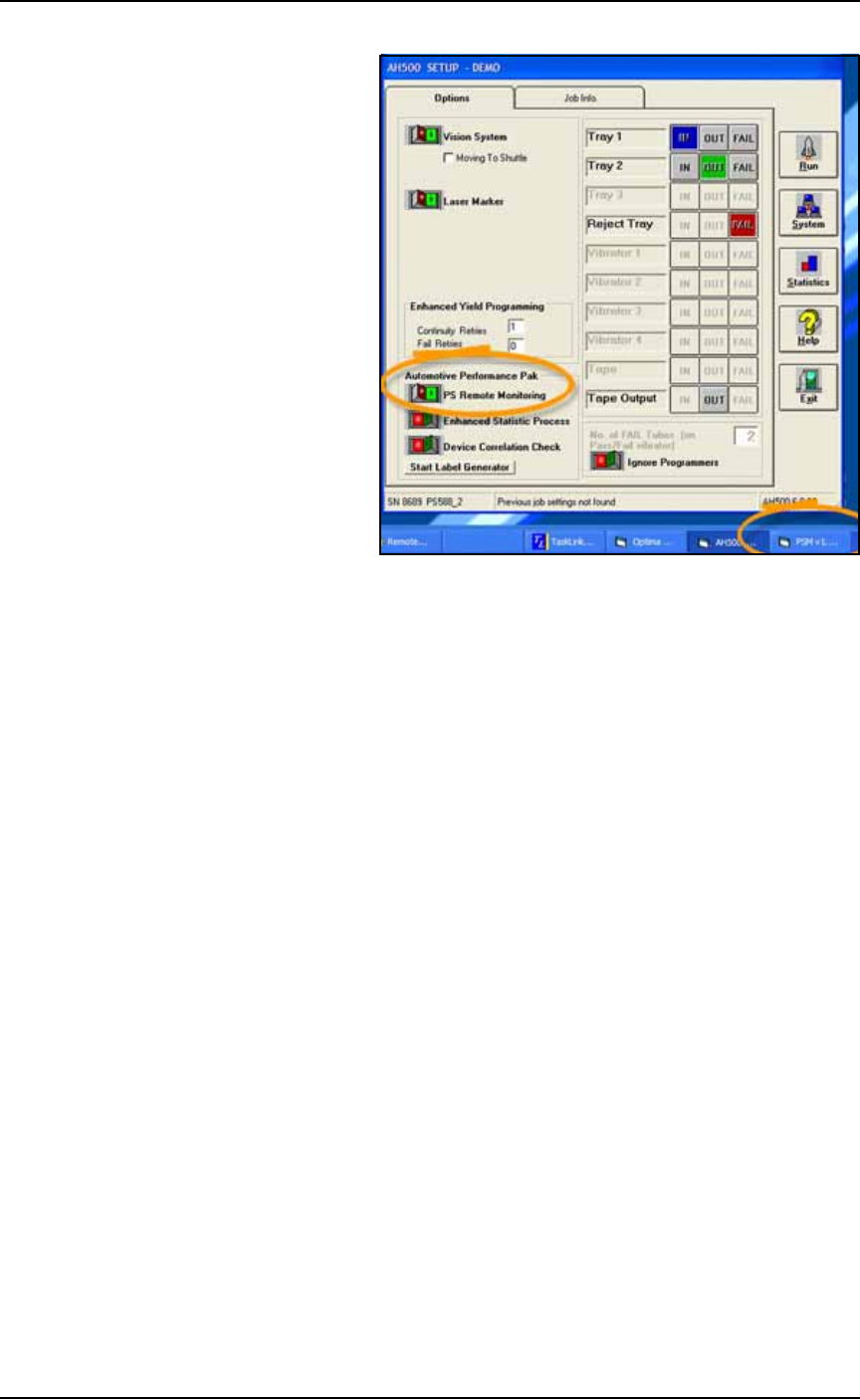

Figure 3-45: PS Remote Monitoring is optional software which
includes the Enhanced Statistic Process utility.
TaskLink Session Data Logging
For complete instructions on enabling and using TaskLink’s Session
Data Logging option, see TaskLink online Help.
AH500 Statistics Window
The PS System statistics include such items as devices programmed
successfully, continuity failures, and verify failures.
To view programming statistics using the AH500 software:
1. At either the Setup Window or at the Run Window, click Statis-
tics.
2. Select either Package Type or Job Statistics from the drop-down
field in the upper left corner.
