Maintenance ■ Workspace, Head and Gantry 4—26 Data I/O • 981-0424 -002 back Figure 4-23: Looking up from the back of the system, the upper end of the upper cable carrier is screwed to the frame. 2c. Check the two screws …
■ Workspace, Head and Gantry ◘ Inspecting Gantry Parts
PS Series Owner’s Manual 4—25
back
Figure 4-21: PNP head sliding retaining clips.
1c. Check gantry wiring harness plug connections and make sure
that they are secure. See Figure 4-22.
Figure 4-22: Three electrical connections on the Vacuum Generator.
Inspecting Gantry Cable Carriers
1. Clean—
1a. Use dry compressed air to remove all foreign material from the
cable carriers.
2. Check—
2a. Visually check that the cables are in good condition, and are not
too loose or too tight.
2b. Check by hand that the upper end of the upper carrier is tight. If
not, tighten the two mounting screws. Cable ties may need to be
cut to move the cables out of the way. See Figure 4-23.
Maintenance ■ Workspace, Head and Gantry
4—26 Data I/O • 981-0424-002
back
Figure 4-23: Looking up from the back of the system, the upper end of
the upper cable carrier is screwed to the frame.
2c. Check the two screws on the lower end of the lower cable carrier
and tighten if necessary. See Figure 4-24.
Figure 4-24: The lower end of the lower cable carrier: A- from above,
and B-from below.
2d. Check the four screws on the center carrier and tighten if neces-
sary. See Figure 4-25.
A
B
■ Workspace, Head and Gantry ◘ Inspecting Gantry Parts
PS Series Owner’s Manual 4—27
back

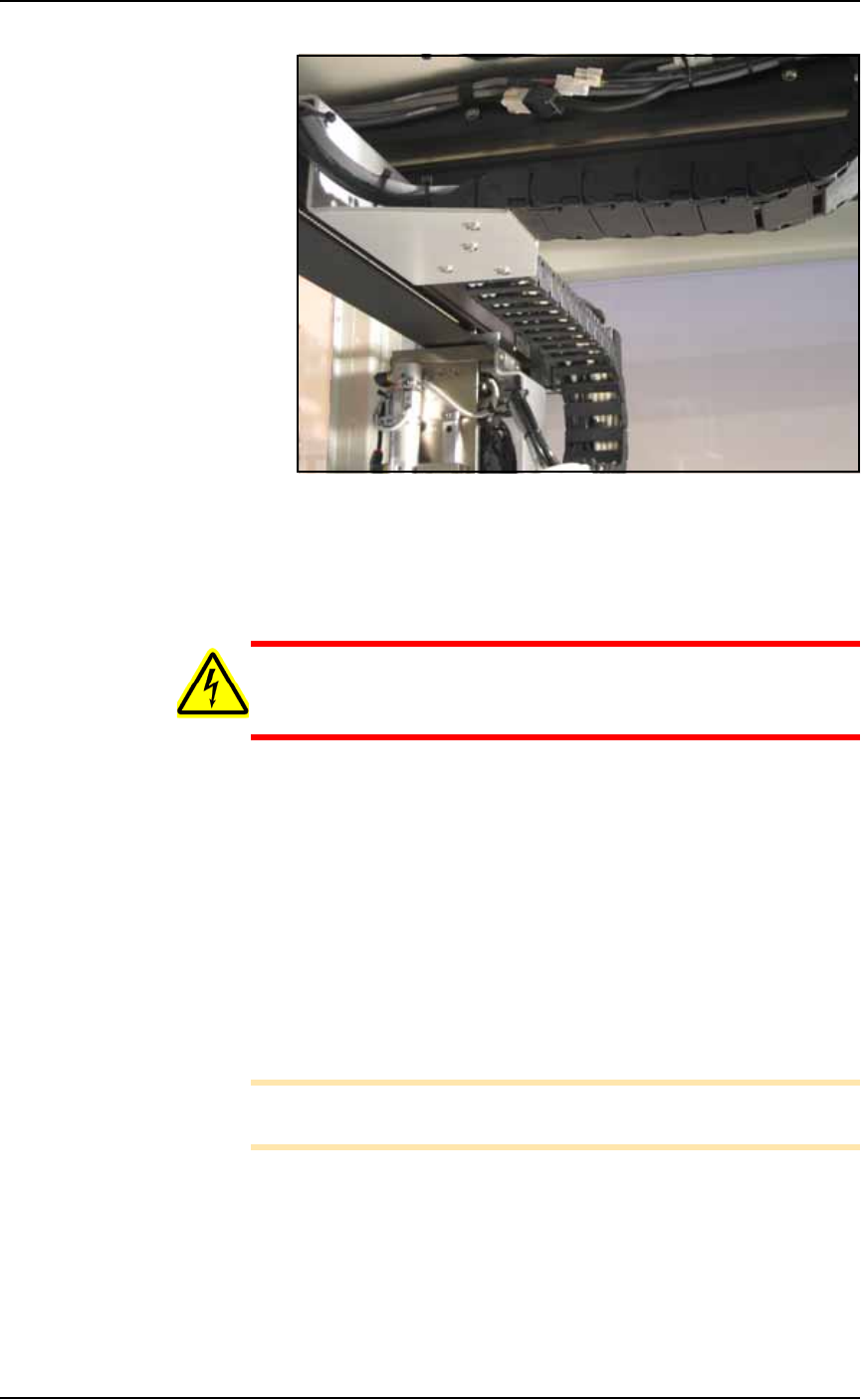

Figure 4-25: The two cable carriers meet at a bracket at the back of
the PS System. There are two screws for each carrier end. View looking
upward from the back of the machine.
Lubricating the Gantry Lead Screw
WARNING: Electric shock hazard. Shut off the PS System power
(Turning Off the System on page 4-4) — switch off the main
power switch before removing the lead screw shields.
1. Preparation—
1a. Shut off the PS System power and ensure the main power switch
is in the OFF position.
1b. Remove the screws that hold the Lead Screw Shield to the gantry
rails.
1c. Remove the shield.
2. Remove the old grease and dirt build up from the lead screw
using shop towels.
3. Apply new grease—
3a. Apply NSK Grease (or equivalent) to the lead screw grease fit-
ting using an MG70 (or equivalent) grease gun. See Figure 4-26.
Note: Too much grease may cause grease to splatter inside the work
envelope. Do not over-apply the grease.
