■ Troubleshooting ◘ Air Pressure Problems
PS Series Owner’s Manual 4—65
back
#39 100 MSEC, TRAYS & TUBES, VACUUM SUCKUP TIME
AT CUPS DURING PICKUP
Trouble with the PNP Head.
Two servo-amplifiers (inside the right access door) control the
head. For more information see Head Error Codes in the on-screen
Help.
The Gantry only moves in one axis or not at all.
Exit the AH500 and switch off machine power. Check the fuses
on the Opto PCB, inside the right access panel.
WARNING: Electric shock hazard. The PCB has a spot on the
near, right corner for testing the fuse. The PS Machine power must
be ON for this test. Use extreme caution when the access panel is
open and the power is on.

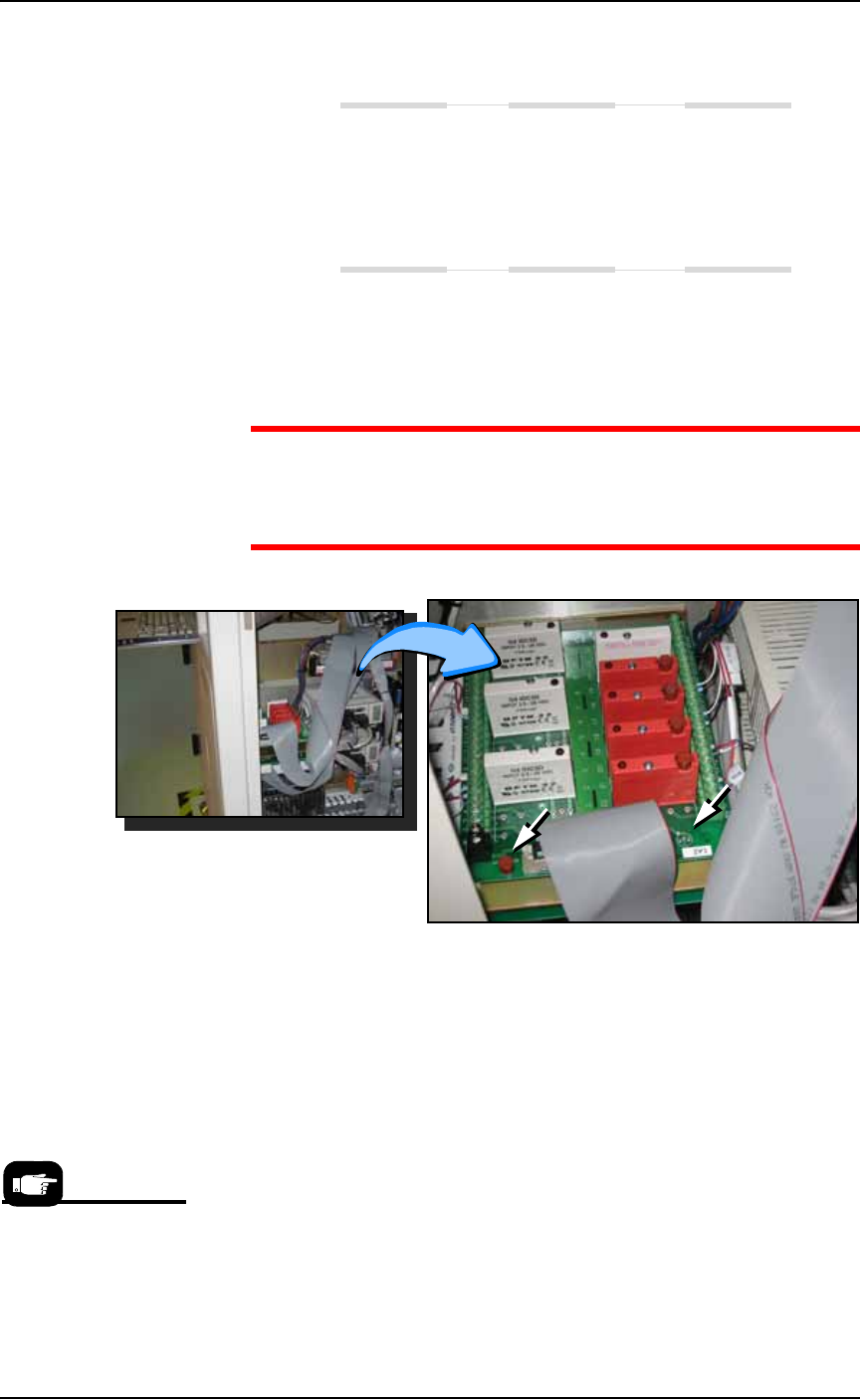

Figure 4-58: The Opto PCB with spare fuse (left arrow) and fuse tester
labeled 1A2. PS388 shown. The location for PS588 is farther toward
the back.
Air Pressure Problems
There is no main air pressure.
Make sure that the main air switch on the Power Panel is in the
ON position.
Check that the air regulator on the Power Panel displays within
the acceptable range: 5.5 ±0.7 Bar (80 ±10 PSI).
If not, replace the filter: See Replacing the Input Air Filter on page
4-15. The digital display on the regulator will be green when air
Note that there is no air
pressure adjustment for
FlashCORE program-
mers on the PS588.
Maintenance ■ Troubleshooting
4—66 Data I/O • 981-0424-002
back
pressure is within the correct range and red when it is out of
range. The regulator has been set at the factory and is not adjust-
able.
There is no or low vacuum on the PNP Probe.
(Models prior to Feb. 2009) Check that the break-away probe tip
is snapped fully into place .
(Models Feb. 2009 or newer) Check that the probe is not loose
and that the o-ring is not destroyed or leaking. Refer to Checking
the Probe Assembly on page 4-12.
Determine if the PNP head probe is clogged. Clean if necessary.
Check the Probe vacuum and blow-off solenoids as follows:
1. At the Gantry Window, click the Actuator tab.
2. In the Actuate box click the Vac On (green). You should be able to
hear the vacuum at the probe and see the red LED light at the
lower solenoid on the right side of the head.
3. Click Vac Off. The lower LED extinguishes.
4. Click Blow-Off On (green). A red LED should light on a solenoid
to the right of the head and just above the Vac solenoid.
5. Click Blow-Off Off (red).
Tube Input and Output Problems
Neither of the tube platforms vibrates.
Make sure that tube input or tube output has been selected on
the Setup Window.
Make sure the vibration controls are rotated clockwise for more
vibration.
Only one tube platform vibrates.
Check the fuse.
For PS Machines delivered prior to 2009 only—
Switch off the PS Machine and check the 2 A 250 V fuse above
the three-wire connector on the back of the I/O Controller. The
input vibrating motor connector is labeled 9 1; the output vibrat-
ing motor connector is labeled 9 2.???
Check the power cable source connection.???
Check the 5A 250 V fuse on the bottom of the vibration control-
ler box (behind the control knobs).
If the fuses are continually being blown, the vibration controller
box may be defective and must be replaced. You can switch the
■ Troubleshooting ◘ Tray Feeder Problems
PS Series Owner’s Manual 4—67
back
wire from the working controller to the defective controller to
determine if this is the case.
The PS Machine is putting the wrong number of devices into the
tubes.
Reset devices per tube in the Gantry Window as follows:
1. At the Setup Window, Options tab, ensure that Input and/or
Output options are set to tubes.
2. Click System > Gantry (you may be prompted to enter your pass-
word). Click the yellow Vib1 label to move the PNP head to the
first position of the input vibrator.

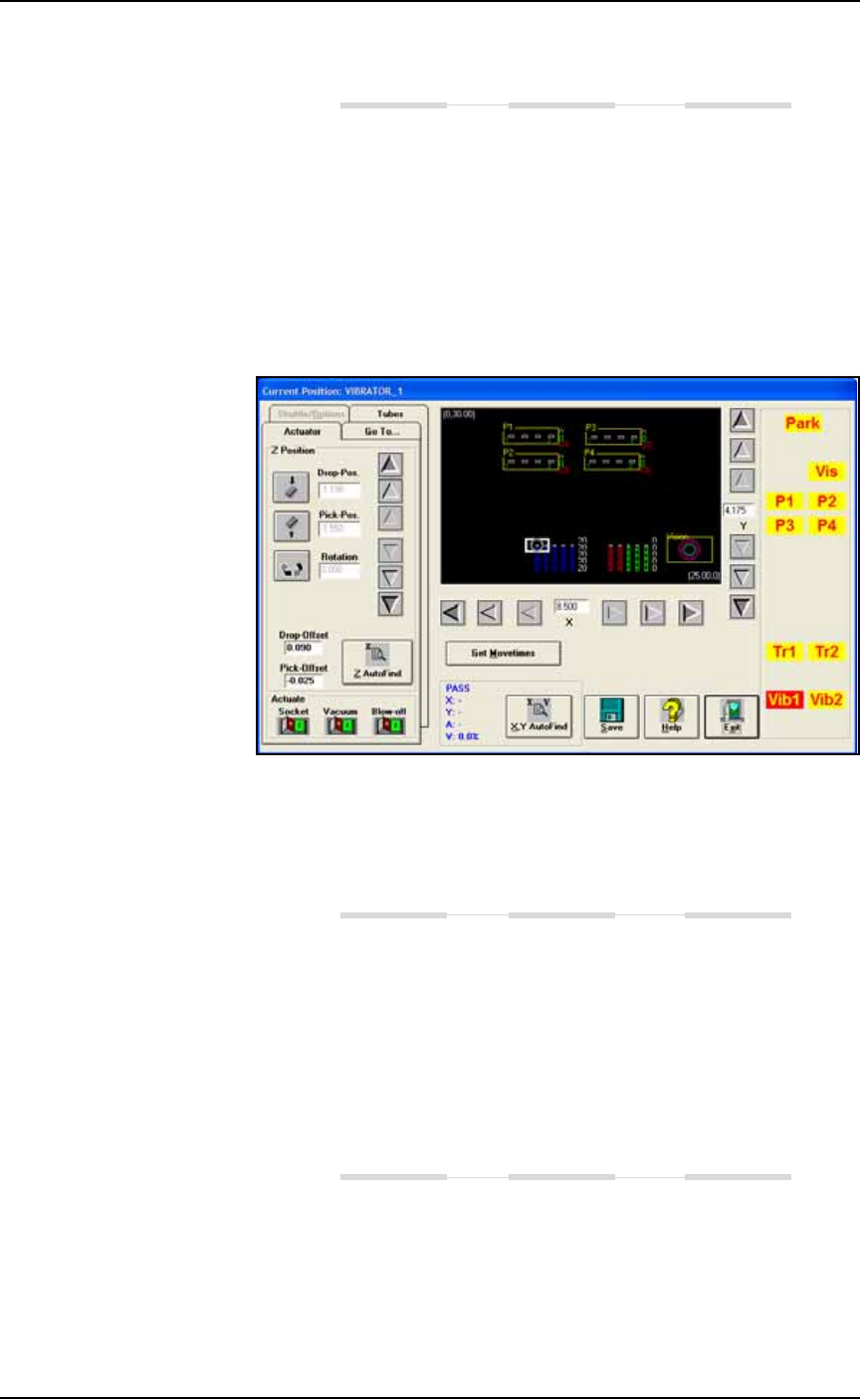

Figure 4-59: The Vib1 label has been clicked. (The placement of your
Vib1 label may be different.)
3. Click the Tubes tab, then enter the correct number of devices
per tube in the Chips/Tube field.
4. Click Save to store the new settings to the Package File.
Tray Feeder Problems
The Run Window indicates a tray is present on the TF20 Tray
Feeder when there is not a tray there, or vice versa.
Navigate to the System > MISC I/O Window and verify that the
Tray Present Sensor = ON.
