■ Precautions for Safe Operation ◘ Precaution List

PS Series Owner’s Manual 1—23

back

Precautions for Safe Operation

The PS Machine has many safety features designed to make the

system safe and efficient to operate. The system can be dangerous if

the safety precautions and features are ignored.

Precaution List

To avoid possible personal injury or damage to the equipment,

observe the following practices:

General Precautions

 Do not use the PS System for any purpose other than its

intended use.

 Do not operate the system if the safety shields are not in their

normal operating positions.

 Do not operate the system when any of the cabinet panels (sheet

metal) are removed.

 Do not operate the PS System unless you have been thoroughly

trained and have read and understand the instructions in this

manual, particularly those that describe the system’s safety fea-

tures (Safety Systems on page 1-4).

 Do not disable or attempt to defeat any of the safety features of

this system. Serious personal injury and equipment damage can

occur if any safety systems are disabled. If you suspect that a

safety feature of the system is damaged or malfunctioning, stop

using the PS System immediately and contact your local

Data I/O Support representative.

 Do not place any part of your body near or in the direct path of

moving parts.

Repair Precautions

 Only qualified personnel trained by Data I/O should install,

maintain, repair, or troubleshoot the PS Systems.

 Do not operate a system while servicing, replacing, or adjusting

any component unless directed to do so in this manual. Make

sure that the system is properly shut down before servicing,

replacing components, or adjusting components.

 Disconnect the external air before servicing pneumatic parts.

Optional Media and Equipment Precautions

 Use extra caution when using the tape input media (feeder), the

tape output media, or the device marking option. The

PS System safety shields do not cover or fully enclose these

modules. It is possible that hands, body parts, or loose clothing

could get caught or pinched in these mechanisms.

 Read and heed the laser vacuum filter disposal requirements

described later in this section (Laser Safety on page 1-24). Always

dispose of any other hazardous or residual by-products of the

production process in accordance with governing laws and reg-

ulations.

WARNING:

Pinch hazard.

The E-Stop

does not shut

off air. On

PS588 only,

Socket Actua-

tors can still

move down

when an

E-Stop is

pushed— and

even when

Safety shields,

are open.

Use caution.

Introduction ■ Laser Safety

1—24 Data I/O • 981-0424-002

back

Laser Safety

The laser marking system, located in the Option Bay attached to the

PS Machine, has been designed in accordance with the following

safety guidelines:

• Operates as a Class 1 laser (CDRH classification).

• Fume extractor traps marking fumes and other by-products of

the laser marking operation.

• System designed to comply with OSHA guarding standards.

• Integrated safety interlocks prevent the laser from firing while

any interlock is activated.

• Refer to and follow laser and safety precautions in ANSI

X136.1-1993, American National Standard for the Safe Use of

Lasers. Procedures listed under the Standard include: appoint-

ment of a Laser Safety Officer, operation of the product in an

area of limited access by trained personnel, servicing of the

equipment only by trained and authorized personnel, and post-

ing of signs warning of potential hazards.

WARNING: Blindness hazard! When servicing, always wear eye

protection when the laser access doors are open. Direct or diffuse

laser radiation can damage eyes. Goggles must block 10.57 to

10.63

m laser radiation. Goggles protect against scattered

energy but not against direct viewing of the laser beam or reflec-

tions from metallic surfaces.

WARNING: Serious burn hazard! Laser radiation, whether direct

or diffuse, can cause serious burns. When servicing, keep hands

and other parts of the body out of the path of the laser beam.

WARNING: Toxic fume hazard! Laser marking generates vapors,

fumes, and particles that may be noxious, toxic, or even fatal. Fol-

low maintenance procedures on the fume extractor. Use proper

ventilation.

■ Laser Safety ◘ Laser Specifications

PS Series Owner’s Manual 1—25

back

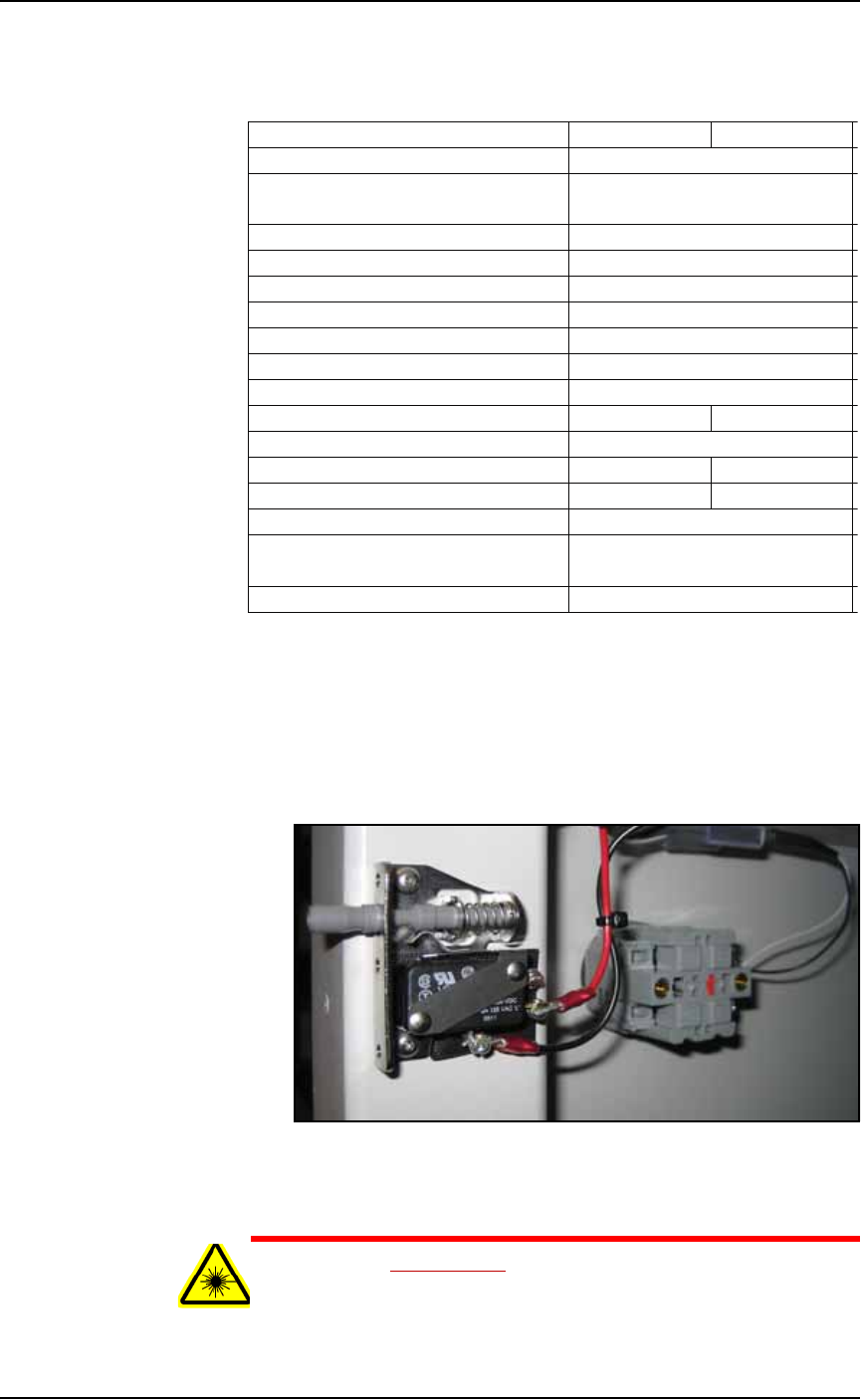

Laser Specifications

Specifications for laser Model 48-1(S) installed in the Option Bay:

Laser Safety Interlocks

The Option Bay has five safety interlocks that prevent the laser from

firing when any cabinet panel on the Option Bay is removed. To

physically enable the laser, all panels must be closed. A laser safety

interlock is shown in Figure 1-13.

Figure 1-13: Laser safety interlock is visible when an access panel is

removed.

WARNING: Safety hazard—Never leave the PS Machine unat-

tended with a safety shield removed.

(S) O f (

Weight

Model 48-1(S) 48-1(S)W

Output Power

Mode Quality

Ellipticity

Rise Time

Beam Diameter

Beam Divergence (full angle)

Wavelength

Power Stability, from cold start (guaranteed)

Polarization

Cooling

Air Water

Heat Load (max)

Flow Rate, Air

250 CFM x 2 N/A

Flow Rate, Water (18-22ºC)

N/A 0.5 GPM

Input Voltage / Current

Dimensions (in)

(mm)

3.5mm

4mR

10.57-10.63μm

Linear (Vertical)

±10

429 x 71 x 107

9 lbs / 4.1 kg

16.9 x 2.8 x 4.2

30 VDC / 7A

10W

300W

TEM

, 95% Purity

<1.2

<150μsec
