■ Applying Power for the First Time ◘ (Optional) Connecting to a Network
PS Series Owner’s Manual 2—5
back

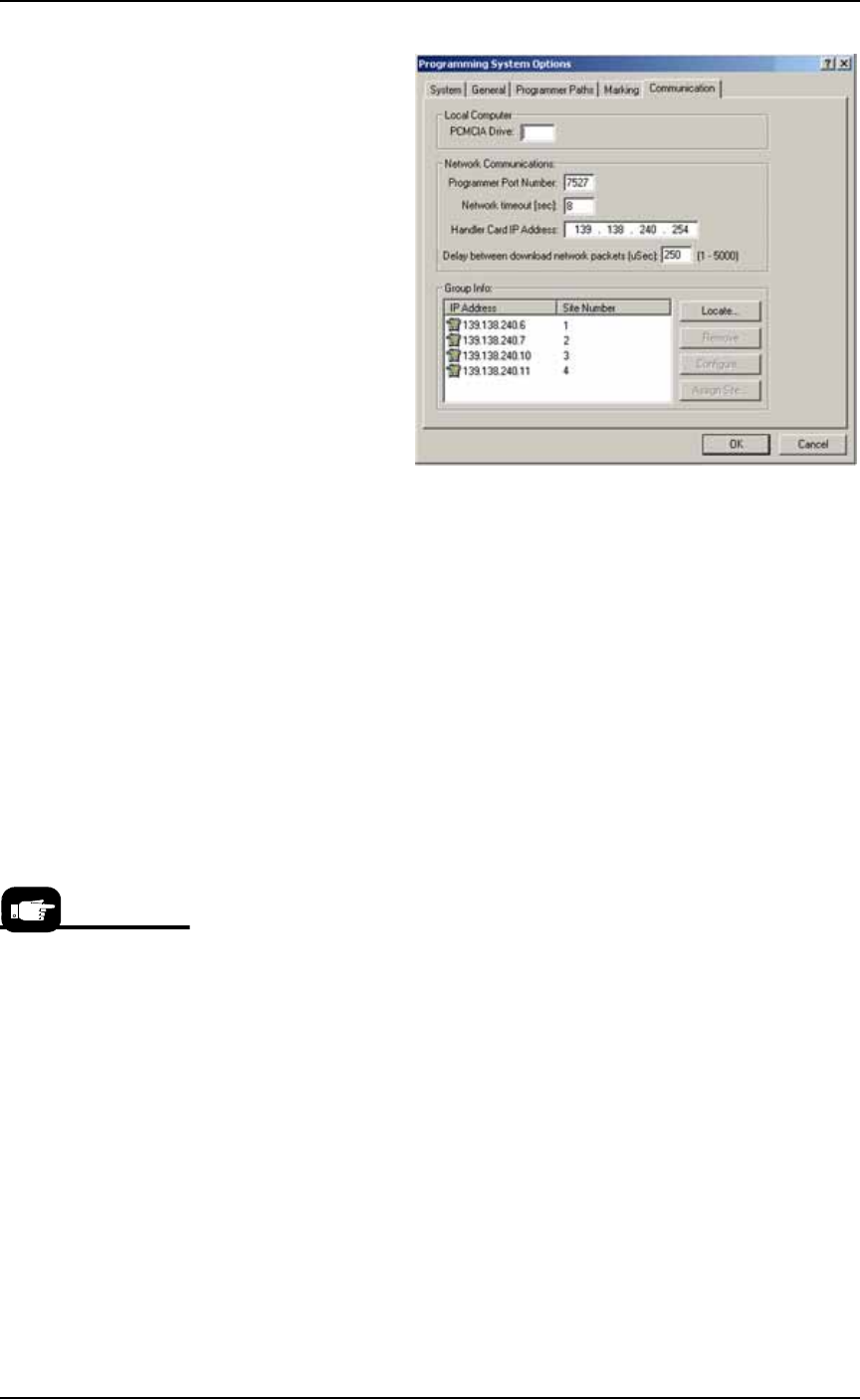

Figure 2-3: TaskLink Communication Tab displays IP Addresses and
site numbers.
Applying Power for the First Time
Before the PS System is turned on for the first time, ensure the fol-
lowing:
The external air line is connected, and the main air valve is open.
All E-Stop buttons are in the released (operating) positions (refer
to Emergency Stop (E-Stop) Buttons on page 1-4 for location).
All safety shields and access panels are closed.
The circuit breakers on the Power Panel on the back of the
PS System are in the ON (UP) position.
The power switch on the Handler Computer is set to the ON
position.
[PS588 Only] (Optional) If you want to change the type of pro-
grammers, see Removing a Programmer on page 4-30.
(Optional) The Socket Adapters required for the job have been
installed on all necessary programmer sites. See Installing Socket
Adapters – FlashCORE on page 3-3 for more information.
[PS588 only] See Installing Socket Adapters – OPTIMA on page 3-6
for more information.
When satisfied, rotate the main power switch on the Power Panel (at
the back of the PS Machine) to the ON position (clockwise).
After power is applied, verify that no obvious failures or electrical
anomalies occur. Verify that the Handler Computer starts properly
and displays a network log-on dialog.
Normal operating pro-
cedure never requires the
Handler Computer
power switch to be
turned off manually.
Setup ■ Setting Up Input and Output Media
2—6 Data I/O • 981-0424-002
back
Note: If electrical or mechanical problems are noted, turn off the
PS System and notify Data I/O Customer Support.
At the Microsoft XP Log-on Window, click the user profile to (usually
labeled MFG to complete the startup procedure).

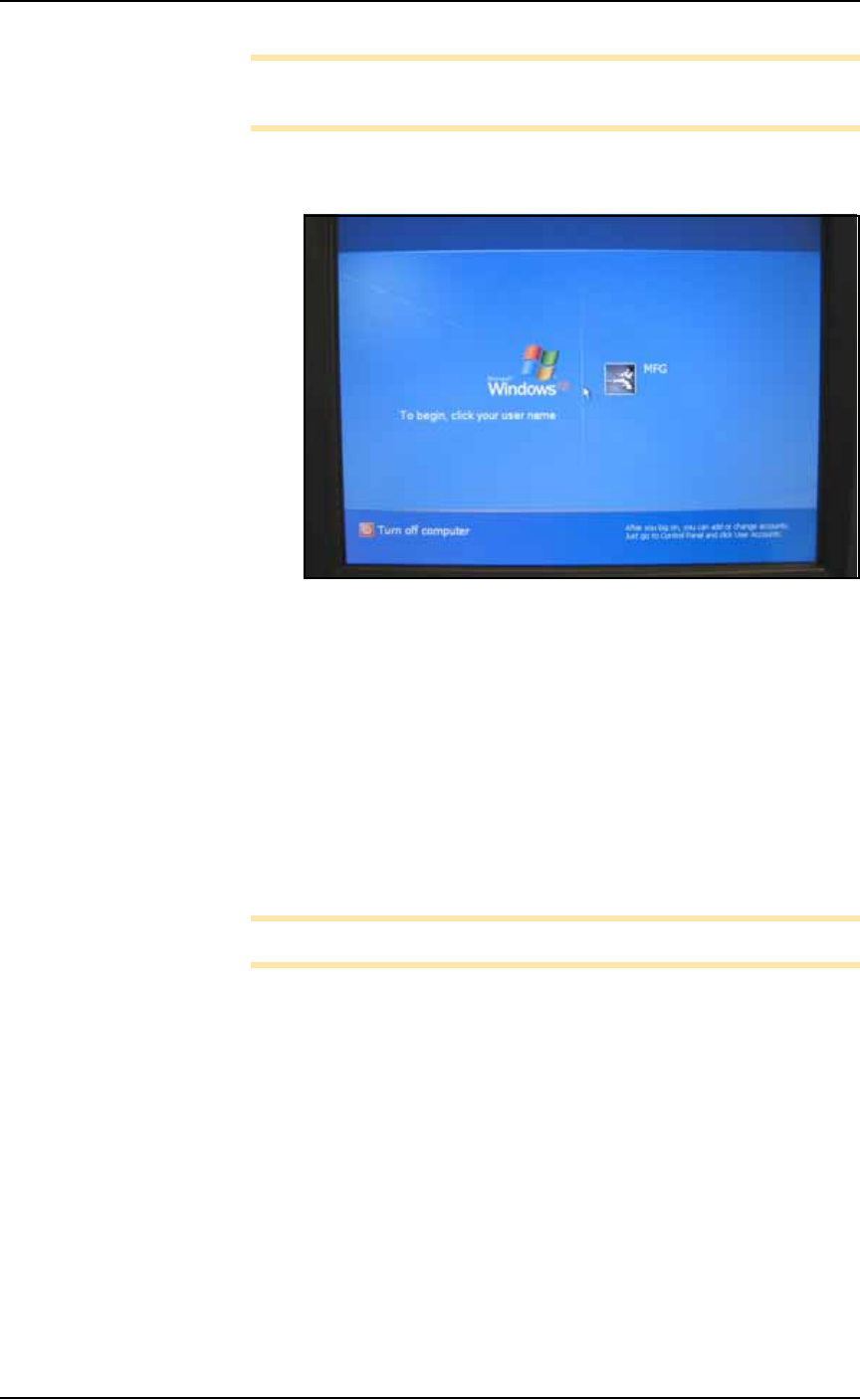

Figure 2-4: Windows XP Log-on Window.
(Optional) To connect to a network see (Optional) Connecting to a Net-
work on page 2-4.
(Optional) Installing Antivirus Software
The PS System has no antivirus software installed from the factory. It
is highly recommend that customers install their own antivirus soft-
ware. The software should be set to run virus scans manually rather
than at a scheduled time unless you are sure that the PS System will
not be running jobs at that time.
Note: An antivirus program may affect performance.
The PS System runs Windows XP Professional operating system.
Follow instructions for your antivirus software. Contact Data I/O
with specific questions.
Setting Up Input and Output Media
There are many options for device input and output. One option for
input and one for output must be set up on the PS Machine for your
target job. Further, the setup must correspond with the current soft-
■ Setting Up Input and Output Media ◘ Setting Up Static Tray Input and Output
PS Series Owner’s Manual 2—7
back
ware, such as Job file, WinAH400.ini file, and printer file. These
input/output media are described in this section:
•Static Tray (below)
• Automatic Tray Feeder
• Tube Input/Output (vibratory)
• Tape Feeder Input
• Tape Output
Setting Up Static Tray Input and Output
The standard configuration for the PS System is static tray input and
static tray output media. The latest tray mounting configuration uses
a spring-loaded thumb screw for holding the tray in place, while the
earlier configuration uses magnetic angle brackets.
Note: Ensure that blank devices are loaded into the tray with the
correct pin 1 orientation. If pin 1 orientation doesn’t match pin 1
on the sockets, the correct rotation must be taught in the Package
file.
Pin 1 on Data I/O sockets is almost always toward the far side of
the adapter (the back of the PS Machine). Some BGAs and PLCCs
are marked.

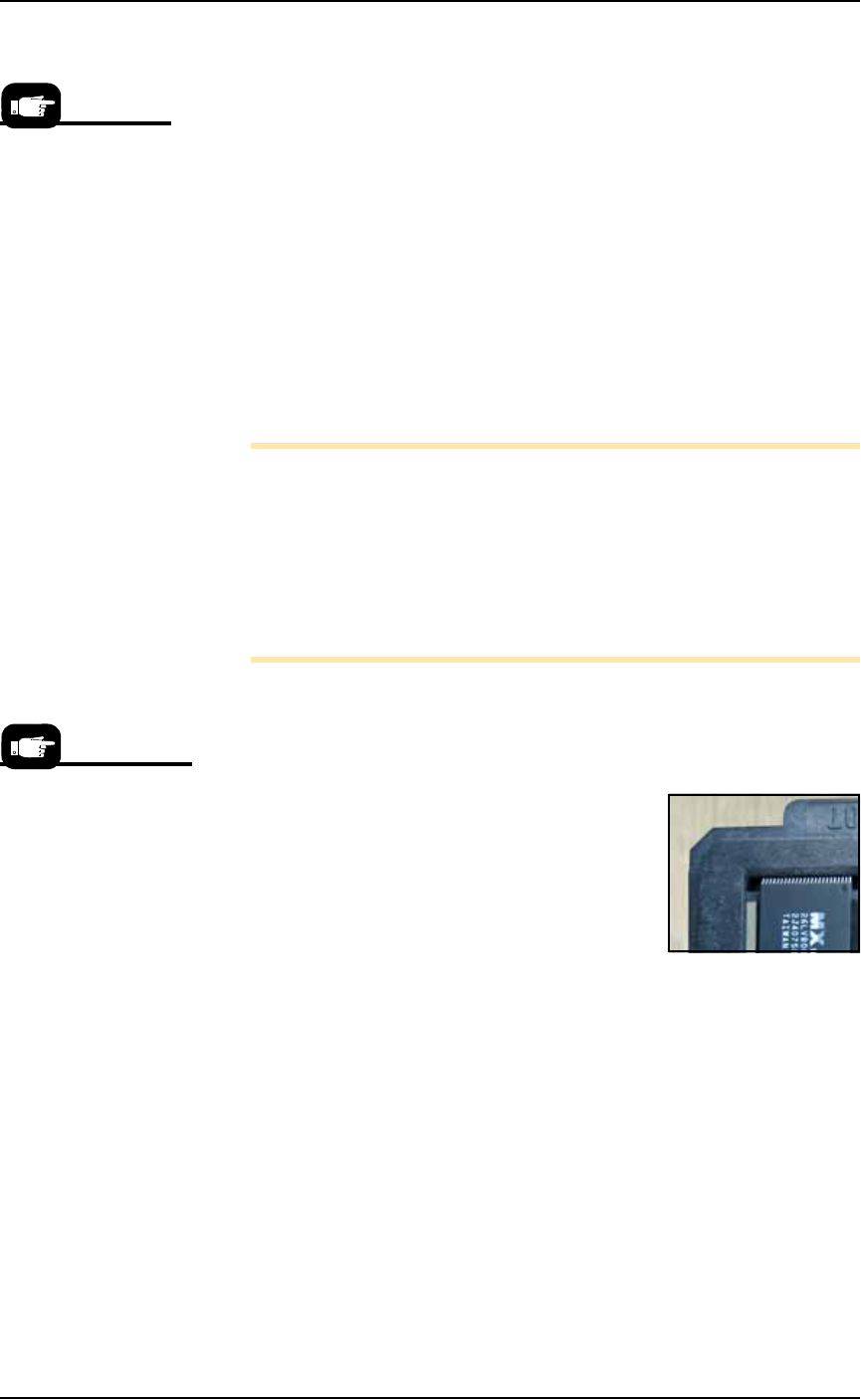

Tray Orientation
IF THE TRAY MOUNT IS ORIENTED with the long side parallel to
the Y-axis:
• The input tray goes on the left. Orient the
trays with the beveled corner to the far
left.
IF THE TRAY MOUNT IS ORIENTED with
the long side parallel to the X-axis:
• The input tray goes nearest to the opera-
tor. Trays can be oriented with the bev-
eled corner on the left or right. However,
with Automatic Tray Feeders it must be to the right.
Static Tray Mount with Thumb Screw
To set up the static Thumb Screw Tray input and output:
1. Preparation—
1a. Ensure the PNP head is parked.
1b. Open the front safety shield.
2. Install the Trays—
2a. Set the tray onto the mounting plate inside the indexing blocks.
2b. Use the thumb screw to secure the tray by rotating it 1/2 revolu-
tion past contact with the tray.
Any output media can
be used with any input
media.
Tray mounts can be ori-
ented along the X-axis
or the Y-axis.
