■ Operator Functions ◘ Running a Job on PS Systems PS Series Owner’s Manual 3—5 back Figure 3-5: R emoving the Socke t Adapt er from the pr ogrammer . (PS388 shown.) 4b. Lift the Socket Adapter up off the dowel pins. Not…
Operation ■ Operator Functions
3—4 Data I/O • 981-0424-002
back

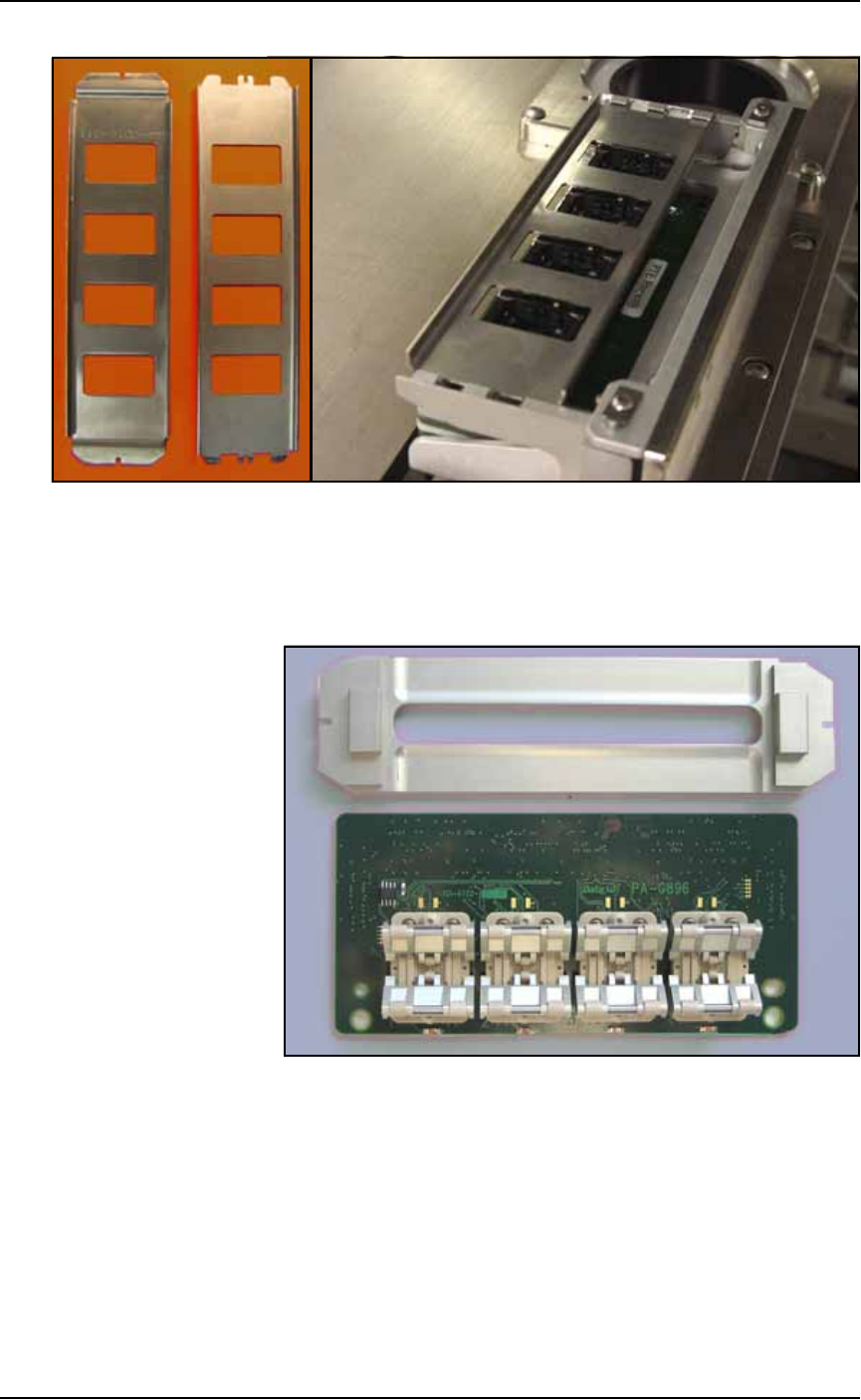

Figure 3-3: [PS588 FlashCORE only] Actuator Plates for Standard
Sockets. Align Actuator Plate Type-A notches with the Actuation
Bracket notches, and then lift up to remove.
3b. [HIC Adapters only] Slide the plate out toward the front of the
PS Machine. See the figure below.
Figure 3-4: Special Actuation Plate for HIC Adapters.
4. Remove the Socket Adapter—
4a. Unscrew the two captive, SHCS with a 4 mm hex key and open
the Adapter Bracket.
Type-B Type-A
■ Operator Functions ◘ Running a Job on PS Systems
PS Series Owner’s Manual 3—5
back

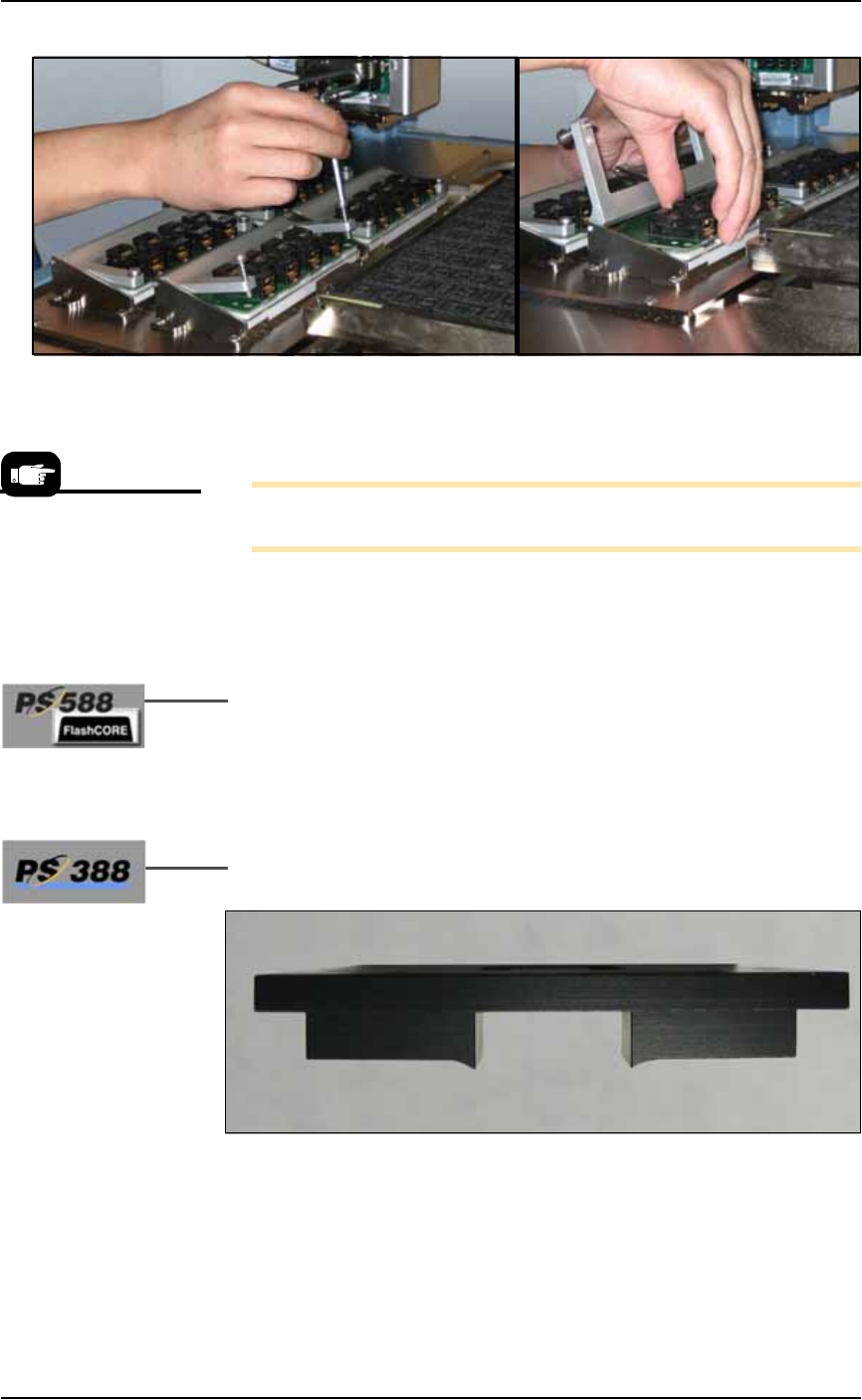

Figure 3-5: Removing the Socket Adapter from the programmer.
(PS388 shown.)
4b. Lift the Socket Adapter up off the dowel pins.
Note: Do not touch the gold contact surfaces on the bottom of the
Socket Adapter.
5. Install the Socket Adapter—
5a. Insert the correct Socket Adapter for your target device, making
sure that it seats on the dowel pins.
5b. Screw in the two screws.
6. [PS588 FlashCORE only] Install the correct Actuator Plate—
6a. Type-A (see Figure 3-3): Install the Actuator Plate by setting it
into the notches on the bracket and sliding back until it snaps
into place.
Type-B: Reinstall the Actuator Plate by placing it into the slot
and sliding it back until it snaps into place.
7. [HIC Socket Adapters only on PS388] Install the correct Socket
Opener for the HIC adapter onto the PNP head.
Figure 3-6: [PS388] Most HIC openers have a radius on the contact
area. Each HIC Socket Adapter may have a its own opener plate.
Matching Socket Adapter part names are on the ends of the opener
plate (not shown here).
Installing the Socket
Adapters and Actuator
Plates can be done later,
after setting media
options in the SETUP Win-
dow.
Operation ■ Operator Functions
3—6 Data I/O • 981-0424-002
back
CAUTION: Collision hazard on PS388. HIC Socket Openers can hit
some standard Socket Adapters. Remove standard Socket
Adapters from all programmers before using HIC Openers.
CAUTION: Collision hazard. On PS288 and PS388, the Socket
Opener can possibly hit some Socket Adapters with large clamp-
ing arms such as the G491. After installing a Socket Opener,
always check clearance at all the Socket Adapters.
8. [PS288, PS388] Adjust the Socket Opener Ribs prior to opera-
tion. See Adjust Socket Opener Ribs on page 3-14.
To restart the same job, click Run in the Run Window.
If starting a new job, at the Run Window, click Exit, click Exit again at
the Setup Window, and Exit again to quit the AH500 software. Then in
TaskLink’s Task Manager dialog. select the desired job and click Run.
Follow the on-screen instructions.
Note: If starting a job that uses Tape Output, pull the red
E-Stop/On button on the taping machine to start it.
Installing Socket Adapters – OPTIMA
To change a Socket Adapter on an OPTIMA/Universal Programmer:
Each TOP (Socket Adapter) is connected to Universal programmer
base connectors which are attached to the work surface of the PS588.
1. If a job is running, click Finish on the Run window and wait for
the PNP head to empty the sockets and move to the park posi-
tion.
2. Remove the existing Socket Adapter by holding the sides of the
case and gently rocking and lifting.
