Page SAMSUNG TECHWIN 6 SM4 3 1 Feeder Base Ass’y - ST NO. LEVEL P ART NO. P ART NAME Q’TY TYPE Old No. Stock Apply Reference 27 J908 33108A REAR_FDR_B ASE_PWR_CABLE _ASSY 1 SM431_FD00 6 28 J90800 840B FDR INPUT EXT CABL …
Page
SAMSUNG TECHWIN
5
SM4
3
1
Feeder Base Ass’y - ST
NO. LEVEL PART NO. PART NAME Q’TY TYPE Old No. Stock Apply Reference
A-1 J90571026A FEEDER_BASE_ASSY-ST 1
1 J91741071A FEEDER_INPUT_EXT_BOARD 2 VER 1.1
2 J91741070B FEEDER_IO_BOARD 2 VER 1.3
3 J90833105A FDR SOL OUTPUT CABLE ASSY 1 SM431_FD003
4 J90833106A FDR SENSOR INPUT CABLE ASSY 1 SM431_FD004
5 J90601051A FEEDER_BASE_BD_ASSY_STD 1
6 J90833109A FDR BASE BD CABLE ASSY, NON-D-C 1 SM431_FD007
7 J91741186A SM431_FEEDER_BASE_BOARD 1
8 J7057213A SIDE CABLE COVER-FB 2
9 J67111148A COUPLER 42 TCP1B10-15A-R8036
10 J1301188 ELBOW FITTING 2 KQ2L04-M5/PL4-M5M/SQL04-M5
11 J60190308A FLAT_HEAD_CROSS_SCREW 22 M3*8_BLACK
12 J6001503038 SOCKET HEAD CAP SCREW 4 M5*30 (BL/Zn)
13 J41031004A SM431_FEEDER_BASE_COVER_PCB 1
14 J70571012A VERTICAL_PLATE 1
15 J70571013A BODY_FEEDER_BASE 1
16 J70571015A TOP_PLATE_S 1
17 J70570262C CAP-TOP PLATE 4
18 J70571016A FB_COVER 2
19 J70571017A FB_SIDE_COVER 4
20 J70511062A BOARD_BRACKET 2
21 J70511063A BOARD_COVER 2
22 J70510110C BOARD BRACKET 2
23 J70510111C BOARD COVER 2
24 J90833103A FRONT FDR IO PWR CABLE ASSY 1 SM431_FD001
25 J90833104A REAR FDR IO PWR CABLE ASSY 1 SM431_FD002
26 J90833107A FRONT_FDR_BASE_PWR_CABLE_ASSY 1 SM431_FD005
Page
SAMSUNG TECHWIN
6
SM4
3
1
Feeder Base Ass’y - ST
NO. LEVEL PART NO. PART NAME Q’TY TYPE Old No. Stock Apply Reference
27 J90833108A REAR_FDR_BASE_PWR_CABLE_ASSY 1 SM431_FD006
28 J90800840B FDR INPUT EXT CABLE ASSY 2 SM_FD005
Page
SAMSUNG TECHWIN
7
SM4
3
1

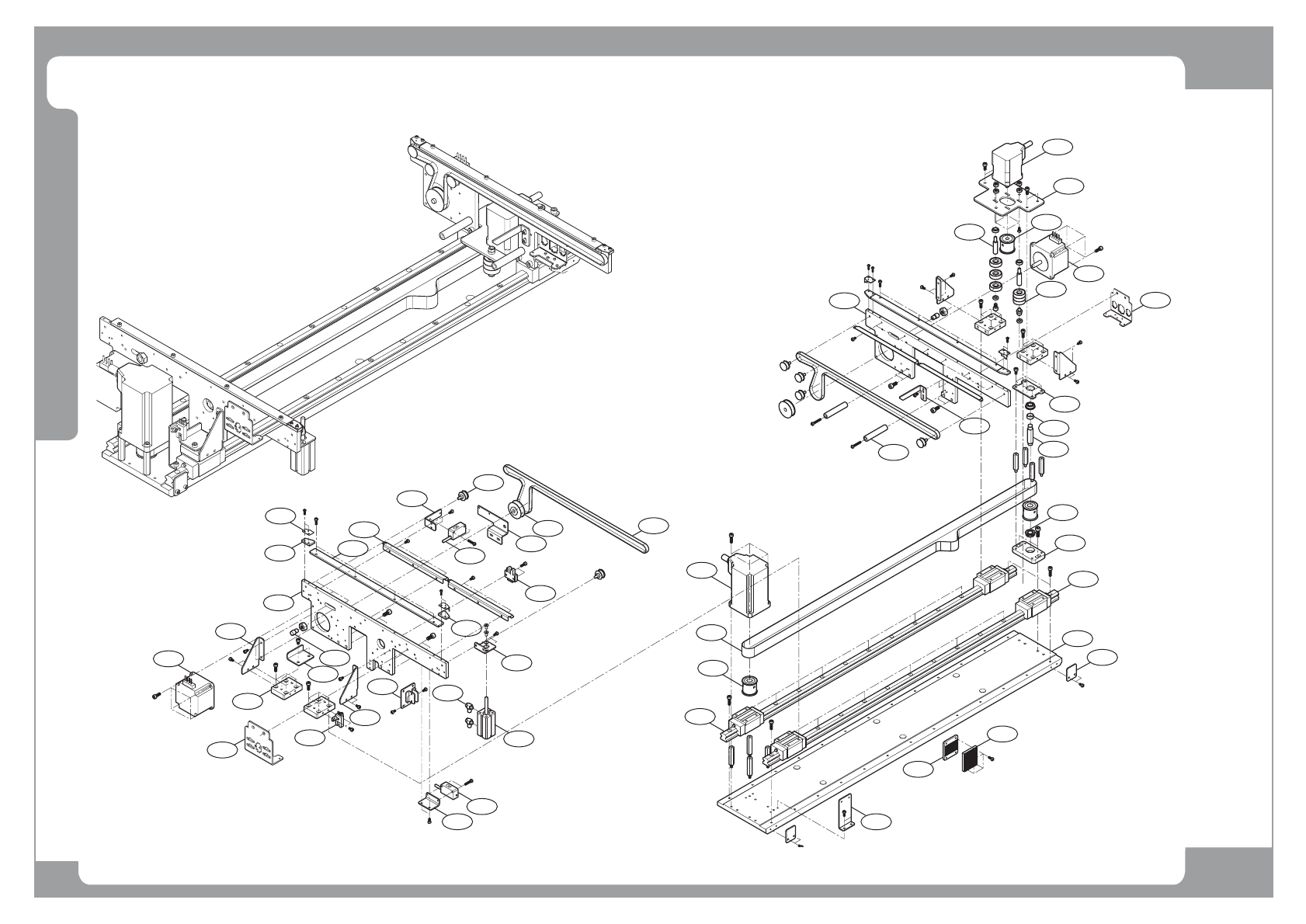

Conveyor Ass’y (1/6)
42
33
47
20
29
32
1
30
22
38
45
18
6
36
34
39
46
3
34
35
25
19
187
5
5
13
28
186
15
31
40
27
6
41
14
185
24
26
9
42
16
44
37
43
23
7
4
8
17
21
11
12
