Page SAMSUNG TECHWIN 25 SM4 3 1 Base Frame Ass’y NO. LEVEL P ART NO. P ART NAME Q’TY TYPE Old No. Stock Apply Reference A-1 J9051 1038A SM431_BASE_F RAME_ASSY_H9 00 1 1 J7051 1043A CONV_DUCT 4 2 J6079000236 S C-RING(SHAF…
Page
SAMSUNG TECHWIN
24
SM4
3
1

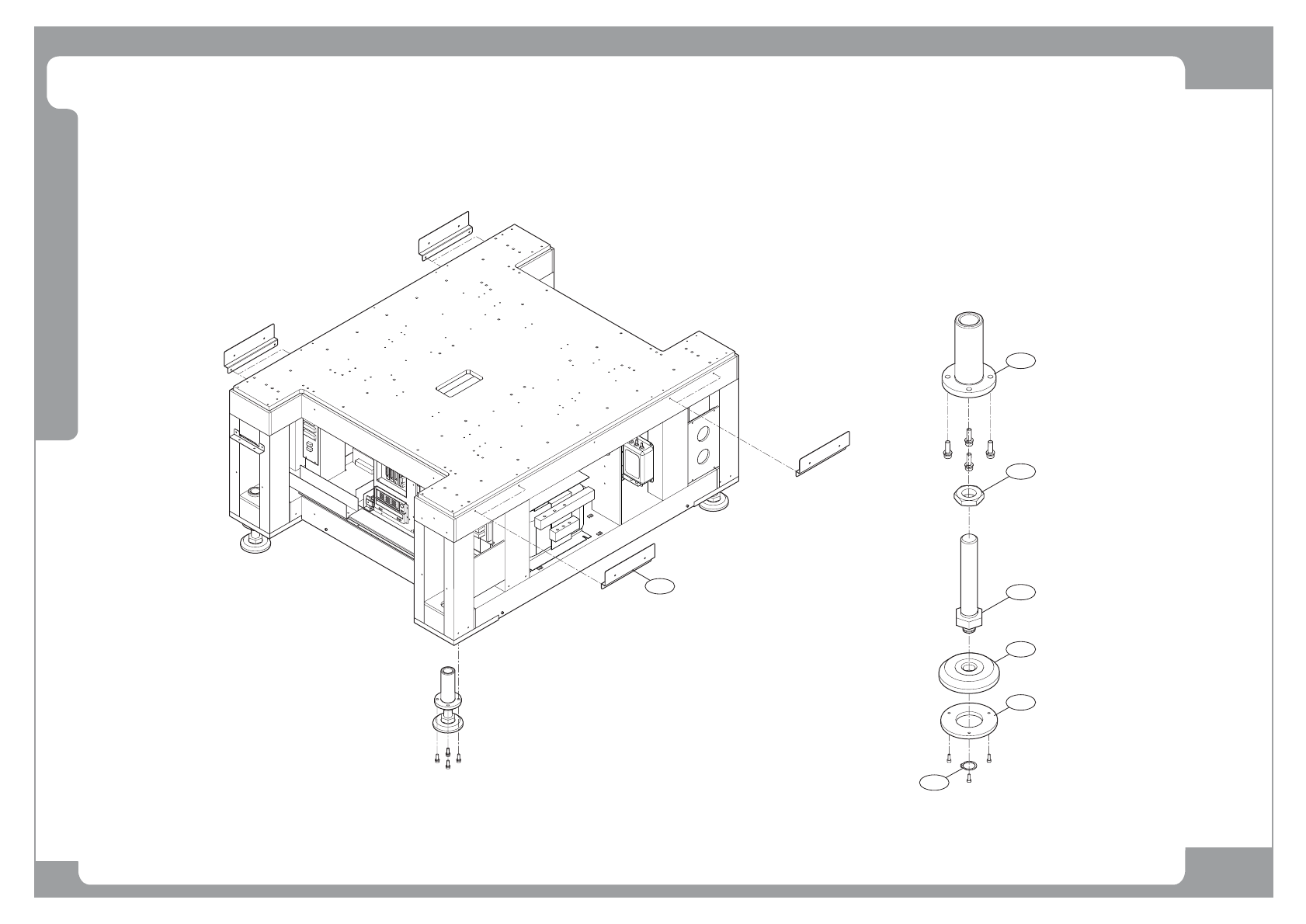

Base Frame Ass’y
1
7
6
5
3
4
2
Page
SAMSUNG TECHWIN
25
SM4
3
1
Base Frame Ass’y
NO. LEVEL PART NO. PART NAME Q’TY TYPE Old No. Stock Apply Reference
A-1 J90511038A SM431_BASE_FRAME_ASSY_H900 1
1 J70511043A CONV_DUCT 4
2 J6079000236S C-RING(SHAFT) 4 DIA22
3 J2100018 NUT-FOOT 4 FK-15
4 J70511014A BOLT_FOOT 4
5 J7351001A CUSHION_FOOT 4
6 J7051008C BASE_FOOT 4 0131-611025-P1
7 J7051010D HOUSING FOOT 4
Page
SAMSUNG TECHWIN
26
SM4
3
1

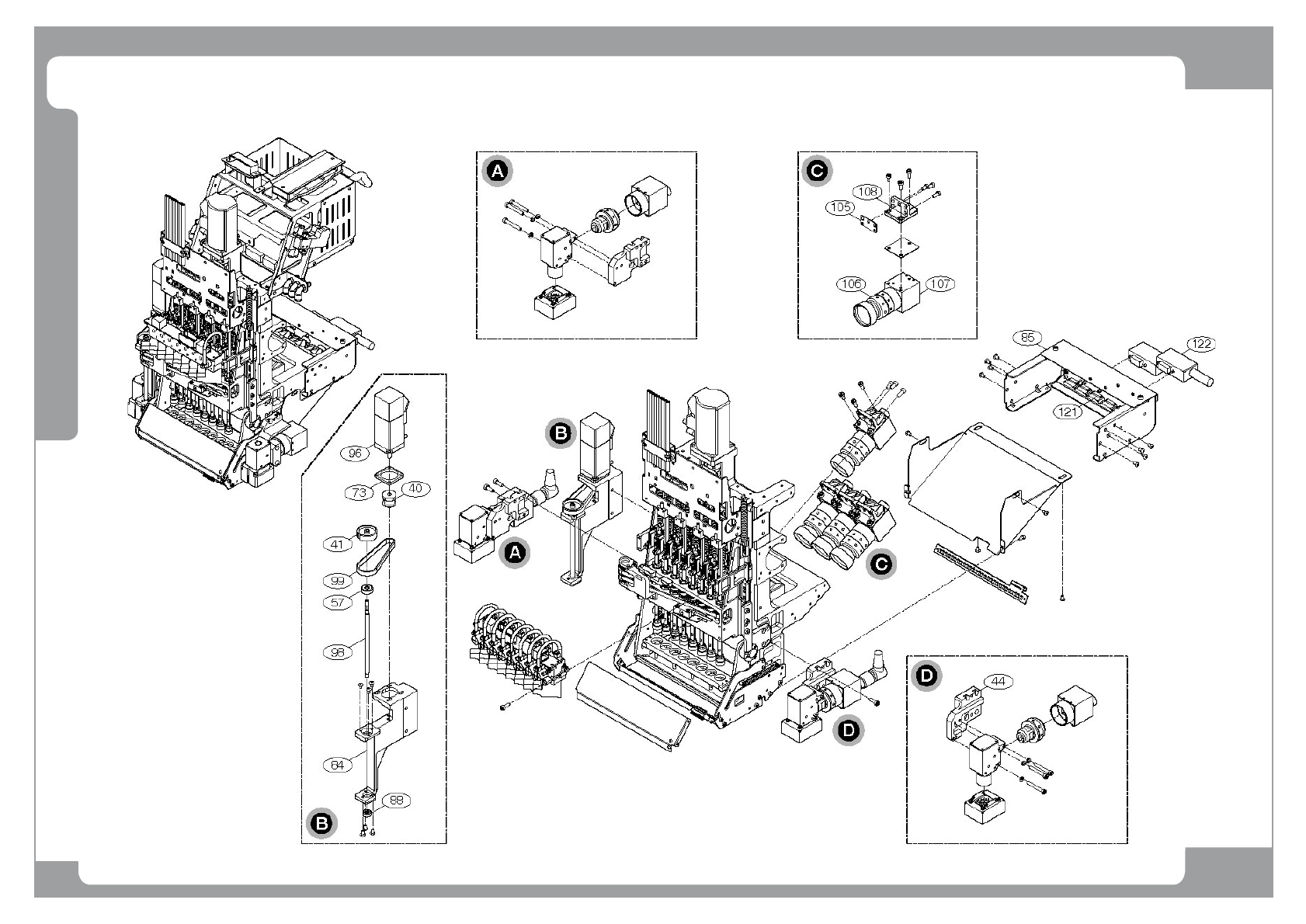

Head Ass’y (1/4)
