Page SAMSUNG TECHWIN 53 SM4 3 1 Window Ass’y NO. LEVEL P ART NO. P ART NAME Q’TY TYPE Old No. Stock Apply Reference A-1 J90521 044A ACRYL_DOOR_STD_ASSY 1 1 J70521238 A TOP_ COVER 1 2 J61 19051A HANDLE 2 AP-2 3 J70521230A…
Page
SAMSUNG TECHWIN
52
SM4
3
1
Window Ass’y
6
8
1
4
5
7
3
2
Page
SAMSUNG TECHWIN
53
SM4
3
1
Window Ass’y
NO. LEVEL PART NO. PART NAME Q’TY TYPE Old No. Stock Apply Reference
A-1 J90521044A ACRYL_DOOR_STD_ASSY 1
1 J70521238A TOP_COVER 1
2 J6119051A HANDLE 2 AP-2
3 J70521230A GAS_SPRING_BRACKET_MOVE 4
4 J70521231A GAS_SPRING_BRACKET_SPACER 4
5 J72521020A ACRYL_COVER 2
6 J70521087A WINDOW_HINGE 4
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Page
SAMSUNG TECHWIN
54
SM4
3
1

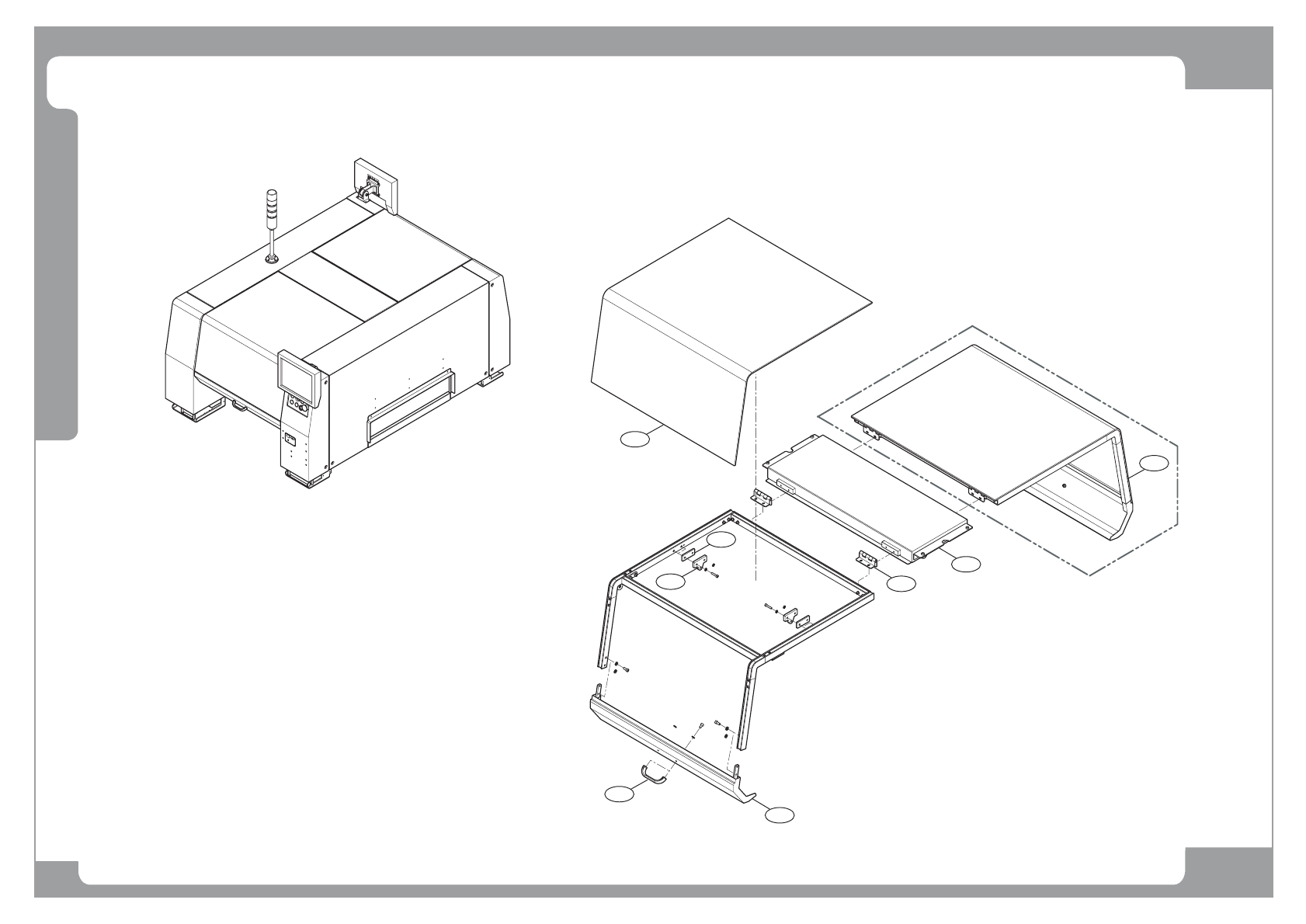

Cover Ass’y (1/3)
6
8
3
5
2
1
4
11
37
12
10
10
9
A
E
D
B
C
