Page SAMSUNG TECHWIN 92 SM471 E lectric Device Ass’y (2/4)
Page
SAMSUNG TECHWIN
91
SM471
Electric Device Ass’y (1/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J67091014A REGULATOR AR08-T2-D0M0-J346A 1
2 J6712008A PLUG [PT 1/8] 1
3 J32041001A PRESSURE_SENSOR PSA-1(RC1/8) 1
4 J6711147A STRAIGHT FITTING KQ2H04-M5/SQL04-M5-W 1
5 FC09-001465A BRACKET-AIR F SMU 1
6 J67111183A ELBOW_MINI_FITTING SCL04-01 1
7 J61191172A METER GZ46-K-01-C1 1
8 J61191167A JOINT KQ2F04-01 1
9 J1301187 ELBOW FITTING PL12-04/SQL12-04S-W 2
10 J67090012B REGULATOR 1
11 J90831067B MAIN_SWITCH_TB2_CABLE_ASSY 1
12 J90831059C KEY_SWITCH 1
13 FC09-001672A BRACKET-BKT F POWER 1
14 J6309025 FAN[PFC120(FOR 120? FAN)] 2
15 FC15-000943B COVER-LOWER_SIDE_2_B 1 FC15-000943A
16 J3105010A COOLING FAN[4715MS-22T-B50] 2
Page
SAMSUNG TECHWIN
92
SM471

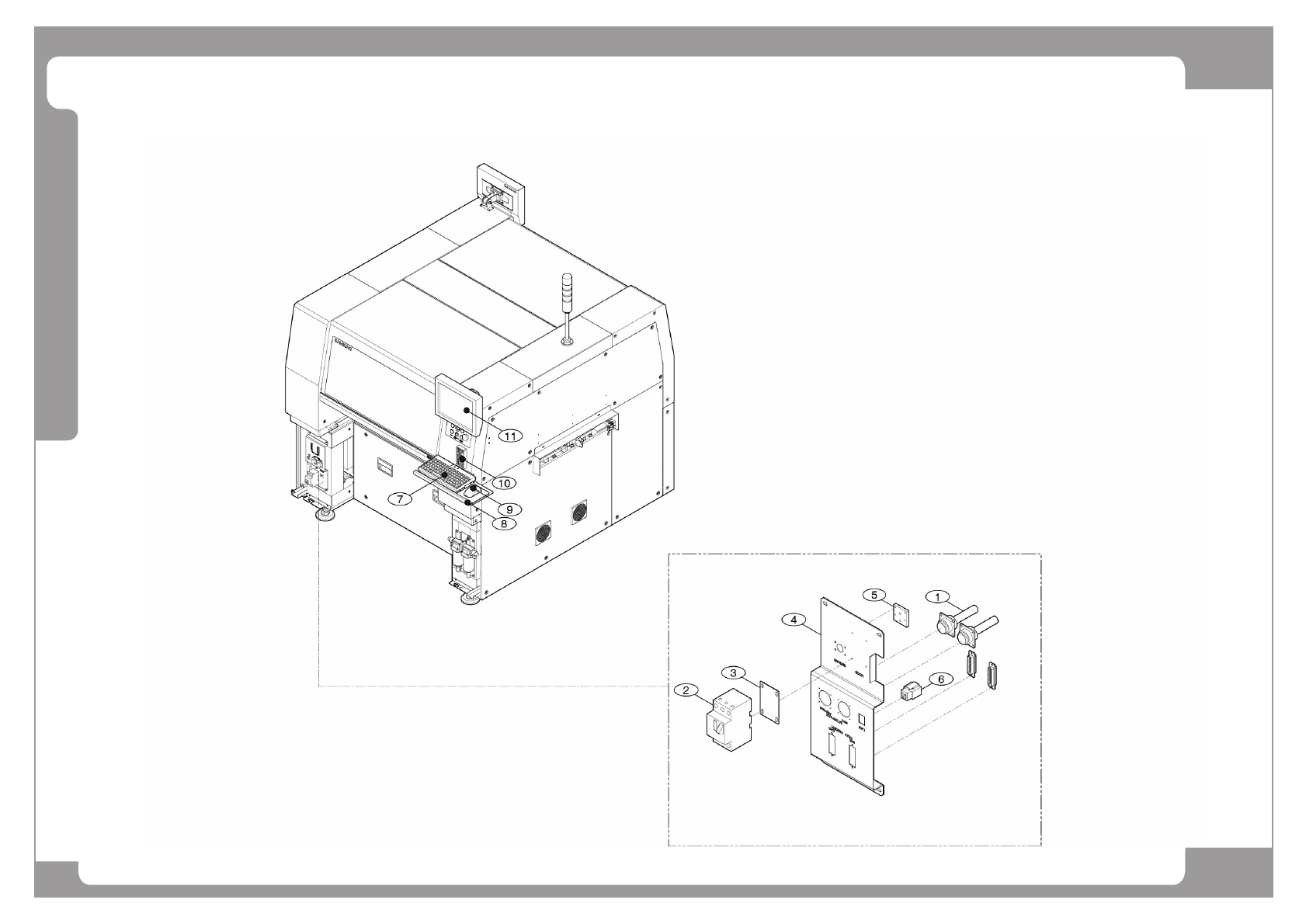

Electric Device Ass’y (2/4)
Page
SAMSUNG TECHWIN
93
SM471
Electric Device Ass’y (2/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-003542A CABLE ASSY INLINE_IN_OUT 1
2 J36031004A MAIN_SW_CANCLE 1
3 J3716070A GV2_AF 1
4 J70521076B POWER_PANEL 1
5 AM03-003573A LAN_PORT 1
6 J7152027A GROUND TERMINAL [J7152027A] 1
7
J52011002A MINI_KEYBOARD 5510UH
2
8
J7452038A MOUSE PAD - OPTICAL[J7452038A]
2
9
J52021011A OPTICAL_MOUSE
2
10
J90601023B TEACHING_BOX
1
11
CD06-000004 LCD_MONITOR_15
2 J53011032A
