Page SAMSUNG TECHWIN 11 7 SM471 C onveyor Board Interface (3/5) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-0043 82A CABLE ASSY -ANC_SENSOR_F RONT_EXT 1 SM41 1_CV109 2 J90831 135A …
Page
SAMSUNG TECHWIN
116
SM471

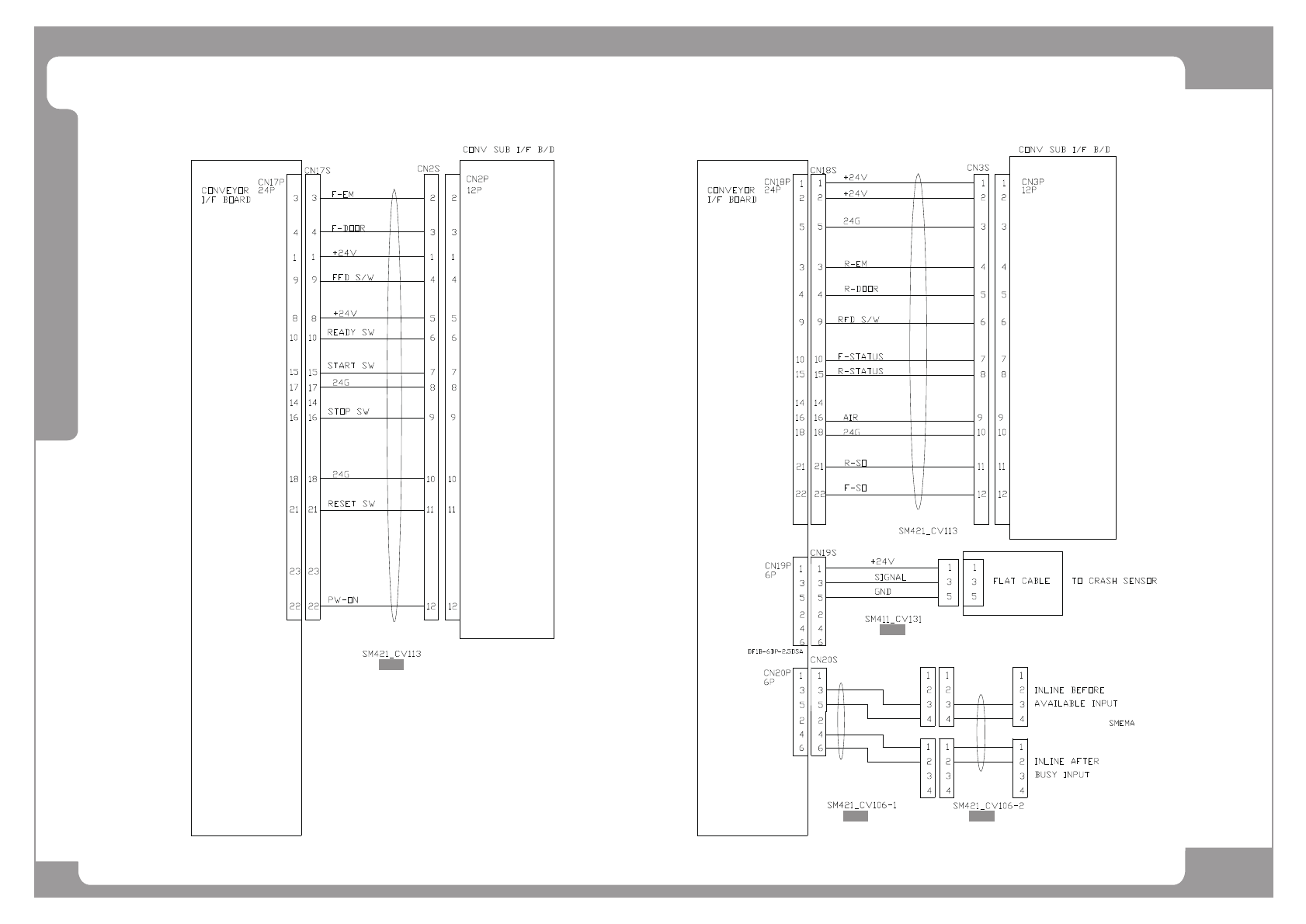

Conveyor Board Interface (3/5)
[1 ] [2 ]
[3 ] [4 ]
[2 ]
P
Page
SAMSUNG TECHWIN
117
SM471
Conveyor Board Interface (3/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-004382A CABLE ASSY-ANC_SENSOR_FRONT_EXT 1 SM411_CV109
2 J90831135A ANC_SENSOR_CABLE_ASSY SM33-CV010 1 SM33-CV010
3 AM03-004385A CABLE ASSY-ANC_SENSOR_FRONT_EXT1 1 SM411_CV109-1
4 AM03-004565A CABLE ASSY-ANC-SENSOR REAR EXT 1 SM411_CV109-2
Page
SAMSUNG TECHWIN
118
SM471
Conveyor Board Interface (4/5)
[1 ]
[2 ]
[3 ] [4 ]
