Page SAMSUNG TECHWIN 120 SM471 C onveyor Board Interface (5/5) [1 ] [8 ] [9 ] [2 ] [4 ] [5 ] [3 ] [ 10] [ 11] [7 ] [6 ]
Page
SAMSUNG TECHWIN
119
SM471
Conveyor Board Interface (4/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-003543A CABLE ASSY-CONV_SW_INPUT1_2 2 SM421_CV113
2 AM03-004411A CABLE ASSY-CRASH_SENSOR_IF 1 SM411_CV131
3 AM03-003541A CABLE ASSY-INLINE_IN-OUT_CVIF 1 SM421_CV106-1
4 AM03-003542A CABLE ASSY-INLINE_IN-OUT 1 SM421_CV106-2
Page
SAMSUNG TECHWIN
120
SM471

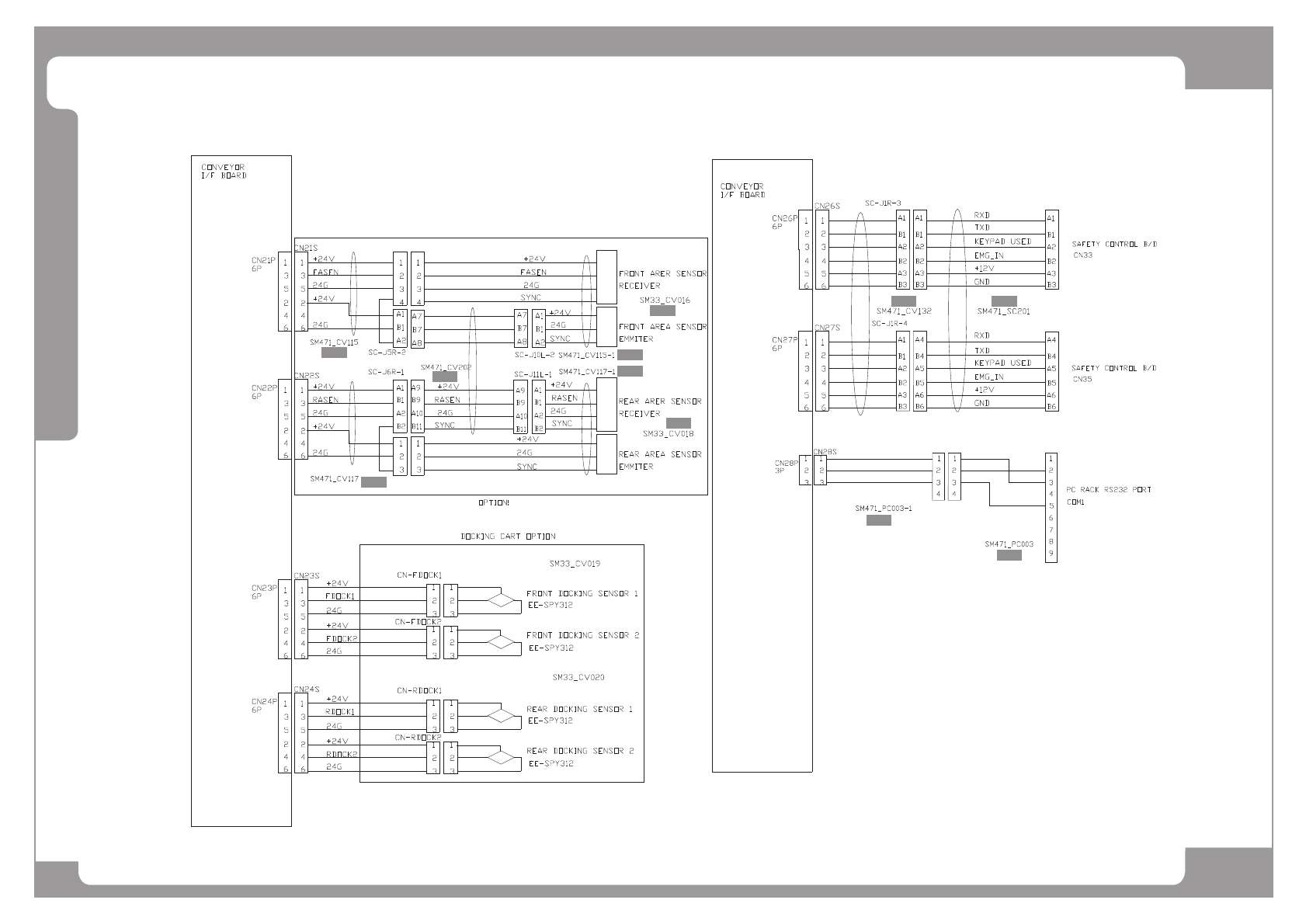

Conveyor Board Interface (5/5)
[1 ]
[8 ] [9 ]
[2 ]
[4 ]
[5 ]
[3 ]
[10]
[11]
[7 ]
[6 ]
Page
SAMSUNG TECHWIN
121
SM471
Conveyor Board Interface (5/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005438A CABLE ASSY-F_AREA_SENSOR_J5R 1 SM471_CV115
2 AM03-005447A CABLE ASSY-R_AREA_AIR_SNS_SUB_J6R-J11R 1 SM471_CV202
3 J90831139A FRONT_AREA_SENSOR_CABLE_ASSY SM33-CV016 1 SM33-CV016
4 AM03-005440A CABLE ASSY-F_AREA_SENSOR_J10L 1 SM471_CV115-1
5 AM03-005444A CABLE ASSY-REAR_AREA_SENSOR_J11R 1 SM471_CV117-1
6 J90831141A REAR_AREA_SENSOR_CABLE_ASSY SM33-CV018 1 SM33-CV018
7 AM03-005442A CABLE ASSY-REAR_AREA_SENSOR_J6R 1 SM471_CV117
8 AM03-005450A CABLE ASSY-T_BOX_HOST_J1R 1 SM471_CV132
9 AM03-005389A CABLE ASSY-BD_PW_SC_T-BOX_J1R 1 SM471_SC201
10 AM03-005705A CABLE ASSY-RS232_SERIAL-EXT 1 SM471-PC003-1
11 AM03-005704A CABLE ASSY-RS232_SERIAL 1 SM471-PC003
