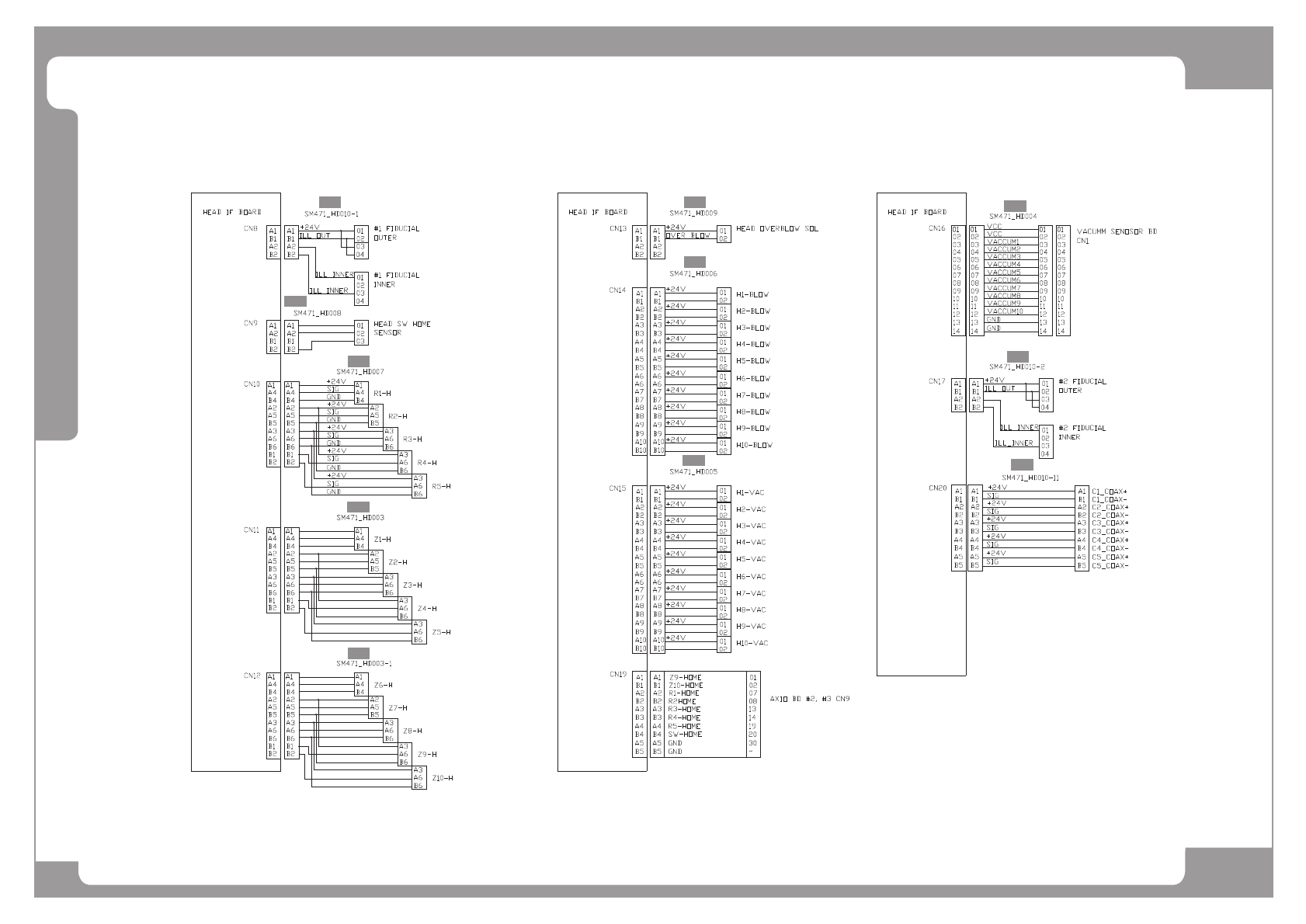

Head IF Board (2/2)
^8`
^4`
^5`
^7`
^6`
^9`
^:`
^;`
^<`
^43`
^44`
Page
SAMSUNG TECHWIN
129
SM471
Head IF Board (2/2)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005598A CABLE ASSY-FLY_COAXIAL 1 SM471_HD010-11
2 AM03-005582A CABLE ASSY-R_HOME_SENSOR 1 SM471-HD007
3 AM03-005580A CABLE ASSY-Z1-Z5_HOME_SEN 1 SM471-HD003
4 AM03-005581A CABLE ASSY-Z6-Z10_HOME_SEN 1 SM471-HD003-1
5 AM03-005587A CABLE ASSY-HEAD_OVER_BLOW_SOL 1 SM471_HD009
6 AM03-005586A CABLE ASSY-HEAD_BLOW_SOL 1 SM471-HD006
7 AM03-005585A CABLE ASSY-HEAD_VACUUM_SOL 1 SM471-HD005
8 AM03-005584A CABLE ASSY-HEAD_VAC_SENSOR 1 SM471-HD004
9 AM03-005589A CABLE ASSY-FID2_COAX 1 SM471_HD010-2
10 AM03-005598A CABLE ASSY-FLY_COAXIAL 1 SM471_HD010-11
Page
SAMSUNG TECHWIN
130
SM471

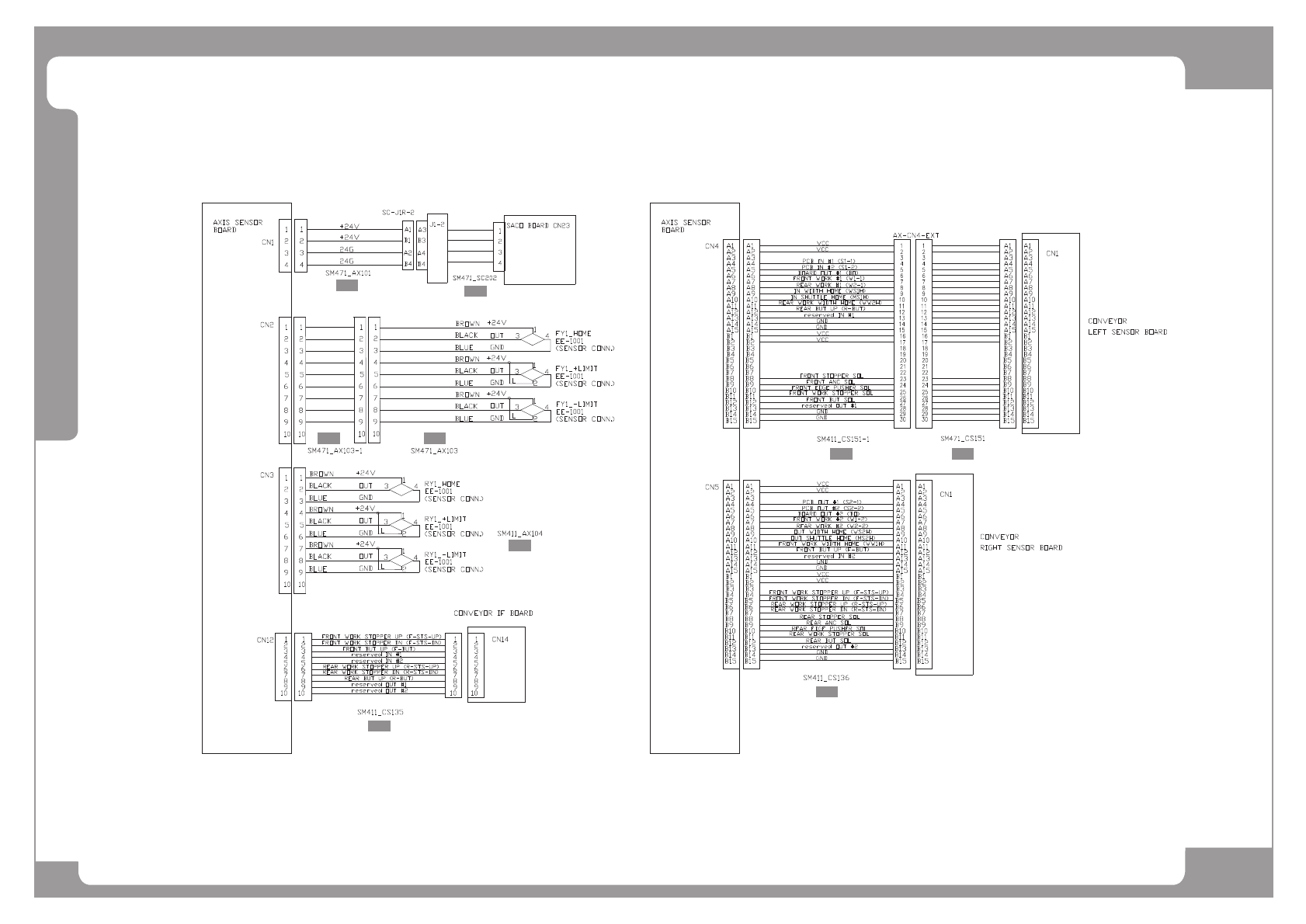

Axis Sensor Board Interface (1/3)
