Page SAMSUNG TECHWIN 131 SM471 A xis Sensor Board Interface (1/3) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-0053 88A CABLE ASSY -AXIS_SENSOR_BD_ PW_EXT_J1R 1 SM471_AX101 2 AM03-0…
Page
SAMSUNG TECHWIN
130
SM471

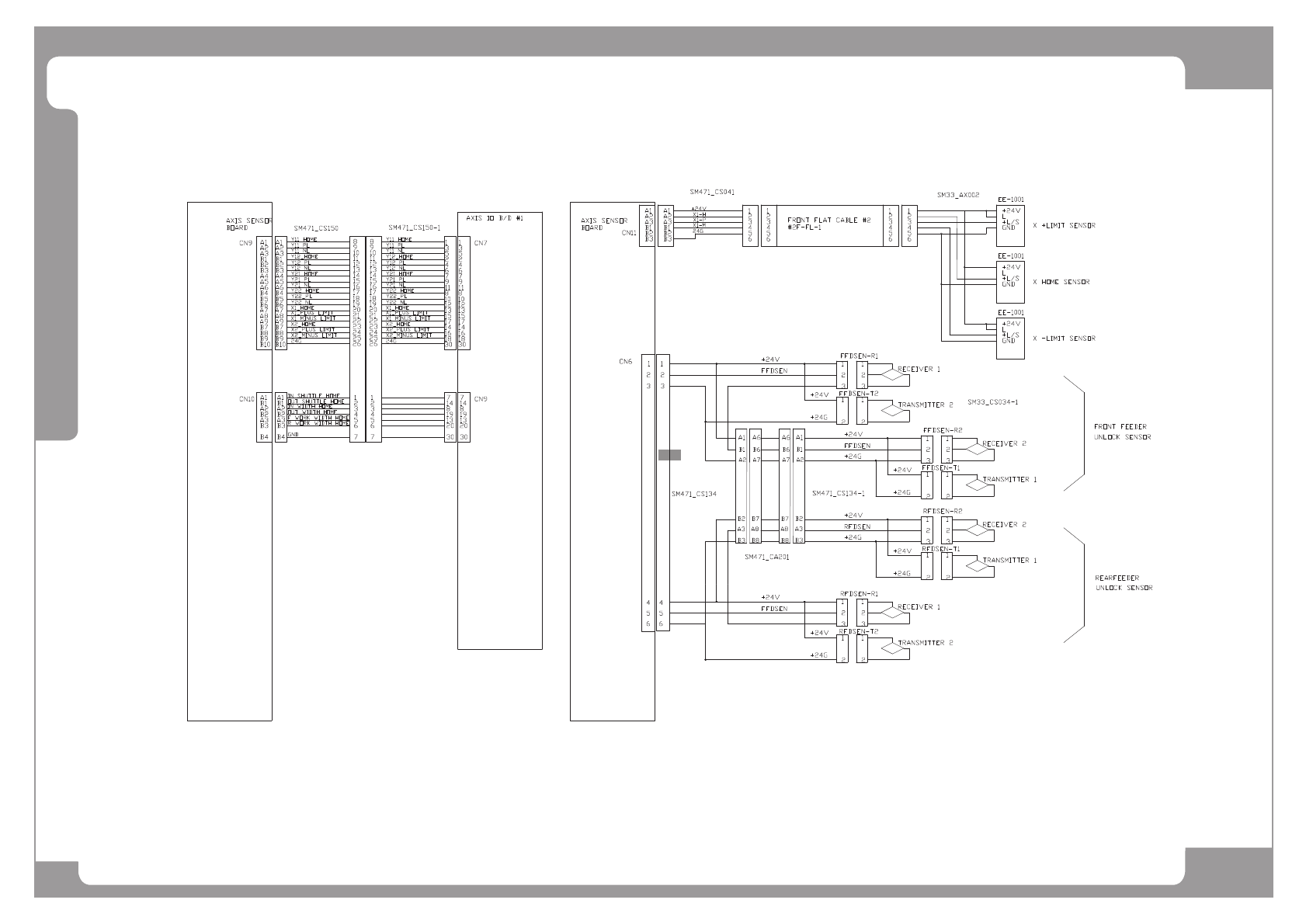

Axis Sensor Board Interface (1/3)
^4`
^5`
^9`
^:`
^6`
^7`
^;`
^<`
^8`
Page
SAMSUNG TECHWIN
131
SM471
Axis Sensor Board Interface (1/3)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005388A CABLE ASSY-AXIS_SENSOR_BD_PW_EXT_J1R 1 SM471_AX101
2 AM03-005434A CABLE ASSY-BD_PW_SC_J2R 1 SM471_SC202
3 AM03-005391A CABLE ASSY-FY_AXIS_SENSOR-EXT 1 SM471_AX103-1
4 AM03-005390A CABLE ASSY-FY_AXIS_SENSOR 1 SM471_AX103
5 AM03-004337A CABLE ASSY-RY_AXIS_SENSOR 1 SM411_AX104
6 AM03-004348A CABLE ASSY-AXIS_SENSOR_BD_STP-BUT 1 SM411_CS135
7 AM03-005424A CABLE ASSY-CONV_LEFT_IF_BD_EXT 1 SM411_CS151-1
8 AM03-005422A CABLE ASSY-CONV_LEFT_IF_BD 1 SM471_CS151
9 AM03-004349A CABLE ASSY-CONV_RIGHT_IF_BD 1 SM411_CS136
Page
SAMSUNG TECHWIN
132
SM471
Axis Sensor Board Interface (2/3)
^4`
^5`
^9`^:`
^6`^7`
^;`
^8`
