Page SAMSUNG TECHWIN 140 SM471 A xis IO Board (3/13) [1 ] [3 ] [2 ] [4 ] [5 ] [6 ] [7 ] [8 ] [9 ] [1 0 ] [1 1 ] [1 3 ] [ 12]
Page
SAMSUNG TECHWIN
139
SM471

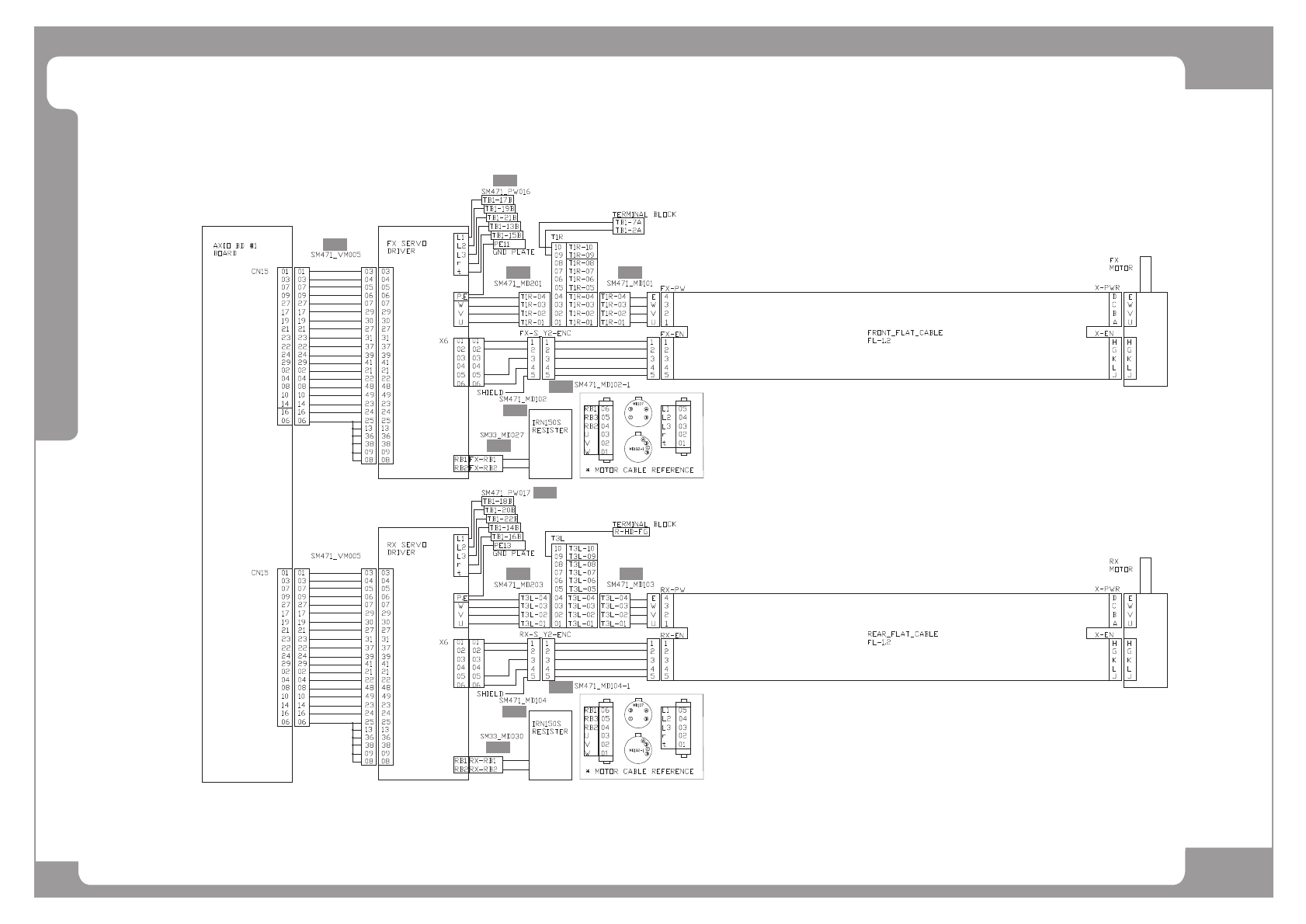

Axis IO Board (2/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005557A CABLE ASSY-FY1_FY2_DRV_COMMAND 1 SM471-VM003
2 AM03-005606A CABLE ASSY-Z6_MOTOR 1 SM471_MD024
3 AM03-005428A CABLE ASSY-FY1_MOTOR_PWR 1 SM471_MD105
4 AM03-005763A CABLE ASSY-FY1_MOTOR_ENC_EXT 1 SM471_MD028
5 AM03-005763A CABLE ASSY-FY1_MOTOR_ENC_EXT 1 SM471_MD106-1
6 AM03-005762A CABLE ASSY-FY1_MOTOR_ENC 1 SM471_MD106
7 AM03-005493A CABLE ASSY-FY1_FY2_SERVO_POWER 1 SM471_PW018
8 AM03-005764A CABLE ASSY-FY2_RY1_HD1_FG_T2R 2 SM471_MD202
9 AM03-004448A CABLE ASSY-FY2_MOTOR_PWR_T2R 1 SM411_MD107
10 J90831185A FY2_REGEN_RESISTOR_CABLE_ASSY SM33_MD029
11 AM03-005421A CABLE ASSY-FX_S_Y2 MOT_ENC 1 SM471_MD102
12 AM03-005423A CABLE ASSY-FX_S_Y2 MOT_ENC_EXT 1 SM471_MD102-1
13 AM03-005558A CABLE ASSY-RY1_RY2_DRV_COMMAND 1 SM471-VM004
14 AM03-005494A CABLE ASSY-RY1_RY2_SERVO_POWER 1 SM471_PW019
15 AM03-004450A CABLE ASSY-RY1_MOTOR_PWR_T2R SM411_MD109
16 AM03-005473A CABLE ASSY-RY1_MOTOR_ENC_EXT 1 SM471-MD031
17 AM03-005473A CABLE ASSY-RY1_MOTOR_ENC_EXT 1 SM471_MD110-1
18 AM03-005457A CABLE ASSY-RY1_MOTOR_ENC 1 SM471_MD110
19 AM03-005761A CABLE ASSY-FY1_RY2_R_MOT_PW_T4 1 SM471_MD204
20 AM03-005760A CABLE ASSY-RY2_R_MOT_PW_T4L 1 SM471_MD111
21 J90831188A RY2_REGEN_RESISTOR_CABLE_ASSY 1 SM33-MD032
22 AM03-005425A CABLE ASSY-RX_S_Y2 MOT_ENC 1 SM471_MD104
23 AM03-005426A CABLE ASSY-RX_S_Y2 MOT_ENC_EXT 1 SM471_MD104-1
Page
SAMSUNG TECHWIN
140
SM471
Axis IO Board (3/13)
[1 ]
[3 ]
[2 ]
[4 ]
[5 ]
[6 ]
[7 ]
[8 ]
[9 ] [1 0 ]
[1 1 ]
[1 3 ]
[12]
Page
SAMSUNG TECHWIN
141
SM471
Axis IO Board (3/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005559A CABLE ASSY-FX_RX_DRV_COMMAND 2 SM471-VM005
2 AM03-005491A CABLE ASSY-FX,FS SERVO POWER 1 SM471_PW016
3 AM03-005419A CABLE ASSY-FX_FS_F_MOT_PW_T1R 1 SM471_MD201
4 AM03-005720A CABLE ASSY-FX_MOTOR_PWR_T1R 1 SM471_MD101
5 J90831183A FX_REGEN_RESISTOR_CABLE_ASSY 1 SM33-MD027
6 AM03-005421A CABLE ASSY-FX_S_Y2 MOT_ENC 1 SM471_MD102
7 AM03-005423A CABLE ASSY-FX_S_Y2 MOT_ENC_EXT 1 SM471_MD102-1
8 AM03-005492A CABLE ASSY-RX,RS SERVO POWER 1 SM471_PW017
9 AM03-005624A CABLE ASSY-RX_RS_HD2_FG_T3L 1 SM471_MD203
10 AM03-005695A CABLE ASSY-RX_MOTOR_PWR_T3L 1 SM471_MD103
11 J90831186A RX_REGEN_RESISTOR_CABLE_ASSY 1 SM33_MD030
12 AM03-005425A CABLE ASSY-RX_S_Y2 MOT_ENC 1 SM471_MD104
13 AM03-005426A CABLE ASSY-RX_S_Y2 MOT_ENC_EXT 1 SM471_MD104-1
