Page SAMSUNG TECHWIN 143 SM471 A xis IO Board (4/13) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-005573 A CABLE ASSY -MS1 _WS1_DRV_COMMAN 1 SM471_VM013 2 J90831091C SHUTTLE_WIDTH_P…
Page
SAMSUNG TECHWIN
142
SM471

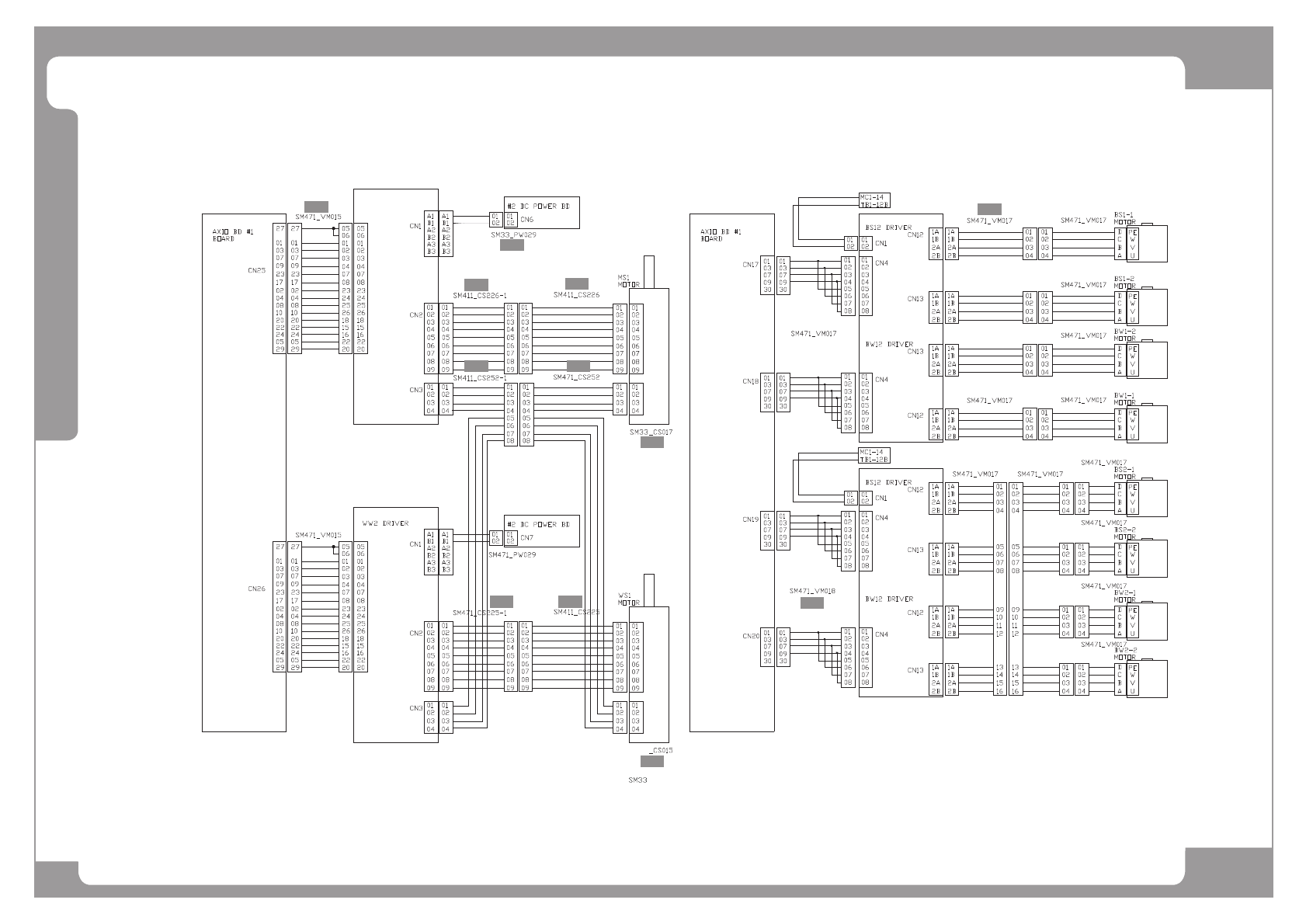

Axis IO Board (4/13)
[1 ]
[3 ]
[2 ]
[4 ]
[7 ]
[6 ]
[9 ]
[10]
[1 1 ]
[5 ]
[8 ]
[12] [13]
[1 6 ]
[15]
[1 4 ]
[1 7 ] [1 8 ]
[2 1 ]
[2 0 ][19]
Page
SAMSUNG TECHWIN
143
SM471
Axis IO Board (4/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005573A CABLE ASSY-MS1_WS1_DRV_COMMAN 1 SM471_VM013
2 J90831091C SHUTTLE_WIDTH_PW_CABLE_ASSY 4 SM33_PW029
3 AM03-005408A CABLE ASSY-MS1_MOTOR_ENC_EXT 1 SM471_CS221-1
4 AM03-005407A CABLE ASSY-MS1_MOTOR_ENC 1 SM471_CS221
5 AM03-005404A CABLE ASSY-MS1_WW1_MOT_PW_EXT 1 SM471_CS254-1
6 AM03-005403A CABLE ASSY-MS1_WW1_MOT_PW 1 SM471_CS254
7 J90831199A CABLE ASSY-MS1_SERVO_MOTOR 1 SM33-CS012
8 AM03-005411A CABLE ASSY-WS1_MOTOR_ENC 1 SM471_CS223
9 AM03-005412A CABLE ASSY-WS1_MOTOR_ENC_EXT 1 SM471_CS223-1
10 AM03-001349A CABLE ASSY-WS1_SERVO_MOTOR 1 SM33-CS013
11 AM03-005574A CABLE ASSY-WW1_MS2_DRV_COMMAND 2 SM471_VM014
12 AM03-005410A CABLE ASSY-WW1_MOTOR_ENC_EXT 1 SM471_CS222-1
13 AM03-005409A CABLE ASSY-WW1_MOTOR_ENC 1 SM471_CS222
14 AM03-005405A CABLE ASSY-WS1_MOTOR_PW 1 SM471_CS220
15 AM03-005406A CABLE ASSY-WS1_MOTOR_PW_EXT 1 SM471_CS220-1
16 J90831201A CABLE ASSY-WW1_SERVO_MOTOR 1 SM33-CS014
17 AM03-004370A CABLE ASSY-MS2_MOTOR_ENC_EXT 1 SM411_CS224-1
18 AM03-004369A CABLE ASSY-MS2_MOTOR_ENC 1 SM411_CS224
19 AM03-004537A CABLE ASSY-MS2_MOTOR_PW 1 SM411_CS253
20 AM03-005688A CABLE ASSY-MS2_MOTOR_PW_EXT 1 SM471-CS253-1
21 J90831203A CABLE ASSY-MS2_SERVO_MOTOR 1 SM33-CS016
Page
SAMSUNG TECHWIN
144
SM471

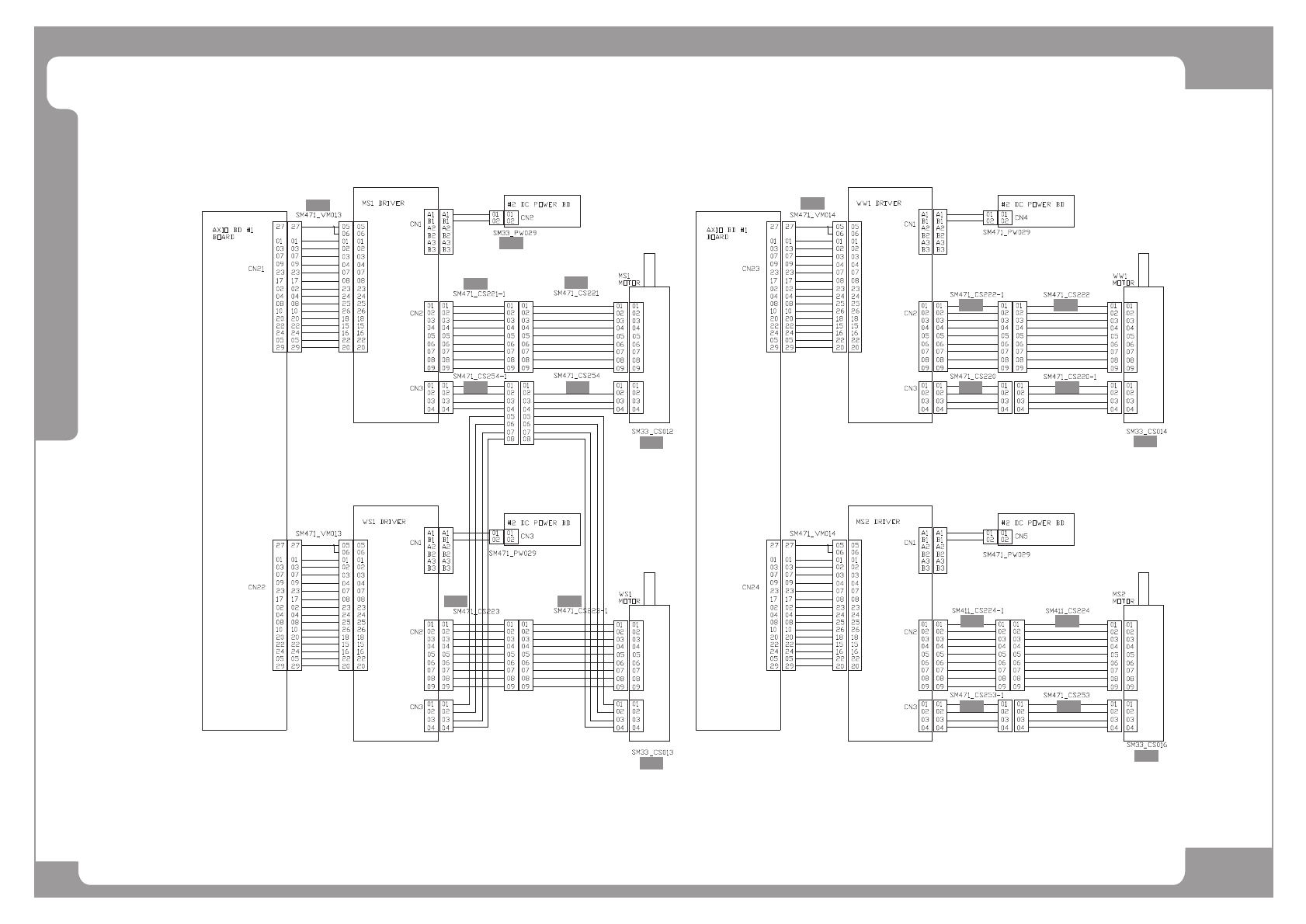

Axis IO Board (5/13)
[1 ]
[3 ]
[2 ]
[4 ]
[7 ]
[9 ]
[10]
[8 ]
[12]
[6 ][5 ]
[1 1 ]
