Page SAMSUNG TECHWIN 146 SM471 A xis IO Board (6/13) ^4` ^5` ^6` ^7` ^8` ^9` ^:` ^;` ^<`
Page
SAMSUNG TECHWIN
145
SM471
Axis IO Board (5/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005575A CABLE ASSY-WS2_WW2_DRV_COMMAND 1 SM471-VM015
2 J90831091C SHUTTLE_WIDTH_PW_CABLE_ASSY 1 SM33-PW029
3 AM03-004380A CABLE ASSY-WS2_MOTOR_ENC_EXT 1 SM411_CS226-1
4 AM03-004376A CABLE ASSY-WS2_MOTOR_ENC 1 SM411_CS226
5 AM03-004540A CABLE ASSY-WS2_WW2_MOT_PW_EXT 1 SM411_CS252-1
6 AM03-004539A CABLE ASSY-WS2_WW2_MOT_PW 1 SM411_CS252
7 J90831204A CABLE ASSY-WS2_SERVO_MOTOR 1 SM33_CS017
8 AM03-005689A CABLE ASSY-WW2_MOTOR_ENC_EXT 1 SM471_CS225-1
9 AM03-004372A CABLE ASSY-WW2_MOTOR_ENC 1 SM411_CS225
10 J90831202A CABLE ASSY-WW2_SERVO_MOTOR 1 SM33-CS015
11 AM03-005576A CABLE ASSY-BW12_BS12_DRV_COMMAND 1 SM471_VM017
12 AM03-005577A CABLE ASSY-BW34_BS34_DRV_COMMAND 1 SM471_VM018
Page
SAMSUNG TECHWIN
146
SM471

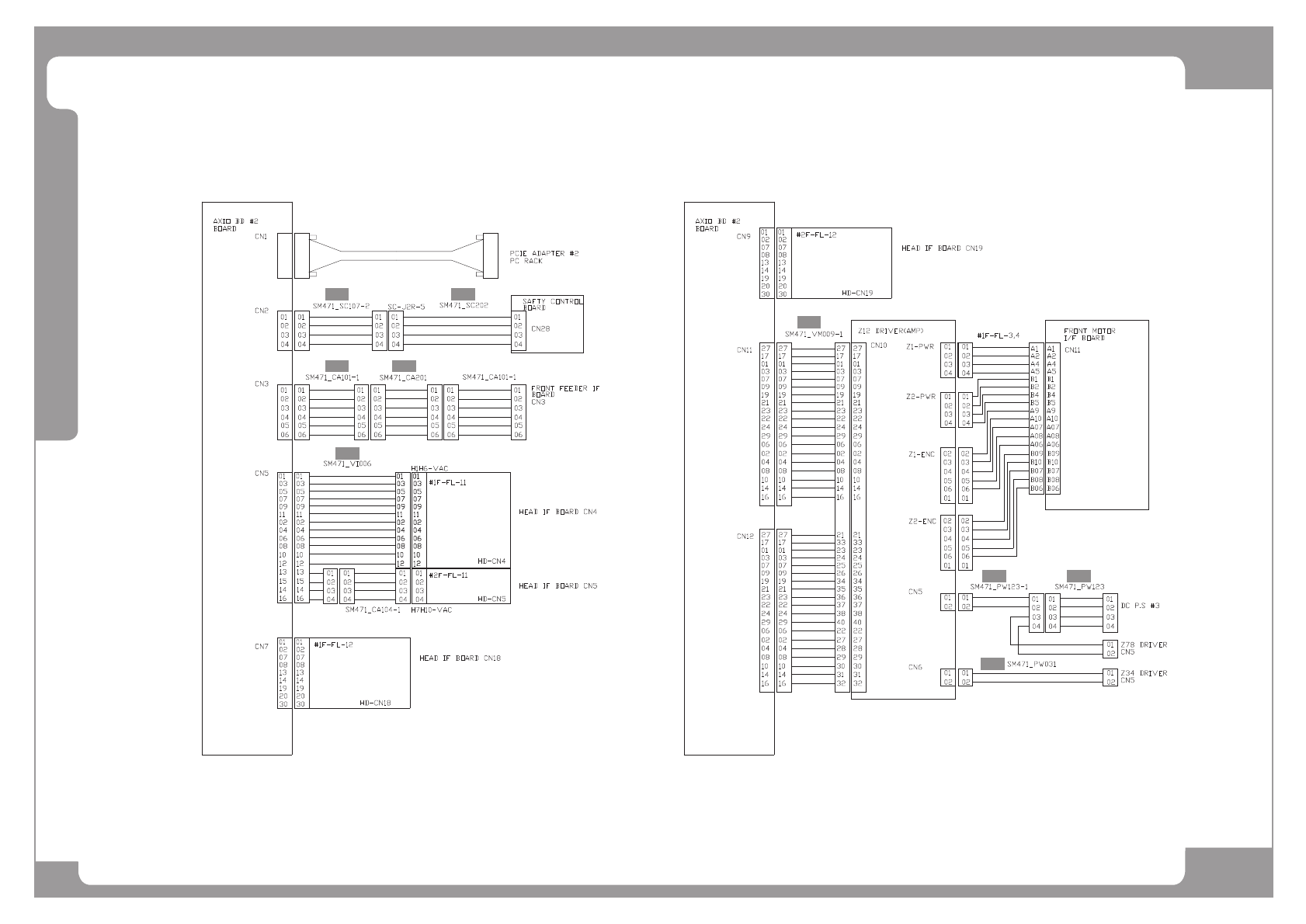

Axis IO Board (6/13)
^4`
^5`
^6` ^7`
^8`
^9`
^:` ^;`
^<`
Page
SAMSUNG TECHWIN
147
SM471
Axis IO Board (6/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005529A CABLE ASSY-AXIO_BD_2_PWR_J2R 1 SM471-SC107-2
2 AM03-005434A CABLE ASSY-BD_PW_SC_J2R 1 SM471_SC202
3 AM03-005392A CABLE ASSY-AXIO_BD_2_FFD_CAN_J3R 3 SM471_CA101-1
4 AM03-005396A CABLE ASSY-AXIO_CAN_FDR_UL_J3R-J8L 1 SM471_CA201
5 AM03-005703A CABLE ASSY-HD_VAC-BLOW_H1-H8 1 SM471-VI006
6 AM03-005564A CABLE ASSY-Z12_DRV_COMMAND 1 SM471-VM009-1
7 AM03-005501A CABLE ASSY-FZ1-FZ10_DC24V_PW-EXT 1 SM471-PW123-1
8 AM03-005500A CABLE ASSY-FZ1-FZ10 DC24V PW 1 SM471-PW123
9 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 4 SM471-PW031
