Page SAMSUNG TECHWIN 153 SM471 A xis IO Board (9/13) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-005570 A CABLE ASSY -R4 _R5 DRV COMMAND 1 SM471-VM01 1-1 2 AM03-005570 A CABLE ASSY…
Page
SAMSUNG TECHWIN
152
SM471

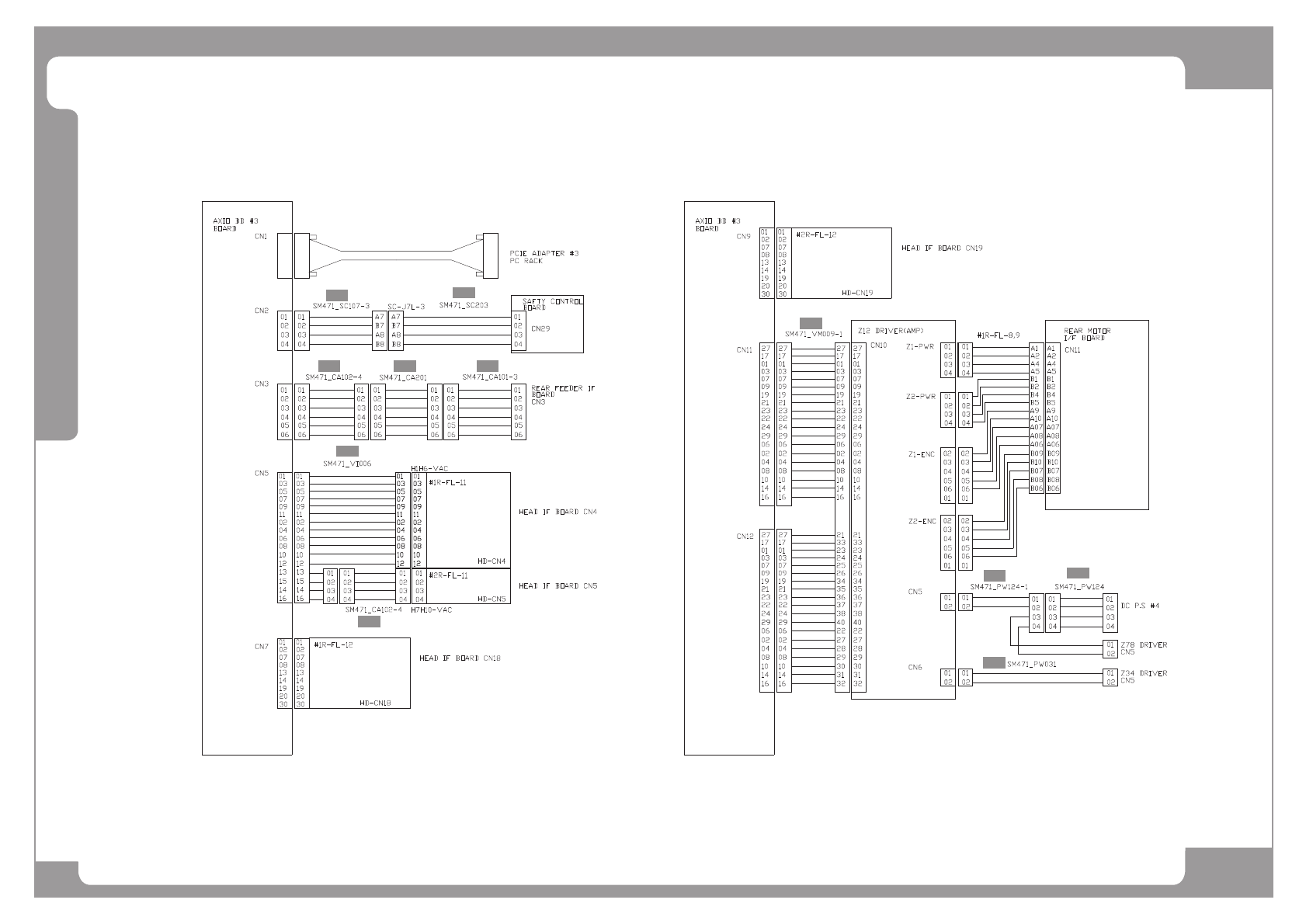

Axis IO Board (9/13)
^4`
^5`
^6` ^7`
^8`
^9`
^:`
^;`
^<`
Page
SAMSUNG TECHWIN
153
SM471
Axis IO Board (9/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005570A CABLE ASSY-R4_R5 DRV COMMAND 1 SM471-VM011-1
2 AM03-005570A CABLE ASSY-R4_R5 DRV COMMAND 1 SM471-VM011-1
3 AM03-005560A CABLE ASSY-FSW_DRV_COMMAND 1 SM471-VM106
4 AM03-005561A CABLE ASSY-FSW_DRV_COMMAND-EXT 1 SM471-VM106-1
5 AM03-005491A CABLE ASSY-FX,FS SERVO POWER 1 SM471_PW016
6 AM03-005419A CABLE ASSY-FX_FS_F_MOT_PW_T1R 1 SM471_MD201
7 AM03-005421A CABLE ASSY-FX_S_Y2 MOT_ENC 1 SM471_MD102
8 AM03-005423A CABLE ASSY-FX_S_Y2 MOT_ENC_EXT 1 SM471_MD102-1
9 AM03-005694A CABLE ASSY-FS_MOTOR_PWR_T1R 1 SM471_MD113
Page
SAMSUNG TECHWIN
154
SM471

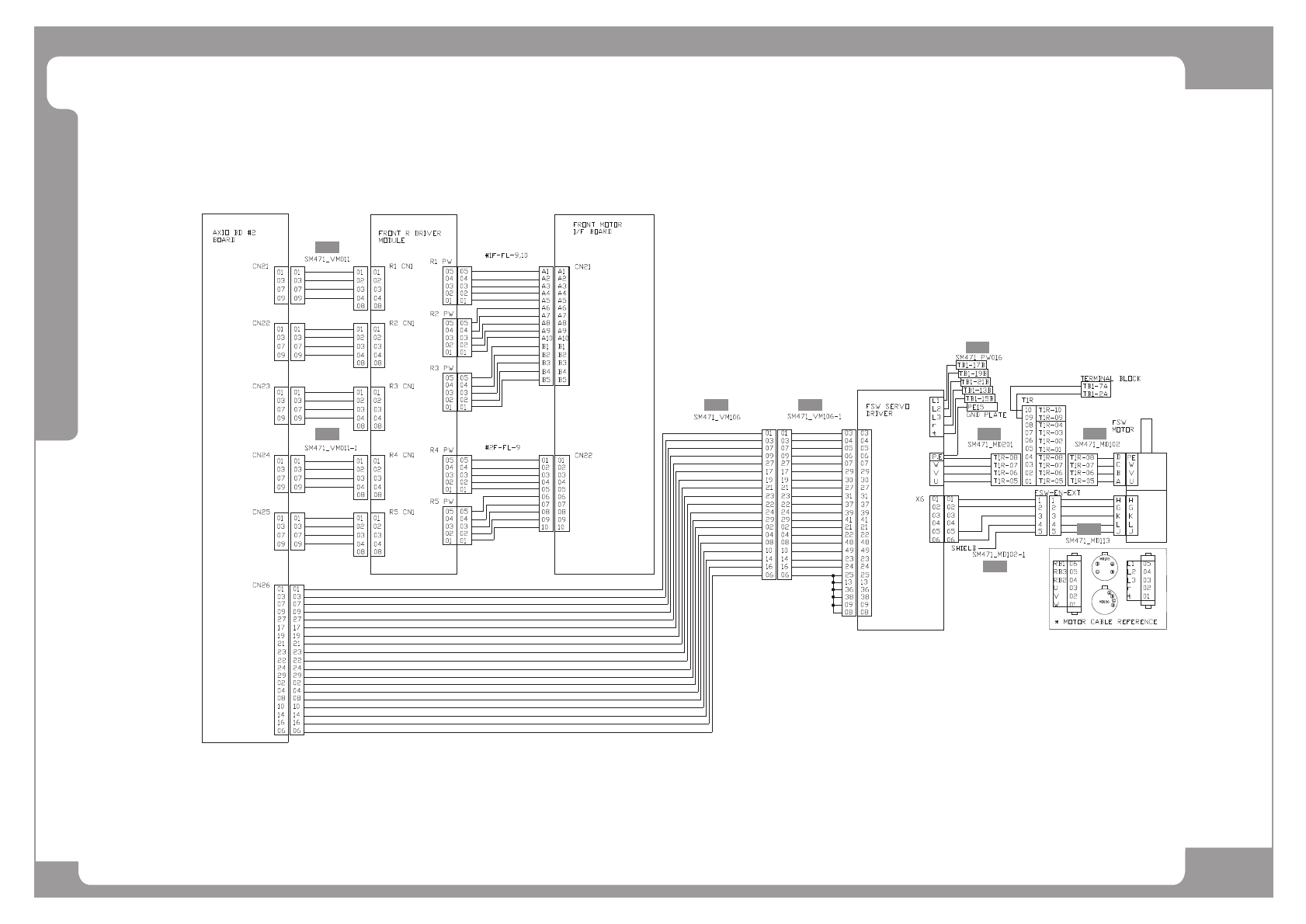

Axis IO Board (10/13)
^4`
^5`
^:`
^;`
^8`^7`^6`
^9`
^43`
^<`
^6`
