Page SAMSUNG TECHWIN 158 SM471 A xis IO Board (12/13) ^4` ^5` ^8` ^7` ^6` ^7`
Page
SAMSUNG TECHWIN
157
SM471
Axis IO Board (11/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005565A CABLE ASSY-Z34_DRV_COMMAND 1 SM471-VM009-2
2 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 4 SM471-PW031
3 AM03-005566A CABLE ASSY-Z56_DRV_COMMAND 1 SM471-VM009-3
Page
SAMSUNG TECHWIN
158
SM471

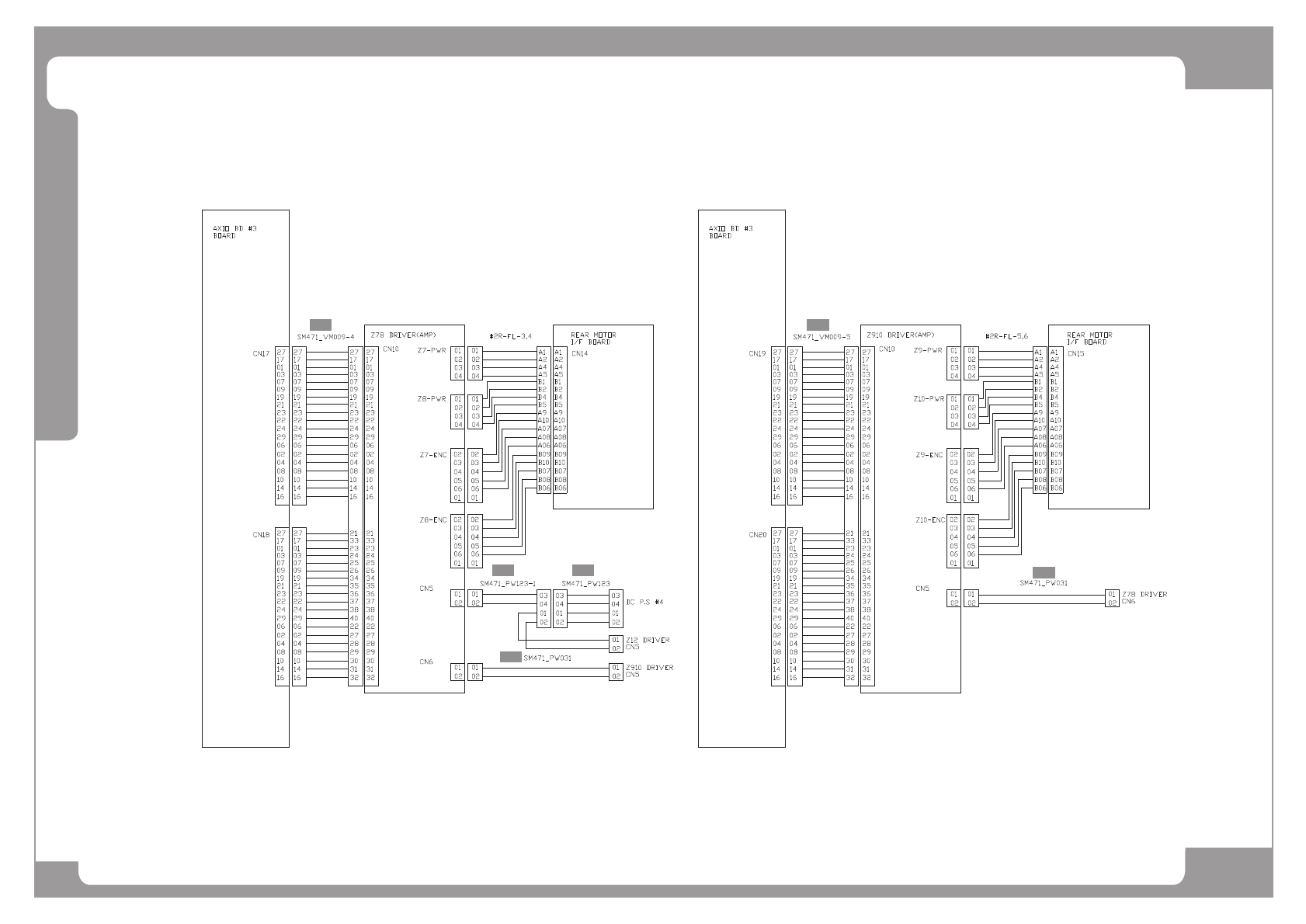

Axis IO Board (12/13)
^4`
^5`
^8`
^7`
^6`
^7`
Page
SAMSUNG TECHWIN
159
SM471
Axis IO Board (12/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005567A CABLE ASSY-Z78_DRV_COMMAND 1 SM471-VM009-4
2 AM03-005501A CABLE ASSY-FZ1-FZ10_DC24V_PW-EXT 1 SM471-PW123-1
3 AM03-005500A CABLE ASSY-FZ1-FZ10 DC24V PW 1 SM471-PW123
4 AM03-005505A CABLE ASSY-Z_DRIVER_PW_JUMPER 4 SM471-PW031
5 AM03-005568A CABLE ASSY-Z910_DRV_COMMAND 1 SM471-VM009-5
