Page SAMSUNG TECHWIN 161 SM471 A xis IO Board (13/13) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-005569 A CABLE ASSY -R1_R2_R3 DRV COMMAND 1 SM471-VM01 1 2 AM03-005570 A CABLE ASS…
Page
SAMSUNG TECHWIN
160
SM471
Axis IO Board (13/13)
^4`
^5`
^9`
^:`
^6`
^7`
^;`
^<`
^8`
Page
SAMSUNG TECHWIN
161
SM471
Axis IO Board (13/13)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005569A CABLE ASSY-R1_R2_R3 DRV COMMAND 1 SM471-VM011
2 AM03-005570A CABLE ASSY-R4_R5 DRV COMMAND 1 SM471-VM011-1
3 AM03-005562A CABLE ASSY-RSW_DRV_COMMAND 1 SM471-VM107
4 AM03-005563A CABLE ASSY-RSW_DRV_COMMAND-EXT 1 SM471-VM107-1
5 AM03-005492A CABLE ASSY-RX,RS SERVO POWER 1 SM471_PW017
6 AM03-005624A CABLE ASSY-RX_RS_HD2_FG_T3L 1 SM471_MD203
7 AM03-005696A CABLE ASSY-RS_MOTOR_PWR_T3L 1 SM471_MD115
8 AM03-005425A CABLE ASSY-RX_S_Y2 MOT_ENC 1 SM471_MD104
9 AM03-005426A CABLE ASSY-RX_S_Y2 MOT_ENC_EXT 1 SM471_MD104-1
Page
SAMSUNG TECHWIN
162
SM471

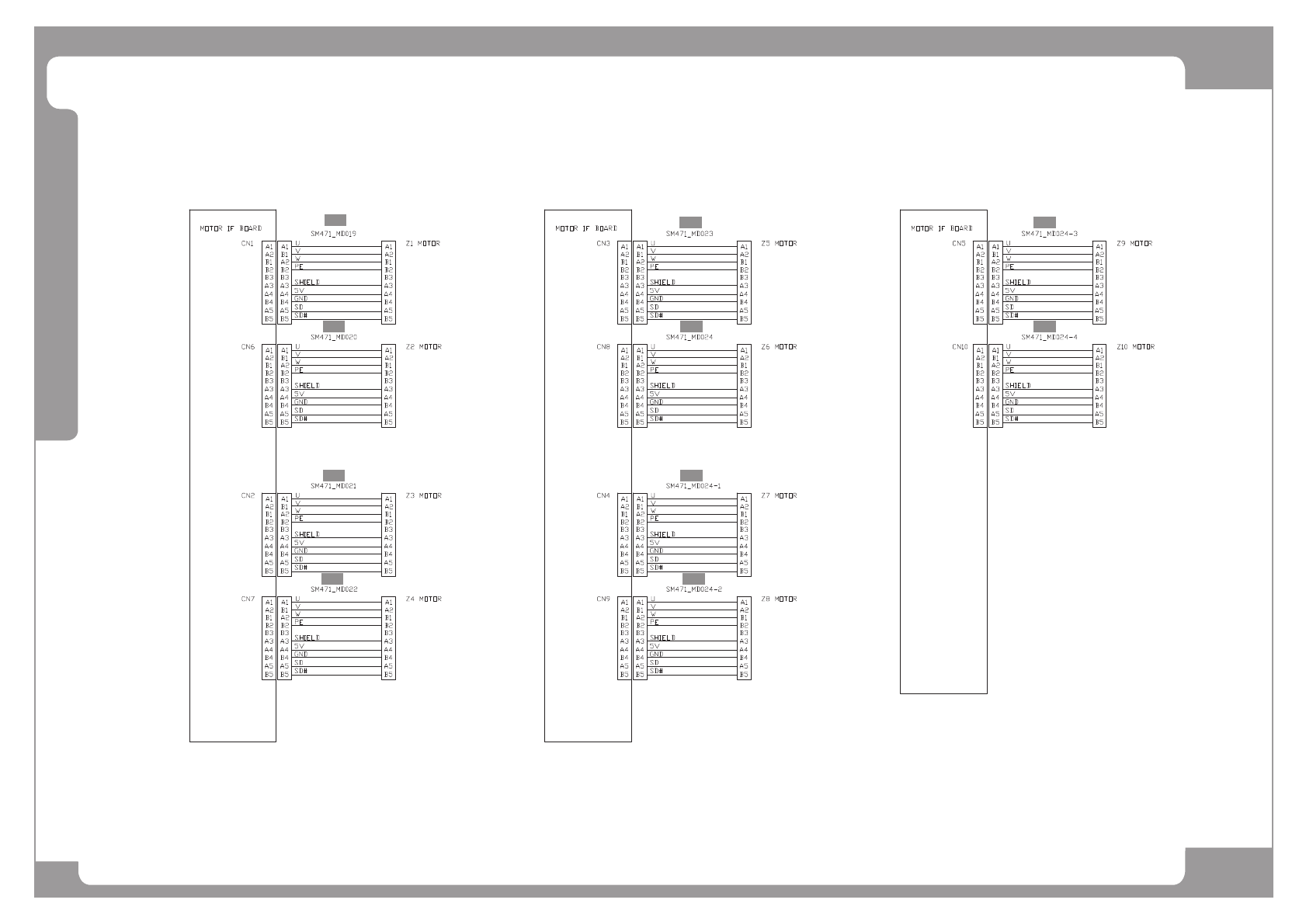

FR Motor IF Board (1/3)
^8`
^4`
^5`
^7`
^6`
^9`
^:`
^;`
^<`
^43`
