Page SAMSUNG TECHWIN 169 SM471 V ision IF Board (1/2) NO. Lev . P ART NO. P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-005541A CABLE ASSY -H EAD1 FIDUCIA L CAMERA1 1 SM471- VIS001-1 2 AM03-005543 A CAB…
Page
SAMSUNG TECHWIN
168
SM471

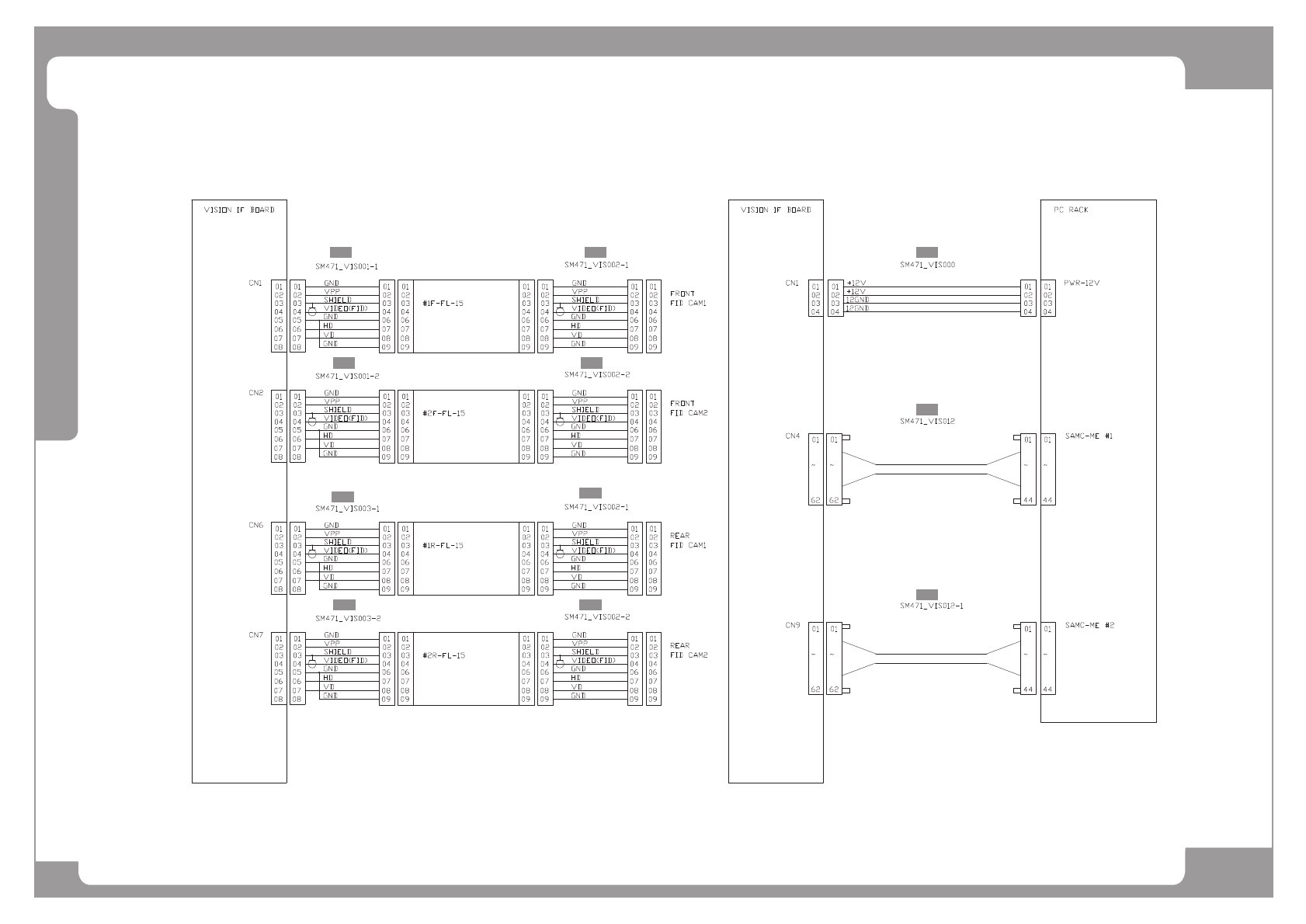

Vision IF Board (1/2)
^8`
^4` ^5`
^7`^6`
^<`
^;`
^:`
^7`^9`
^5`
Page
SAMSUNG TECHWIN
169
SM471
Vision IF Board (1/2)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005541A CABLE ASSY-HEAD1 FIDUCIAL CAMERA1 1 SM471-VIS001-1
2 AM03-005543A CABLE ASSY-FLAT_FID_CAMERA_1 1 SM471-VIS002-1
3 AM03-005542A CABLE ASSY-HEAD1 FIDUCIAL CAMERA2 1 SM471-VIS001-2
4 AM03-005544A CABLE ASSY-FLAT_FID_CAMERA_2 1 SM471-VIS002-2
5 AM03-005545A CABLE ASSY-HEAD2 FIDUCIAL CAMERA1 1 SM471-VIS003-1
6 AM03-005546A CABLE ASSY-HEAD2 FIDUCIAL CAMERA2 1 SM471-VIS003-2
7 AM03-005556A CABLE ASSY-VISION IF BD POWER 1 SM471-VIS000
8 AM03-005554A CABLE ASSY-NEXTEYE B/D I/F_MAGA 1 SM471-VIS012
9 AM03-005555A CABLE ASSY-NEXTEYE B/D2 I/F_MAGA 1 SM471-VIS012-1
Page
SAMSUNG TECHWIN
170
SM471

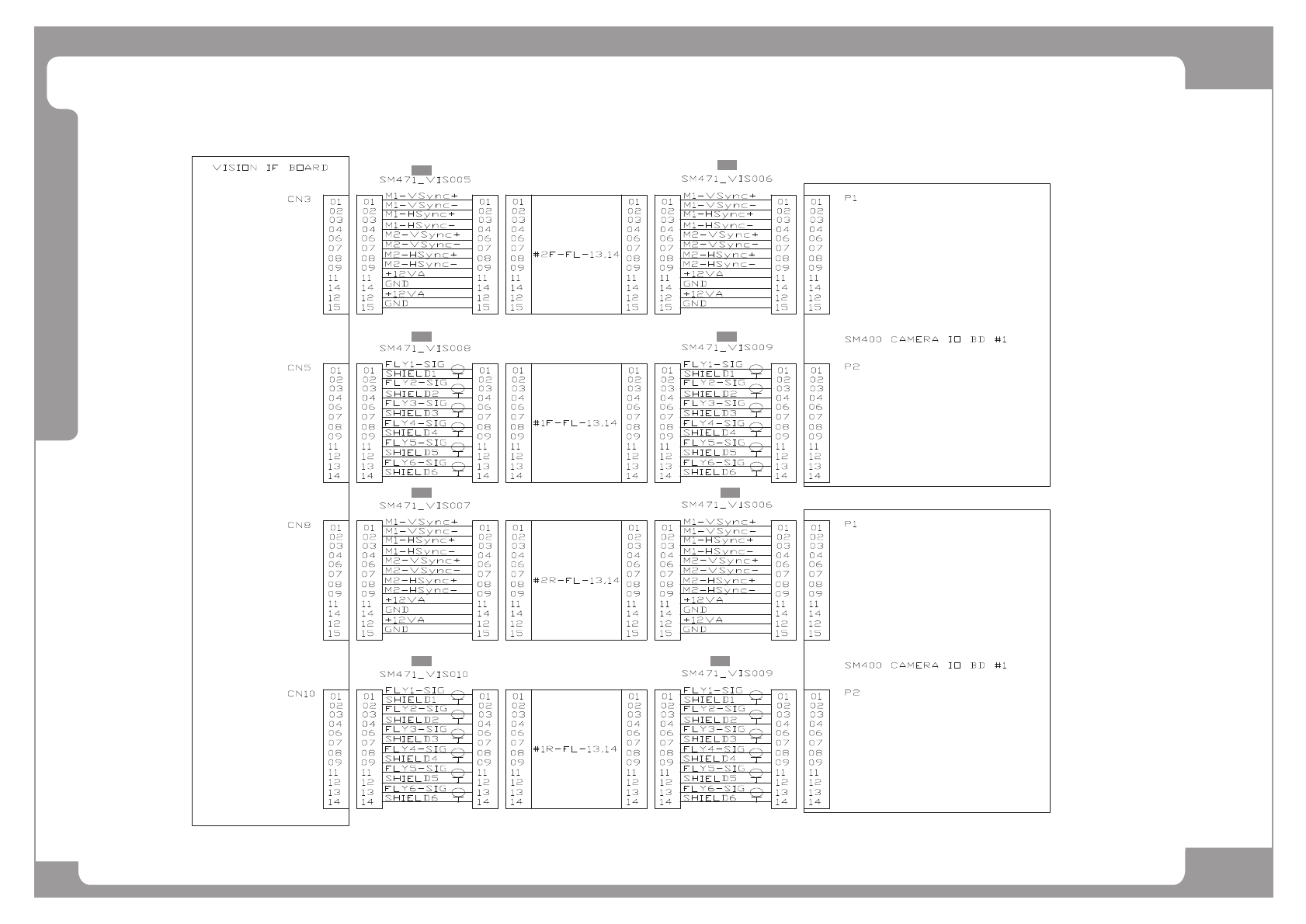

Vision IF Board (2/2)
^8`
^4`
^5`
^7`^6`
^7`^9`
^5`
