Page SAMSUNG TECHWIN 32 SM471 C onveyor Ass'y (6/6)
Page
SAMSUNG TECHWIN
31
SM471
Conveyor Ass'y (5/6)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
Page
SAMSUNG TECHWIN
32
SM471
Conveyor Ass'y (6/6)
Page
SAMSUNG TECHWIN
33
SM471

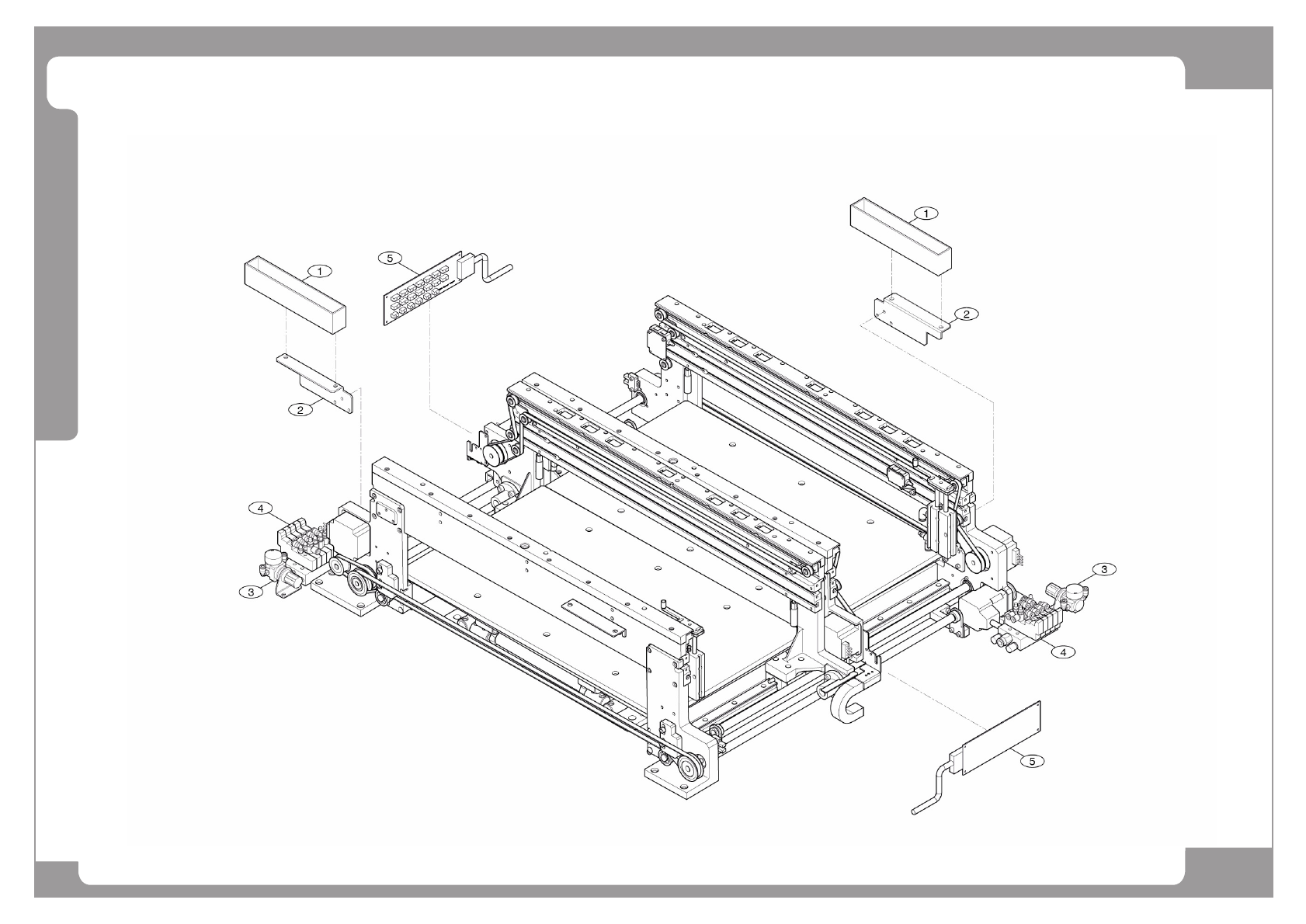

Conveyor Ass'y (6/6)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J72531005C DUMP_BOX 2 J72531005A
2 J70531059C DUMP_BOX_SUPPORT J70531059C 2
3 J67090018B REGULATOR 2 J6709004A
4 J67021005A SOLENOID_VALVE DV1120-00-R3642-3 2
5 J91741021A SM411_CONVEYOR_SENSOR_IF_BOARD 2
