Programmer's Manual | 44

3.13. Defect Review

DefectReviewisthemenuthatinspectsthestatusofPCBstackedontheNGrackorrepairconveyor

anddetermineswhethertorepairthePCBortransfertothenextequipment.

Figure 3-20. Defect Review

ClicktheDefectReviewicontoenablethewindowin thefigureabove.

 Rackequipmentst atus querywindow:ArrangesthePCBstack edontheNGrack

Status:InspectionresultofthecorrespondingPCB(Good,Pass,andNG)

 Defect determination list: Arranges the defect types occurring on the PCB of rack

equipment

 Defect pad query window: 2D/3D screen for a defect type selected from the defect

determinationlist;displaysdetaileder ror information

 Functionbutton:

ButtonformakingdecisionsonPCB

Rack status

Button

Defect confirm

Defect List

Programmer's Manual | 45

Category Description

<< Previous, Next >> Moves to the previous or next defect

NG Treats PCB as defect

Pass Treats PCB as good

Return Moves to the 3D inspector™ program

PCB View (Review All Data) Converts into PCBView

Note:DefectReviewincludesupto50defectsperdefecttypeinthelist.Tocheckallthedefects,clickthe

<PCBView(ReviewAllData)>button.

3.14. Defect Analysis

DefectAnalysisisthefunctionofanalyzingtheaccumulateddefectcategories,whichcanbeadded

tothemainmenuatthetopoftheSPCPlus™screen.TheDefectAnalysismenuhasthefollowing4

sub‐menus:

 RealDefectTrendView

Viewerthatchecksthetrendinaccumulateddefects

 DefectCheckTool

Toolthatcansequentiallyanalyzethedefectboards

 DefectGuide

Defecthandlingguideforeachdefect

 Before&AfterReport

ReporttypethatprintsthedefectSPCgroupforcomparison

3.14.1. DEFECT ANALYSIS SETTING

Touse theDefectAnalysisfunctiononSPCPlus™,configureaprogrammenu tobeenabled.The

followingarethewaysofenablingthefunction:

 First,toconfiguretheDefectAnalysismenu,proceedwiththefollowingbeforerunning3D

Inspector

™

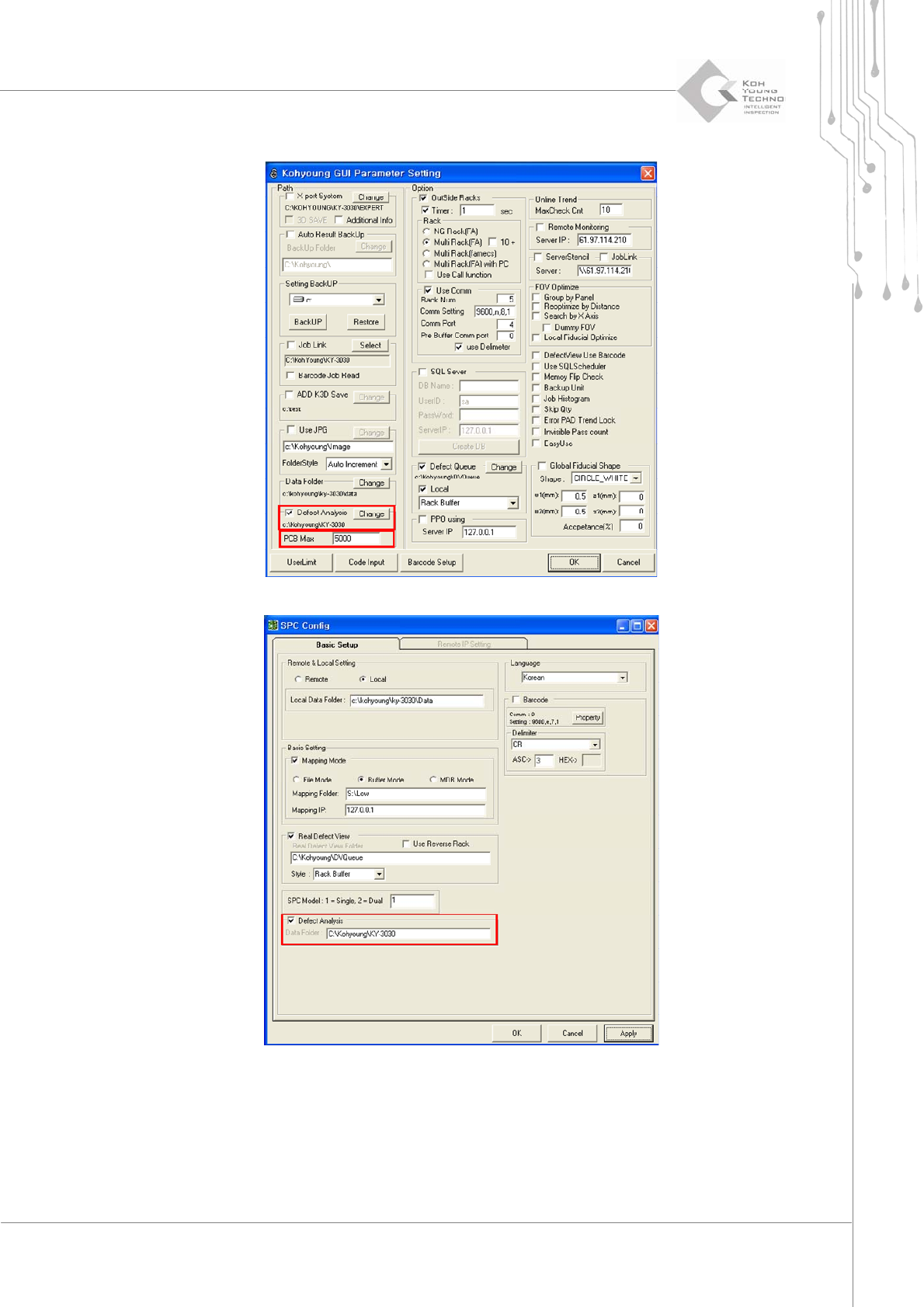

1. Select the Defect Analysis category and path from the KYConfig dialog box and enter the maximum

PCB quantity to be stored.

2. Enable the SPC Config dialog box to select the Defect Analysis category at the bottom left and set the

path.

Programmer's Manual | 46

3. When SPC Plus

™

is executed, the Defect Analysis menu is added to the main menu at the top.
