振動スティックフィーダ
CS-G100

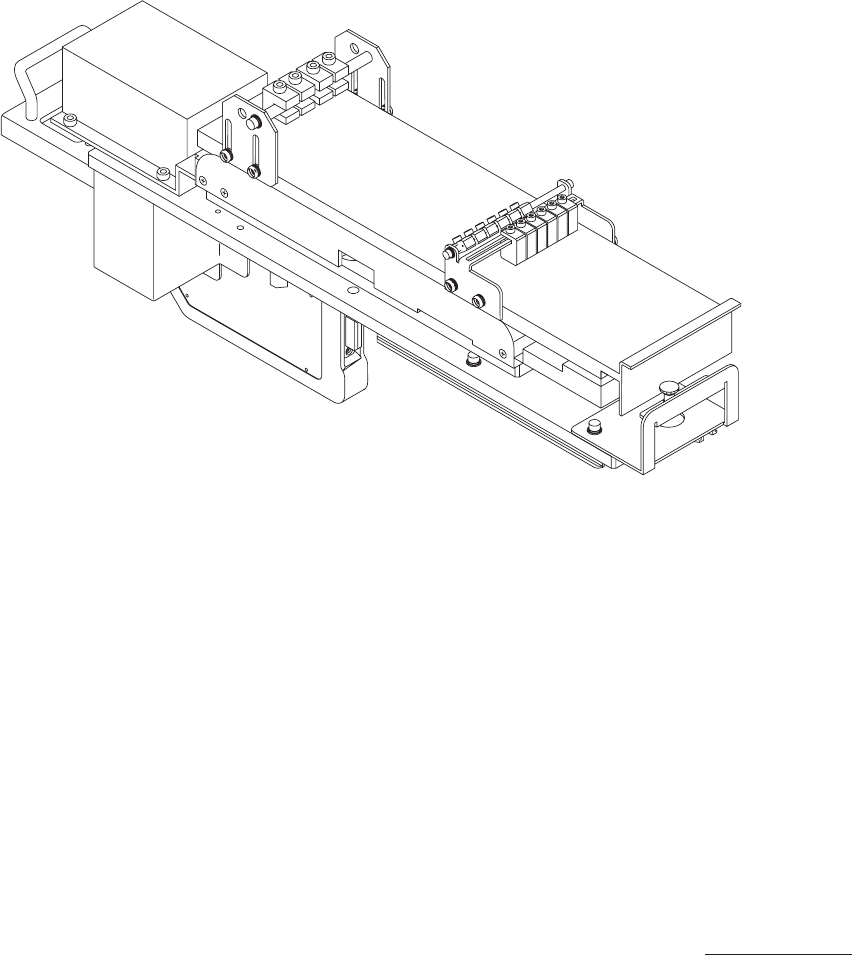

Vibratory Stick Feeder CS-G100
MODEL CS-G100
1012-002
6
31
30
.
25
.
29
28
.
21
.
31
30
.
22
.
31
30
.
25
.
31
30
.
24
.
33
32
.
27
.
31
30
.
24
.
20
20
20
20
9
53
8
41
1
1
10
14
20
13
12
17
5
20
18
15
20
20
20
3
1
6
7
4
26
26
40
40
35
35
37
36
19
20
46
47
74
39
39
39
16
31
30
.
23
.
See Fig.FD-2
Key No.101
2
振動スティックフィーダ
CS-G100
Vibratory Stick Feeder CS-G100

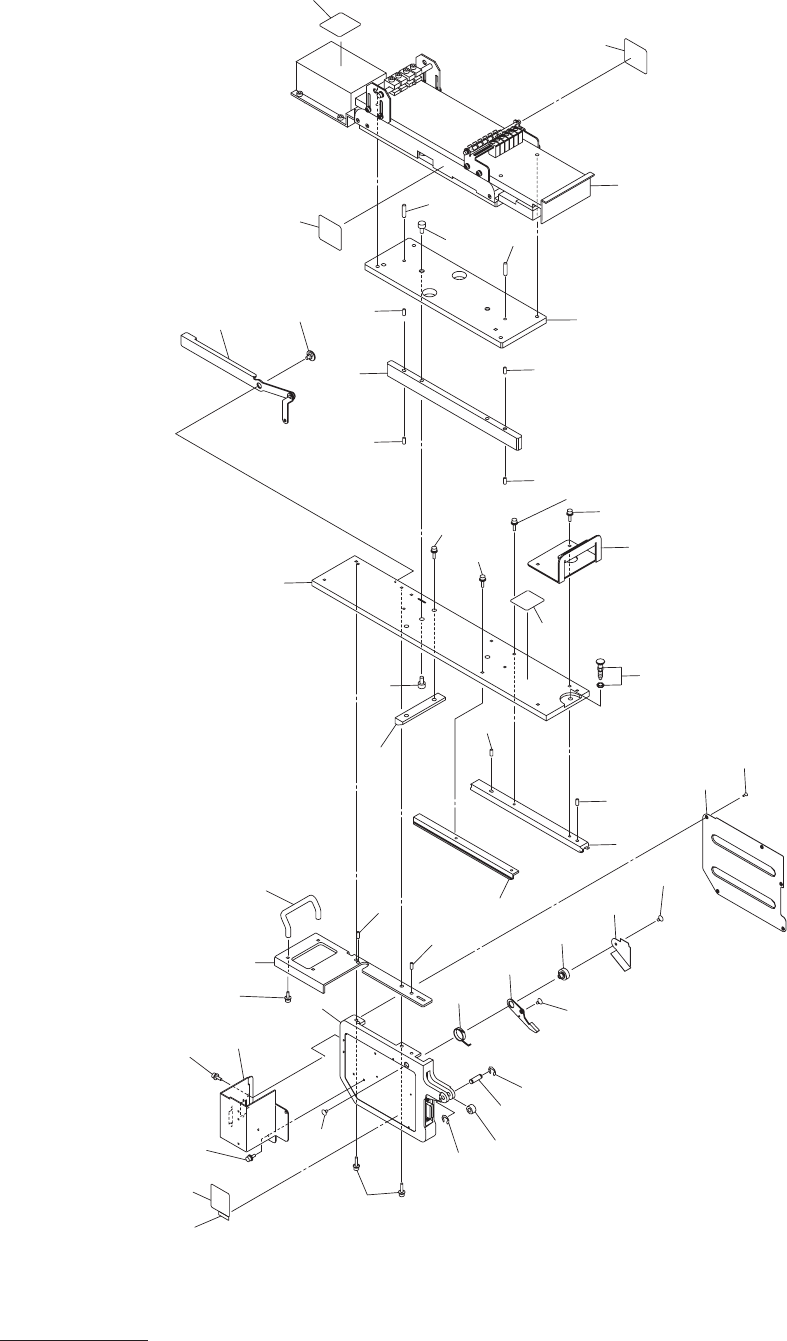

Fig. FD-1
ベース部
Base Section
MODEL CS-G100
1012-004
7
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FD-1
1 6301391731 BASE 1 804FD-110-001 210A2428
2 6301532547 BLOCK(KIBAN) 1 804FD-110-002
211G5105
3 6301391755 BLOCK 1 804FD-110-003
211G4238
4 6301391762 BLOCK 1 804FD-110-004
211G4239
5 6301393964 PLATE 1 804FD-110-005
211DA846
6 6301391779 ASSY,LEVER 1 804FD-110-006
016S0795
7 6301391823 PIN,HINGE 1 804FD-110-007
216D0517
8 6301475523 COVER(KIBAN) 1 804FD-110-008
211AA944
9 6301366463 SLIDE(BASE) 1 804FD-110-009
212C0385
10 6301266084 ASSY,LEVER(KAIJYO) 1 804FD-110-010
016S0689
11 6301265827 PIN,HINGE 1 804FD-110-01
1 216D0448
12 6301265834 ROLLER 1 804FD-110-012
213C0206
13 6301265841 PIN,GUIDE(ROLLER) 1 804FD-110-013
216F0879
14 6301646121 SPRING,TORSION 1 804FD-110-014
222P0207
15 6301393971 PLATE 1 804FD-110-015
211DA847
16 6301391861 HANDLE 1 804FD-110-016
226C0214
17 6301393995 BOX 1 804FD-110-017
211B1086
18 6301391847 BLOCK 1 804FD-110-018
211G4240
19 6301391878 PLUNGER 1 804FD-110-019
226G0056
20 6301265926 PIN,LOCATE(TAPE) 8 804FD-110-020
216E1484
21 6300008500 BOLT,HEX-SCT 3 804FD-110-021
221A0105
22 6300007619 BOLT,HEX-SCT 2 804FD-110-022
221A0016
23 6300007626 BOLT,HEX-SCT 3 804FD-110-023
221A0017
24 6300007640 BOLT,HEX-SCT 2 804FD-110-024
221A0019
25 6300007657 BOLT,HEX-SCT 4 804FD-110-025
221A0020
26 6300007862 BOLT,HEX-SCT 4 804FD-110-026
221A0041
27 6300007893 BOLT,HEX-SCT 2 804FD-110-027
221A0044
28 4111412806 WASHER SPR 3 3 804FD-110-028
221H0281
29 4111413902 WASHER V 3X7X0.5 3 804FD-110-029
221H0312
30 4111412905 WASHER SPR 4 11 804FD-1
10-030 221H0284
31 4111414008 WASHER V 4X9X0.8 11 804FD-1
10-031 221H0315
32 4111413001 WASHER SPR 6 2 804FD-110-032
221H0289
33 4111414305 WASHER V 6X12.5X1.6 2 804FD-110-033
221H0320
35 6301274546 SCR PAN+SW+W 3X6 2 804FD-110-035
221D0262
36 4110335700 SCR FLT 2.5X6 6 804FD-110-036
221D0261
37 4111407208 SCR FLT 4X6 1 804FD-110-037
221D0224
39 6301000640 NAME PLATE,NOTICE 3 804FD-110-039
6P450434
40 4110010201 RING E 5 2 804FD-110-040
221K0098
41 6301265735 COVER(HAISEN) 1 804FD-110-041
211A8626
46 0804000G NAME PLATE,NOTICE 1 804FD-110-046
0804000G
47 0804000F NAME PLATE,INDEX 1 804FD-110-047
0804000F
53 6301279121 BLOCK 1 804FD-110-053
211G3564
74 08040000 NAME PLATE,INDEX 1 804FD-110-074
08040000
