2 Replacing spare parts 2.7 Measurement board Service Manual SIPLACE MeasurementFeeder X 02/2020 25 2.7.1 Removing the measurement board ► Remove the left side cover (see 2.4.1 "Removing the side cover" [ } 15…
2 Replacing spare parts
2.7 Measurement board
24 Service Manual SIPLACE MeasurementFeeder X 02/2020
2.7 Measurement board
Required spare part
Fig.6: Measurement board cpl
Feeder module Item no. Designation
MeasurementFeeder X 03210586-xx Measurement board cpl
Required tools
●
Flat-bladed screwdriver
●
Phillips screwdriver
●
Spanner, size 5mm
●
Loctite 243
2 Replacing spare parts
2.7 Measurement board
Service Manual SIPLACE MeasurementFeeder X 02/2020 25

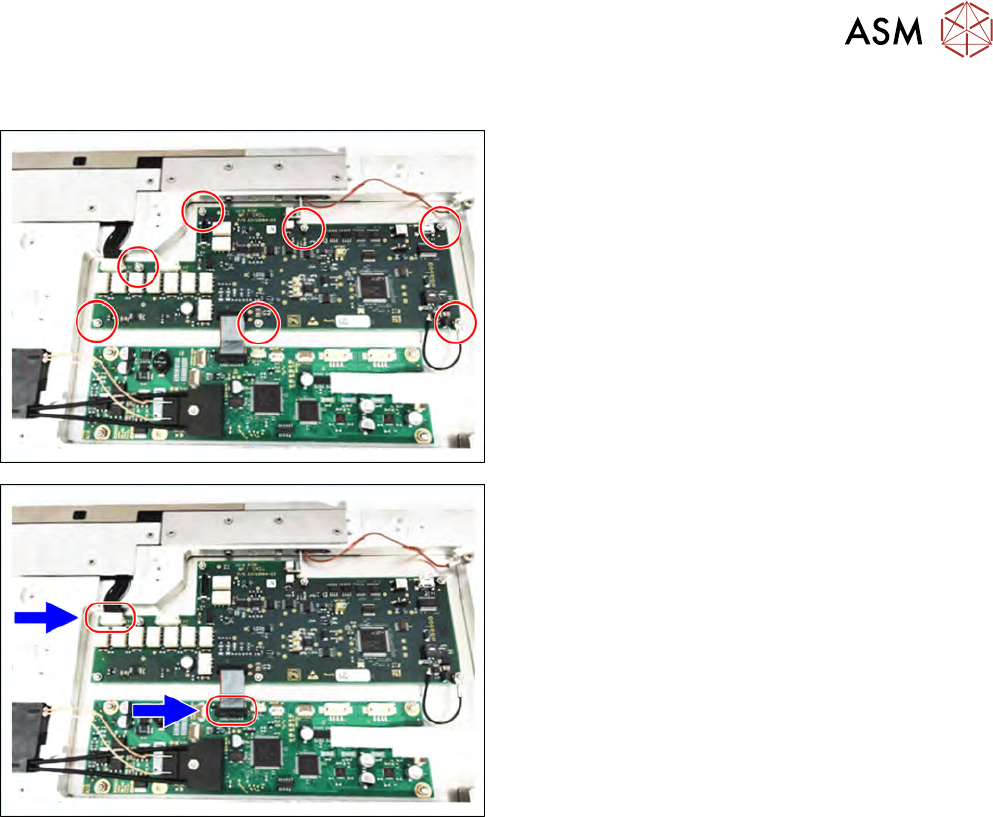

2.7.1 Removing the measurement board
► Remove the left side cover (see 2.4.1 "Removing
the side cover" [}15]).
► Loosen the seven nuts marked in the figure using
a spanner size 5mm.
► Disconnect to two connectors marked in the fig-
ure.
► Remove the measurement board.
2 Replacing spare parts
2.7 Measurement board
26 Service Manual SIPLACE MeasurementFeeder X 02/2020
2.7.2 Fitting the measurement board
► Align the measurement board to the Measure-
mentFeeder.
► Put a drop of Loctite 243 on the top of every
single thread marked in the figure right before
tightening the nut.
► Tighten the seven nuts (M2 X2.5, 03008160-xx)
marked in the figure using a spanner size 5mm.
► Connect to two connectors marked in the figure.
► Fit the left side cover to the feeder (see 2.4.2 "Fit-
ting the side plate" [}16]).
