2 Replacing spare parts 2.1 Overview Service Manual SIPLACE MeasurementFeeder X 02/2020 9 2 Replacing spare parts 2.1 Overview 1. Measurement location with contact plates 2. Protective cover 3. Rear centering pin 4. Carr…
1 Introduction
1.6 SIPLACE on the World Wide Web (WWW)
8 Service Manual SIPLACE MeasurementFeeder X 02/2020
2 Replacing spare parts

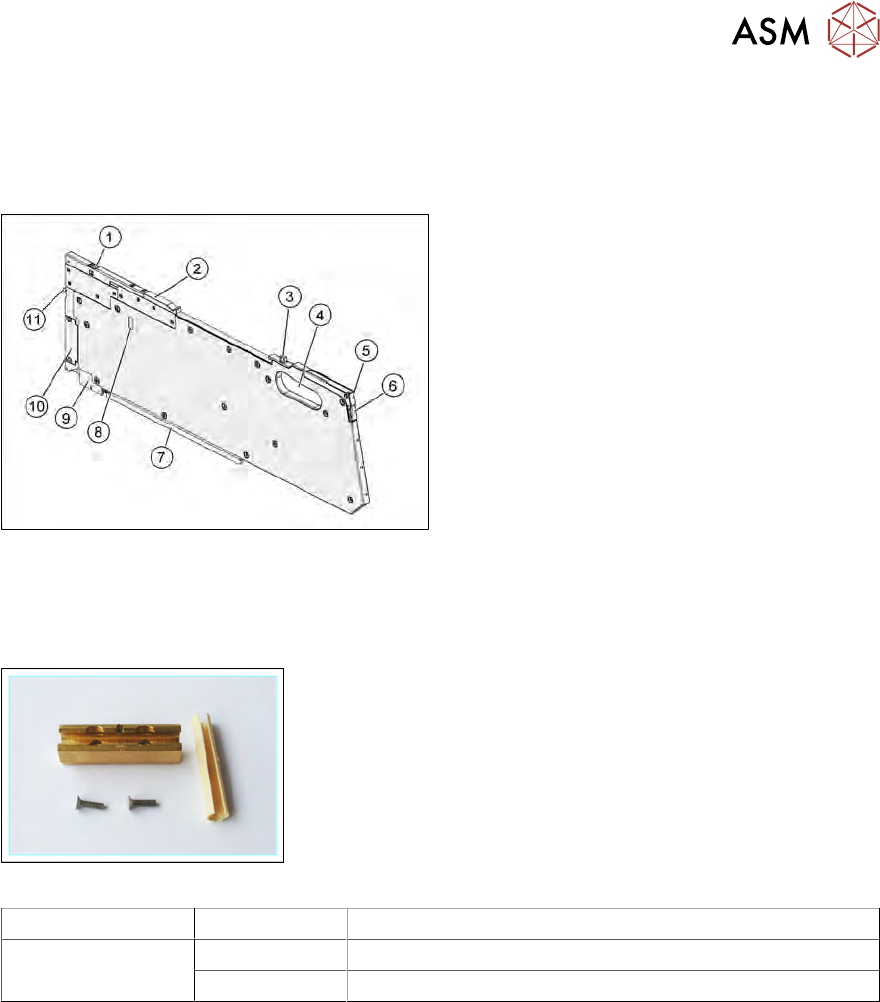

2.1 Overview
Service Manual SIPLACE MeasurementFeeder X 02/2020 9
2 Replacing spare parts
2.1 Overview
1. Measurement location with contact plates
2. Protective cover
3. Rear centering pin
4. Carrying handle
5. Status-LED
6. Removal handle
7. Rear sliding guide
8. Calibration module interface
9. Front sliding guide / sliding foil
10. EDIF (Energy and Data Interface)
11. Front centering pin
2.2 Front sliding guide / sliding foil
Required spare parts
Fig.1: Sliding guide and sliding foil
Feeder module Item no. Designation
Measurement-
Feeder X
03058808-Sxx Sliding guide
03019604-Sxx Sliding foil, X-feeder JUM-S-06LY
Required tools
●
Sliding foil remover
●
Phillips screwdriver
2 Replacing spare parts
2.2 Front sliding guide / sliding foil
10 Service Manual SIPLACE MeasurementFeeder X 02/2020

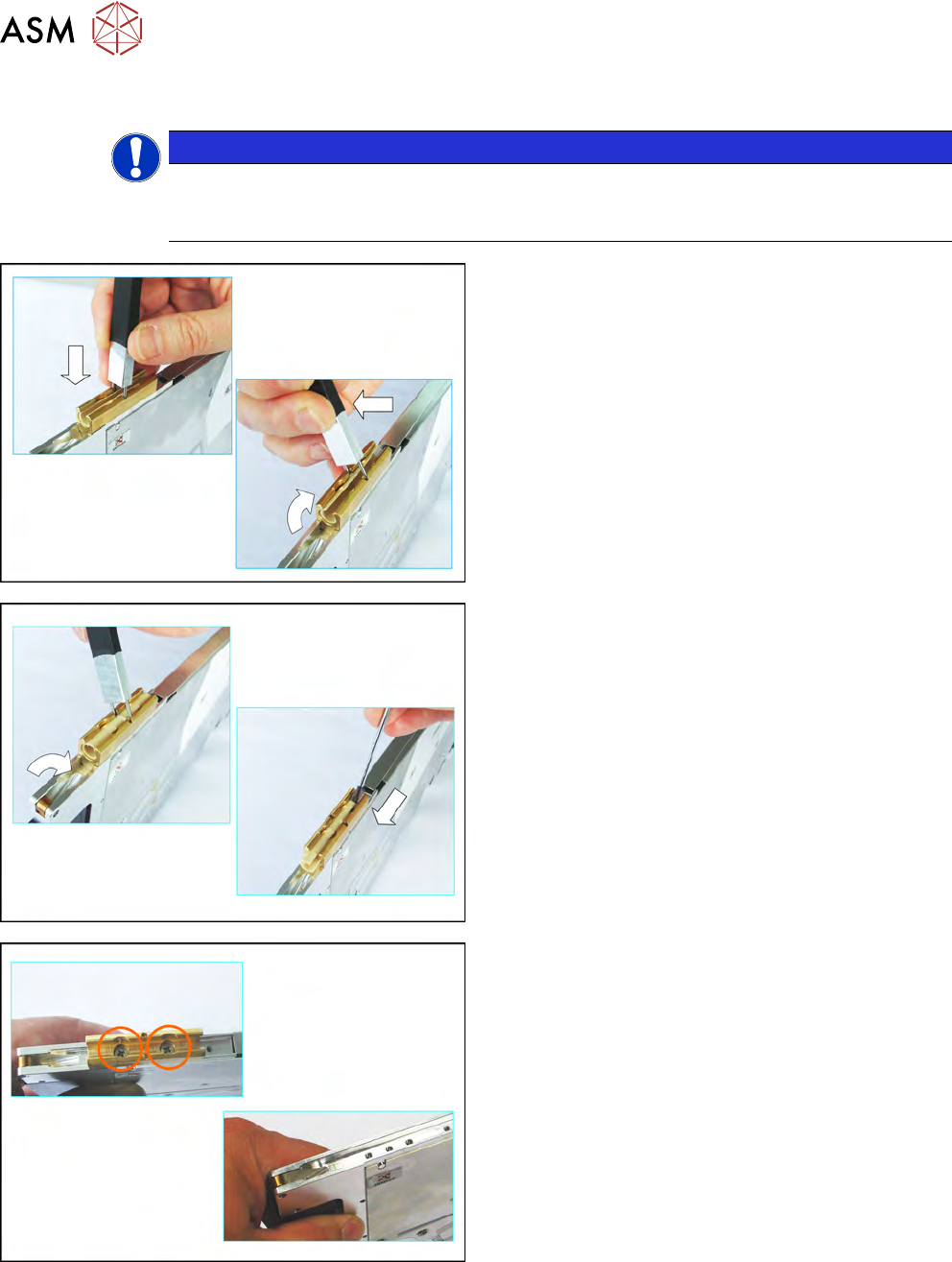

2.2.1 Removing the Front Sliding Guide
NOTICE
The pickup window must be fitted
To prevent damage to the sprocket wheel and the reject device, make sure that the pickup
window is fitted for this work.
► Turn the feeder module so that its underside is at
the top.
► Place the sliding foil remover into the sliding
guide, as shown in the diagram.
► Lever the sliding foil out of the engaged position.
► Lever the sliding foil until it has been turned by
approximately90°.
► Push the sliding foil towards the front and out of
the sliding guide.
► Loosen the 2 screws.
► Lift the sliding guide off the feeder module.
