Easy Offset Alignment Auto Alignment accuracy measurement for Table & Camera Automatic Easy Offset Alignment function eliminates User inconvenient or a mistake from Manual alignment This Built-in program aligns X, Y …

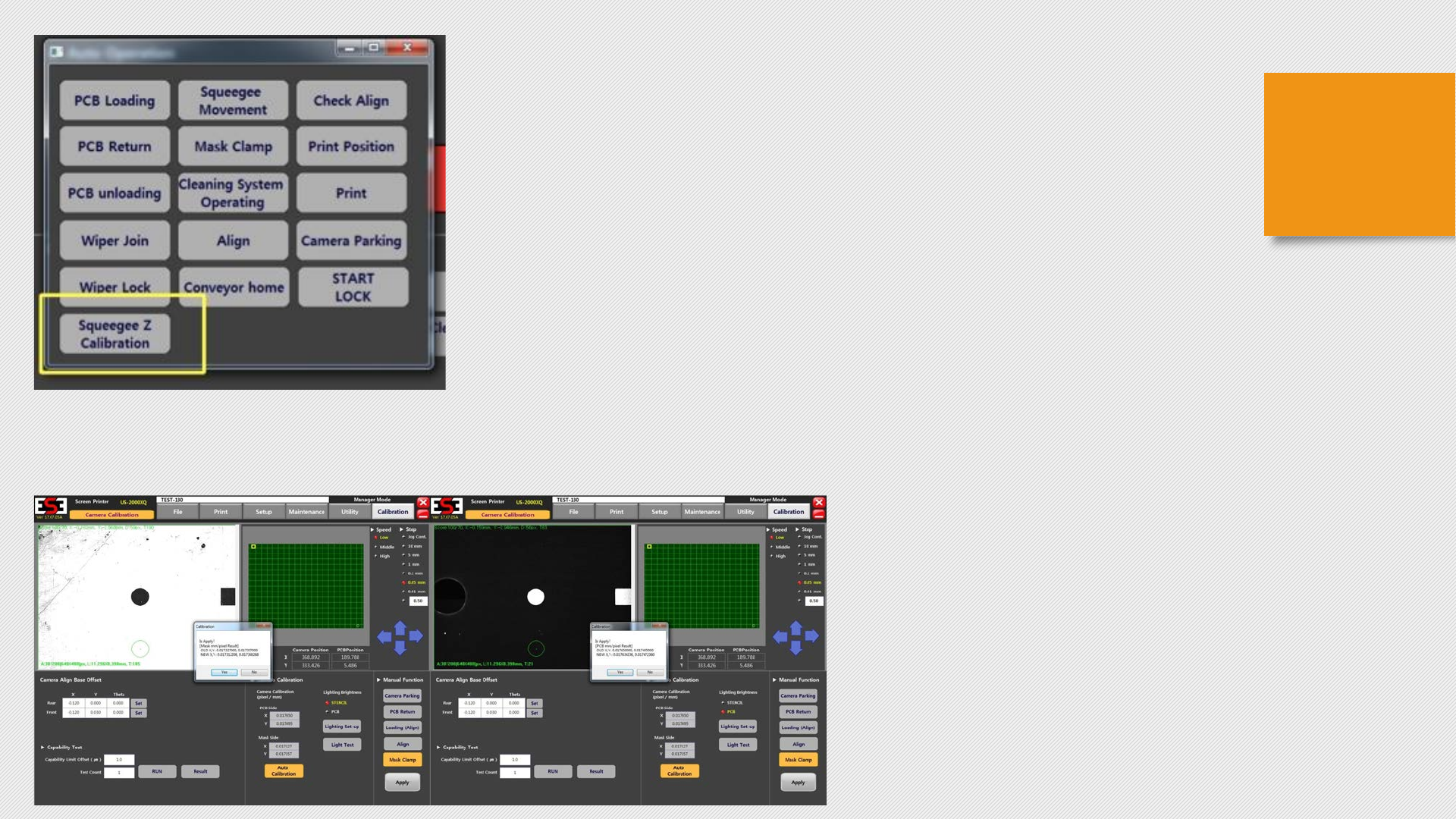

Auto Squeegee Z center position Calibration
Auto Camera Calibration
What this function is :
The function is to set automatically Squeegee down position to print by
a setting pressure after squeegee holder set fixing to machine
Why this function needed :
During production, squeegee blade or squeegee holder set need to be
changed and in this case, the squeegee height can be different. And
also in case a printing quality is not good or mask stenicl thickness
changed or table up position changed, if customer use this function,
customer can take much perfect printing condition of squeegee
automatically than manual works
What the automatic camera calibration is :
The function calculates Actual image size (mm) per Pixel by
recognizing Image size (pixel) to actual image size (mm) on
Vision [ unit : mm/pixel ]
Why this function needed :
To realize the perfect Offset by motor comparing the position
between fiducial image and actual position(mm)
To make sure correct camera focusing when a camera has a
damage from a physical conflict or a camera replaced or a
camera disassembled or re-assembled
Easy Offset Alignment
Auto Alignment accuracy measurement
for Table & Camera
Automatic Easy Offset Alignment function eliminates User inconvenient or a mistake from Manual
alignment
This Built-in program aligns X, Y and Theta of PCB and Mask stencil offset automatically and can
protect a human error
What the function is :
To verify Printer alignment accuracy without any extra cost
With this function, customer can diagnose easily a correct cause
if it is from machine itself , Mask stencil, solder paste, PCB or
Support plate & pins etc.
If customer does this Self-Machine alignment accuracy function
every quarter or monthly, he can keep Machine origin accuracy
or check if he needs to call a service.
To use this function, Please use Same mask stencil and PCB to
ensure test result
With this function, customer can verify Machine Table X,Y and
Theta accuracy and Camera vision as well.
Auto Stencil Inspection
Auto Stencil Loading and Positioning
Cleaning process of Stencil is very important to get equal & good printing quality
Although ESE printer cleaning process can give a good condition of stencil, but if
User can inspect the critical area stencil status on monitor and Printer can provide
this automatic function, he can keep the good quality continuously
Much effective and useful Standard Auto stencil loading and
Positioning is applied as Standard for all E & H printer
