Auto Side lifter system Automatic Support Pin Placement OPTION Automatic Pin Placement is to precisely place and remove pins. Pin location can be designated by User with Gerber file. Pin positions are software programma…
Air-conditioner . Temperature controller
Side vacuum clamp kit. Customizing Vacuum nest
OPTION

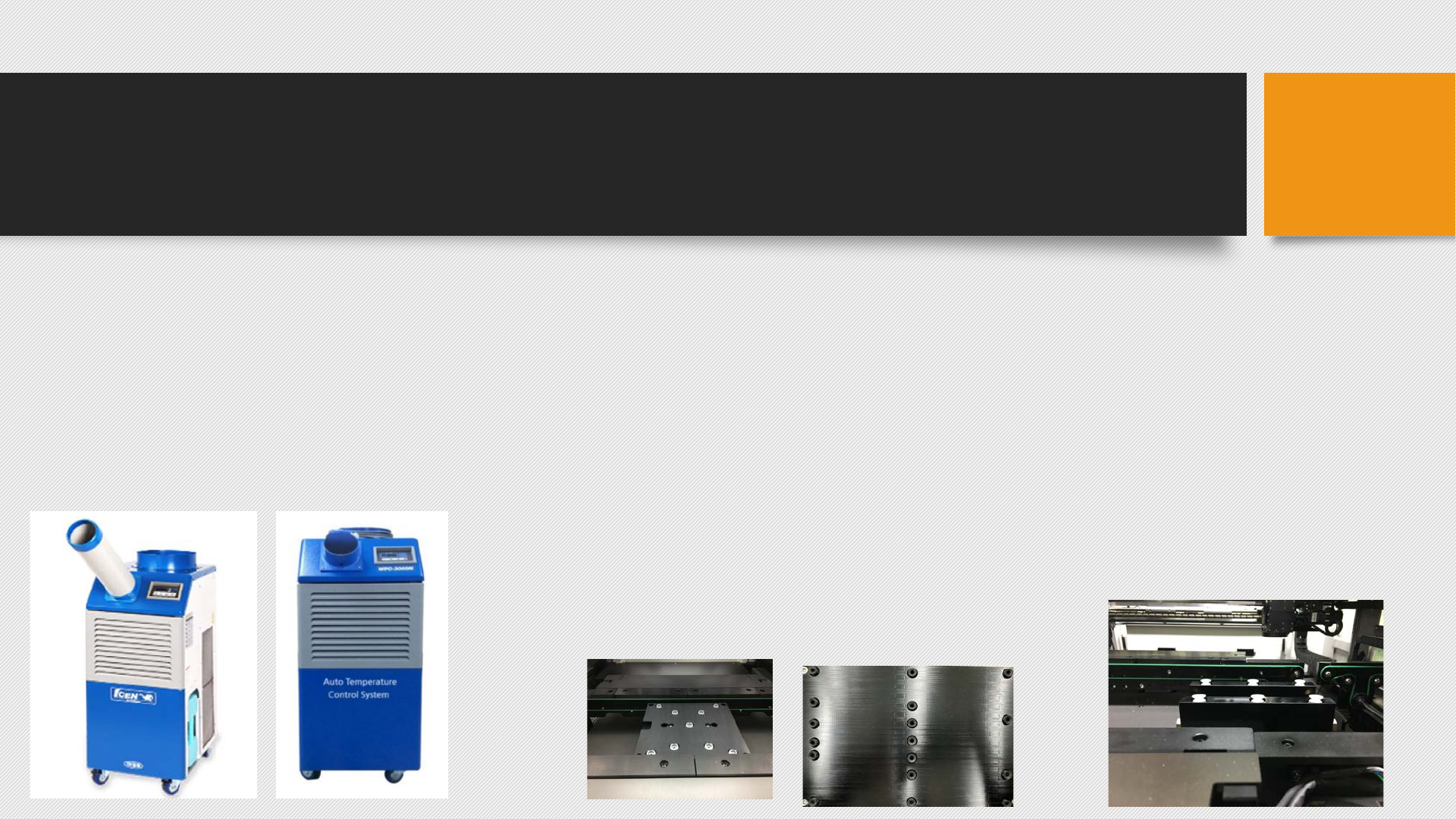

Optional Air conditioner
🡪 Only cooling
Optional Temperature
Control system
🡪 Cooling and Heating
Vacuum PAD Support Plate
• In case PCB thickness is too thin (0.1mm ~
0.3mm etc) and customer needs to
consider much better & perfect clamp, this
kind of Vacuum plate can be made based
on customer PCB Gerber file
Electric Magnetic Support Plate
• In case Substrate is a kind of Metal having
much high warpage, ESE can apply Electric
magnetic support plate
ESE can provide a perfect vacuum
plate based on customer PCB design
ES-E & H Side Vacuum Clamp Tool
*ESE Printer covers normally PCB warpage +/-0.5mm
In case of PCB warpage is out of ESE standard, Side
vacuum clamp tool needs to be considered for
better clamp
*This tool is included into US-LX3 and 5 model
without a cost .

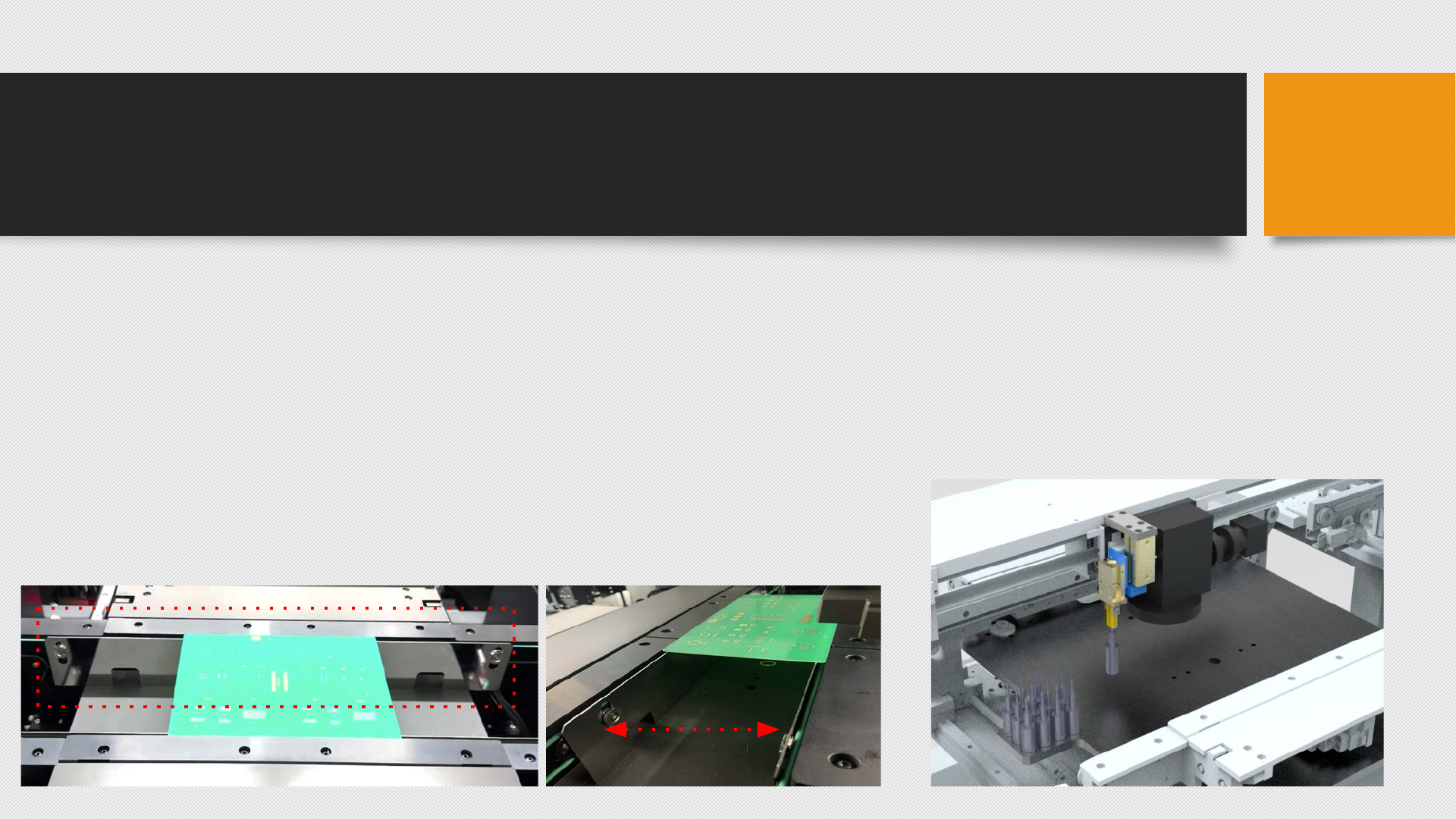

Auto Side lifter system
Automatic Support Pin Placement
OPTION
Automatic Pin Placement is to precisely place and remove
pins.
Pin location can be designated by User with Gerber file.
Pin positions are software programmable ensures quick, easy
and repeatable product changeover
For much perfect PCB edge support and a magnetic support
plate or pin can not support PCB edge,
Auto side lifer (2 blades) system can be applied

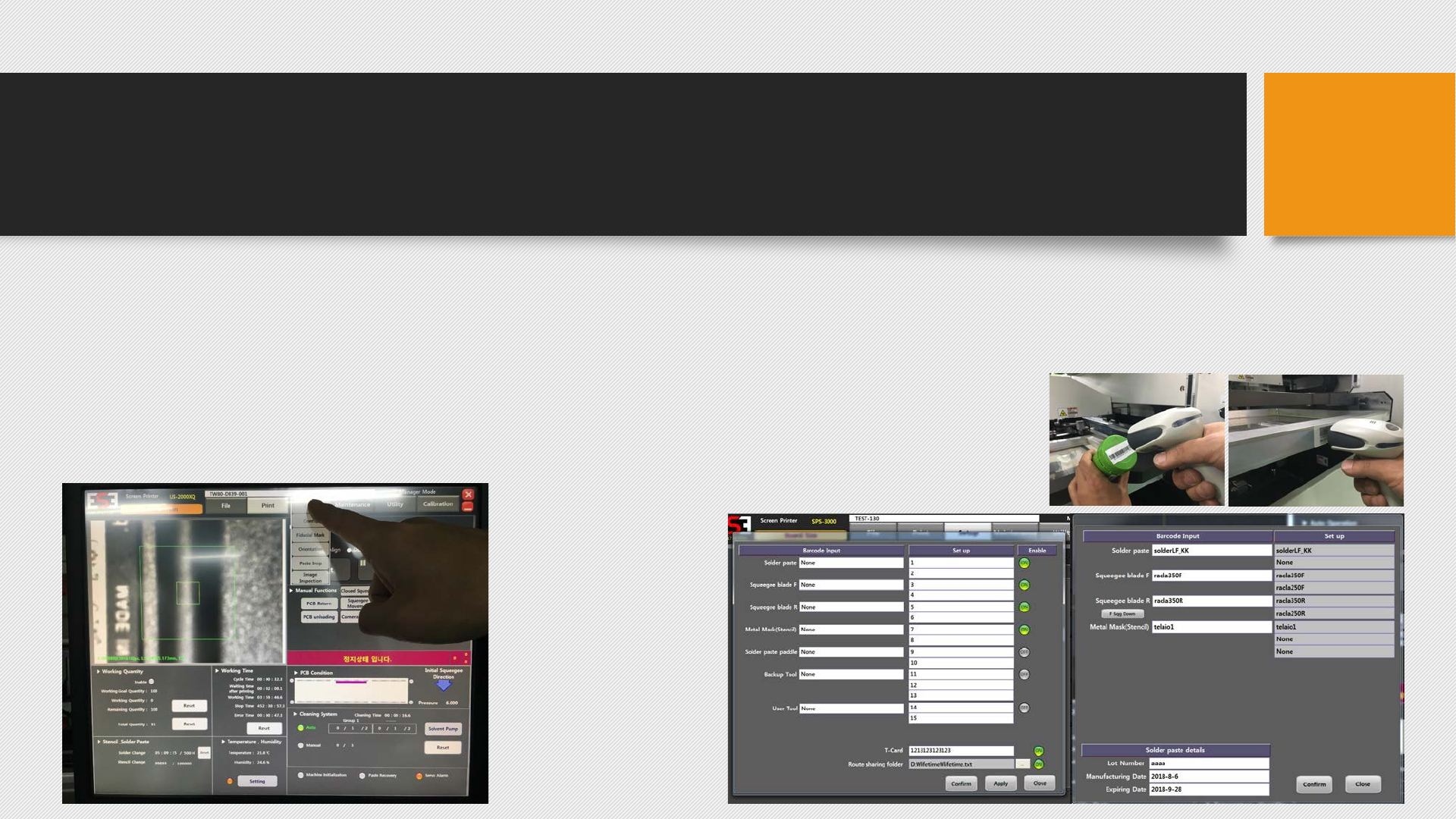

Touch Screen Monitor
Barcode Management ( Scanner + SW )
OPTION
Touch screen Monitor
All program menu touch
With Barcode managing system, Customer can manage each production materials _
Stencil, Solder, Squeegee ETC.
All data can be saved on FDC file
