Professional Large Printer E8. US-LX E8. LX The automatic stencil printing system E8 based on Standard E2 & E7 platform was developed to cover LED, LCD and much larger substrate up to 850mm. As a qualified profession…
Back-to-Back and High- speed Printer
H1 and H2
ES-H1 ES-H2
PCB size
50mm x 50mm - 350mm x 250mm
[ * Optional 380mm x 280mm ]
50mm x 50mm - 550mm x 400mm
PCB Thickness 0.3mm to 6mm 0.3mm to 6mm
Stencil size 550mm, 584mm (23”), 650mm 550mm, 584mm (23”), 650mm, 736mm(29”)
Core Cycle time 5sec / under optimized condition 6sec / under optimized condition
Alignment accuracy ±12.5 um @ 6 sigma ±10 um @ 6 sigma
Printing repeatability ±25 um @ 6 sigma , Cpk ≥2.0 ±20 um @ 6 sigma , Cpk ≥2.0
H1 Ultimate cycle time [ core 5sec ] and Qualified printing
quality & repeatability printer [ 20um@6sigma ] for single or
back-to-back configurable printer
Much high productivity for single products – Top & Bottom
printing together on each lane
Linear motor applied for stable & fast camera and 3 stages
conveyor system as standard
H2 realizes super cycle time based on ESE own technology
[ core cycle time – 5.5~6 sec and including cleaning – 10sec under ESE
optimized condition ]
The most stable mechanical structure and printing performance with
machine alignment 10microns and repeatability 20microncs will make you
cut down sharply your production time and much higher productivity
Linear motor applied for stable & fast camera and 3 stages conveyor system
as standard
H1. H2
Professional Large Printer
E8. US-LX
E8. LX
The automatic stencil printing system E8 based on Standard E2 & E7 platform was developed to cover LED, LCD and
much larger substrate up to 850mm.
As a qualified professional large printer by a leading LED, LCD customers, E8 includes all standard E2 & E7 printer features
& function and most flexible system in this industry field.
Up to 10kgs* substrate weight on E8 can be handled and flexible design allows customer mask stencil size loading
including ESE standard configuration (Optional)
Including Standard clamping system, special designed side vacuum clamp tool kit supports much perfect board
clamping and printing result from a warpage
All LX printer - an effective X direction printing & cleaning applied
ES-E8 US-LX1 US-LX3 US-LX5
PCB size 70mm x 70mm - 850mm x 610mm 100mm x 80mm - 1000mm x 650mm 100mm x 80mm - 1300mm x 650mm 100mm x 80mm - 1500mm x 650mm
PCB Thickness 0.3mm to 6mm 0.3mm to 6mm 0.3mm to 6mm 0.3mm to 6mm
Stencil size
736mm(29”), 800mm, 850mm, 980mm,
1050mm x 850mm
736mm(29”), 980mm, 1300mm x 800mm
736mm(29”), 980mm,
1500mm x 800mm
736mm(29”), 980mm,
1800mm x 800mm
Cycle time 17sec 35sec / 1000mm PCB 40sec / 1000mm PCB 45sec / 1000mm PCB
Alignment accuracy ±12.5 um @ 6 sigma ±12.5 um @ 3 sigma ±12.5 um @ 3 sigma ±12.5 um @ 3 sigma
Printing repeatability ±25 um @ 6 sigma ±25 um @ 3 sigma , Cpk ≥1.33 ±25 um @ 3 sigma , Cpk ≥1.33 ±25 um @ 3 sigma , Cpk ≥1.33

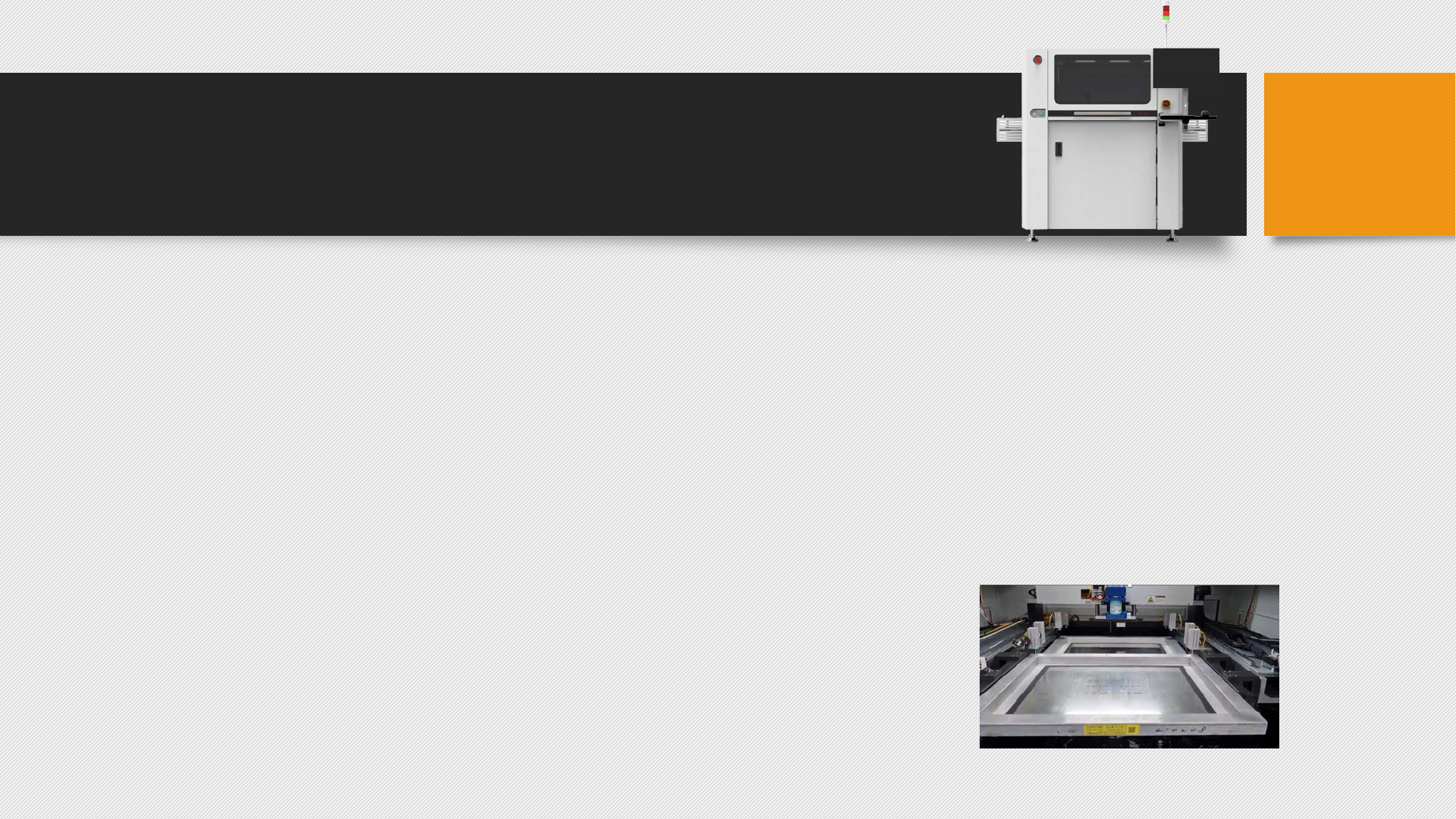

Automatic Stencil Changeover Printer
FA1
FA1
FA1 s made with ESE strong R&D and the fruit of ESE’s passion integrated a state of the art and advanced technology
As the leading for industry 4.0, it has been upgraded from US-2000FA and XF which had been developed by a closed
cooperation between Samsung Electronics & ESE in 2012.
FA1 is the unique functional printer and should facilitate Mask stencil automatic change, fully integrated PCB support
tools and a perfect cleaning system
Auto solder paste dispenser, traceable ESE standard format of MES, SPI closed loop, software managed by barcode etc
the built in various and innovated options included.
The active and advanced intelligent FA1 can realize your production line of becoming much more Smart line based on
two way communication between manager and production line and it will guide much high productivity,
Maximize managing efficiency and help you to implement a real Industry 4.0 and Smart factory.
And also FA1 can be configured as Back-to-Back for much higher productivity
PCB size 50mm x 50mm - 350mm x 250mm
PCB Thickness 0.3mm to 6mm
Stencil size 584mm (23”) or 736mm (29”)
Cycle time 12sec (* Stencil Changeover – within 2min)
Alignment accuracy ±12.5 um @ 6sigma
Printing repeatability ±25 um @ 6 sigma , Cpk ≥2.0
Stencil Auto changeover
