Standard structure and Feature High precise 4 Ball screws with additional 3 shafts Servo Control Table axis for X, Y and Theta and also Z1 & Z2 Most stable & perfect structure to break up the printing pressure eq…
Automatic Stencil Changeover Printer
FA1
FA1
FA1 s made with ESE strong R&D and the fruit of ESE’s passion integrated a state of the art and advanced technology
As the leading for industry 4.0, it has been upgraded from US-2000FA and XF which had been developed by a closed
cooperation between Samsung Electronics & ESE in 2012.
FA1 is the unique functional printer and should facilitate Mask stencil automatic change, fully integrated PCB support
tools and a perfect cleaning system
Auto solder paste dispenser, traceable ESE standard format of MES, SPI closed loop, software managed by barcode etc
the built in various and innovated options included.
The active and advanced intelligent FA1 can realize your production line of becoming much more Smart line based on
two way communication between manager and production line and it will guide much high productivity,
Maximize managing efficiency and help you to implement a real Industry 4.0 and Smart factory.
And also FA1 can be configured as Back-to-Back for much higher productivity
PCB size 50mm x 50mm - 350mm x 250mm
PCB Thickness 0.3mm to 6mm
Stencil size 584mm (23”) or 736mm (29”)
Cycle time 12sec (* Stencil Changeover – within 2min)
Alignment accuracy ±12.5 um @ 6sigma
Printing repeatability ±25 um @ 6 sigma , Cpk ≥2.0
Stencil Auto changeover
Standard structure and Feature
High precise 4 Ball screws
with additional 3 shafts
Servo Control Table axis for
X, Y and Theta and also Z1 &
Z2
Most stable & perfect
structure to break up the
printing pressure equally and
to get a high printing quality
Most Stable & Perfect Table
Perfect Clamping
Auto calibration Squeegee Auto calibration Camera 3 stage conveyor Standard Wet. Dry. Vacuum
cleaning
Z ( Top ) clamp by precise
ball screw driven guides a
stable PCB loading and
much perfect PCB clamping
Center vacuum unit is for
individual support plate (JIG)
for very thin (less than 0.5mm
or 0.3mm) PCB and
whenever Users can put a
vacuum nest onto the table
Cylinder and Motor driven
printing head makes an
uniform printing result.
Depends on substrate
condition and solder paste,
standard squeegee or Easy
clip squeegee can be
applied.
Squeegee Z center position
auto calibration equipped
with software
Camera X and Y axis
driven & controlled by
ball screw and Servo
Camera recognizes a
mark on PCB and Stencil
at a time
Field of View 11mm x
8mm
The smallest Mark size is
0.1mm
For high throughput,
standard 3 stages
conveyor system
Automatic Width
adjustment system
Standard Dual vacuum. Wet. Dry
cleaning system
No clog solvent nozzle and even
solvent spray
Cleaning speed and Cleaning
mode (direction, repeat, group etc)
can be programmable

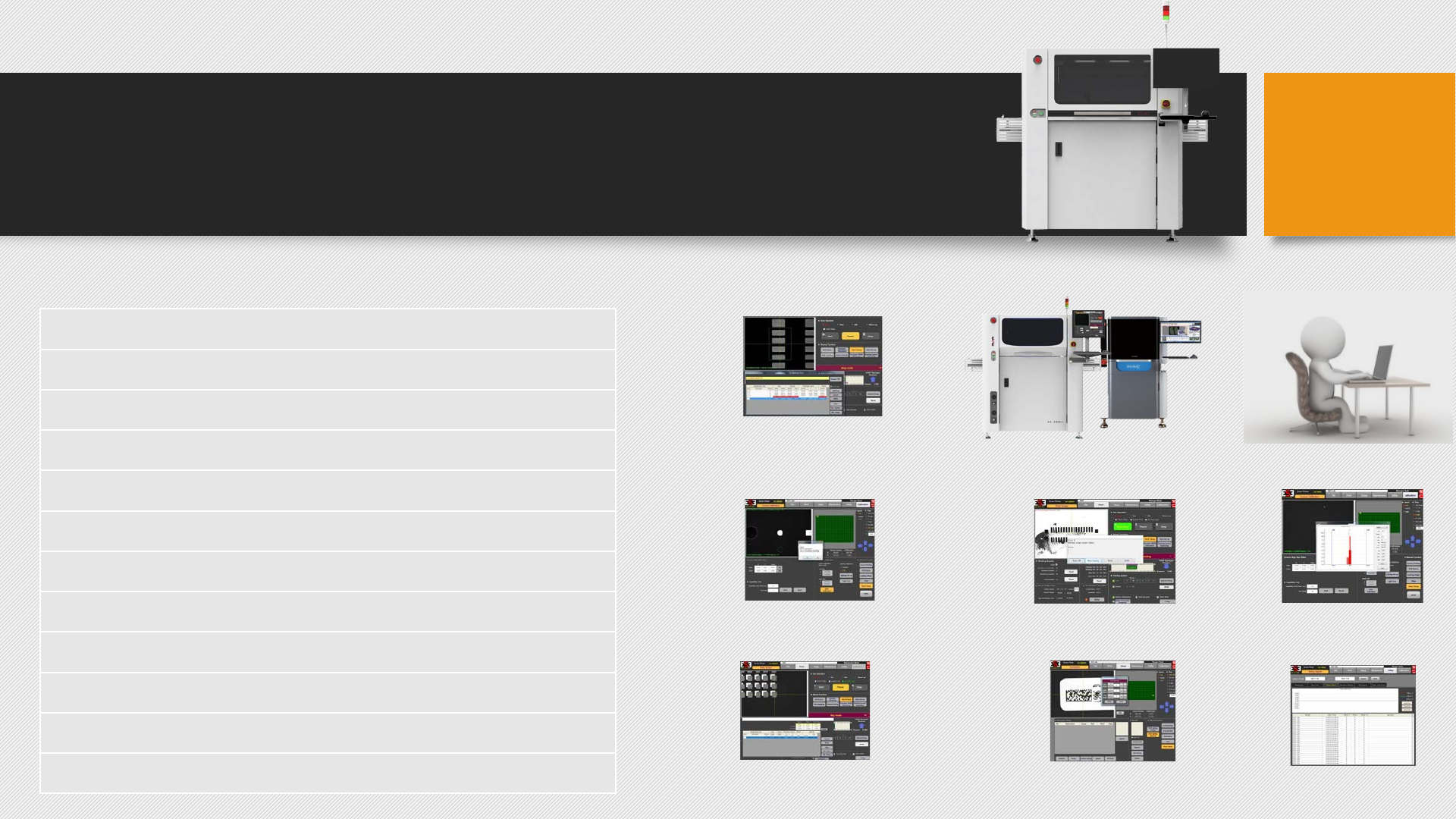

ES-E & H
Standard Enhanced Program
ES-E & H
* 2D inspection for solder excess, less, short and position error
* SPI closed loop with Kohyong, Parmi, TRI, Pemtron, Cyberoptics
* Production programming by network
* Auto stencil loading & positioning
* Auto camera calibration
* Auto Alignment before production (Easy Align)
* Auto stencil inspection & cleaning for a containment area
* Auto Squeegee center position calibration
* Auto Alignment accuracy measuring for table & camera
* ESE standard MES data
* Program for Auto PCB support tooling for Gridlock, Quik-Tool
* PCB barcode traceability by vision camera
2D inspection
Less, Excess, Bridge, Position
SPI close loop
Auto Camera calibration
Auto Stencil Inspection
Auto Alignment
Accuracy measuring
Auto Alignment
PCB barcode traceability
ESE standard MES data
Program by network
