Installation Manual OIS 9.1 / Installati onsanleitung OIS 9.1 Ausgabe 02/2011 Edition 3.7 Identify S t ation (only OIS client) For a station to be monitored, it must be identified. For a station with station software ver…

Installation Manual OIS 9.1 / Installationsanleitung OIS 9.1 Ausgabe 02/2011 Edition

3.6 System time (only OIS client)

The OIS operating data is stored using the appropriate station´s system time. The SIS operating data are

stored with the server system time. Therefore, it is important that the system time on all station computers

is synchronized to allow the operating data to be evaluated correctly. To do this, you must install a time

server client on each machine.

SIPLACE Explorer also requires the system time of the OIS and SIS operating data to be synchronized.

Note:

To synchronized the system time, install the current version of TimeSync.

TimeSync is not included in the OIS package.

TimeSync is provided on the Support Media DVD. In the software guide (00194669-xx)

you find detailed information for the installation of TimeSync.

Installation Manual OIS 9.1 / Installationsanleitung OIS 9.1 Ausgabe 02/2011 Edition

3.7 Identify Station (only OIS client)

For a station to be monitored, it must be identified.

For a station with station software version 70x, the station identification is not necessary.

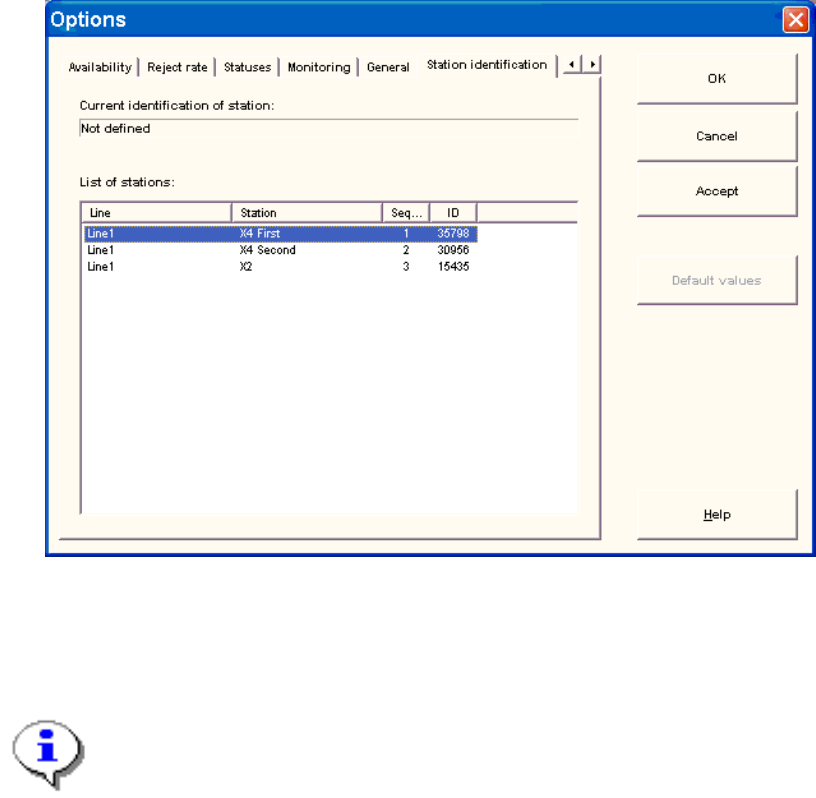

¾ Select the Station identification item from the Options menu.

¾ Select the appropriate station in the OIS client from the list.

¾ Double-click the station to identify it.

¾ Close the dialog by clicking OK.

Note:

To select the station, the line configuration must be created first on the OIS server using

OIS Line Config, see the Administration Guide (item number 00196790-01).

Installation Manual OIS 9.1 / Installationsanleitung OIS 9.1 Ausgabe 02/2011 Edition

1 Lieferumfang

SIPLACE

OIS Applikation V9.1, Artikelnummer 00388671-01 ist enthalten in "SIPLACE Pro

Medienpaket V9.2", Artikelnummer 00116511-01 und enthält:

Anzahl Artikel

1 CD-ROM mit OIS- und SIS-Software V9.1

Lizenzen für SIPLACE Pro-Versionen < 7.1

(siehe Abschnitt 0)

1 Installationsanleitung (00196792-01)

2 DVD1/DVD2 Support Media

Hinweis zur Support Media DVD:

Bitte verwenden Sie das Dokument "Navigation Guide for the Installation Procedure of

SIPLACE Software Systems" (Art. Nr. 00195050-xx) zum Navigieren durch die

Dokumentation.

Der Navigation Guide sowie alle Dokumente, auf die verwiesen wird, sind auf den Support

Media DVDs verfügbar, die mit dem SIPLACE Pro / OIS Package ausgeliefert werden.
