MODEL PXH-1 1006-003 55 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 2 6301434537 SOLENOID V AL VE 1 Y70,71 831F A-1 10-002 4L810342 5 6300888850 AIR LINE EQPT 4 831F A-1 10-005 225B0346 9 6300888867 V AL VE…
MODEL PXH-1
1006-003
54
73
See Fig.F-1
Key No.16
See Fig.F-1
Key No.12
73
74
75
22
25
72
71
69
82
71
72
71
72
20
21
70
81
80
79
23
68
67
65
78
67
65
76
75
74
76
67
68
19
33
16
15
14
.
17
78
67
65
66
11
10
12
30
9
11
2
80
81
83
67
68
65
32
See Fig.FB-1
Key No.25
See Fig.FB-1
Key No.15
10
5

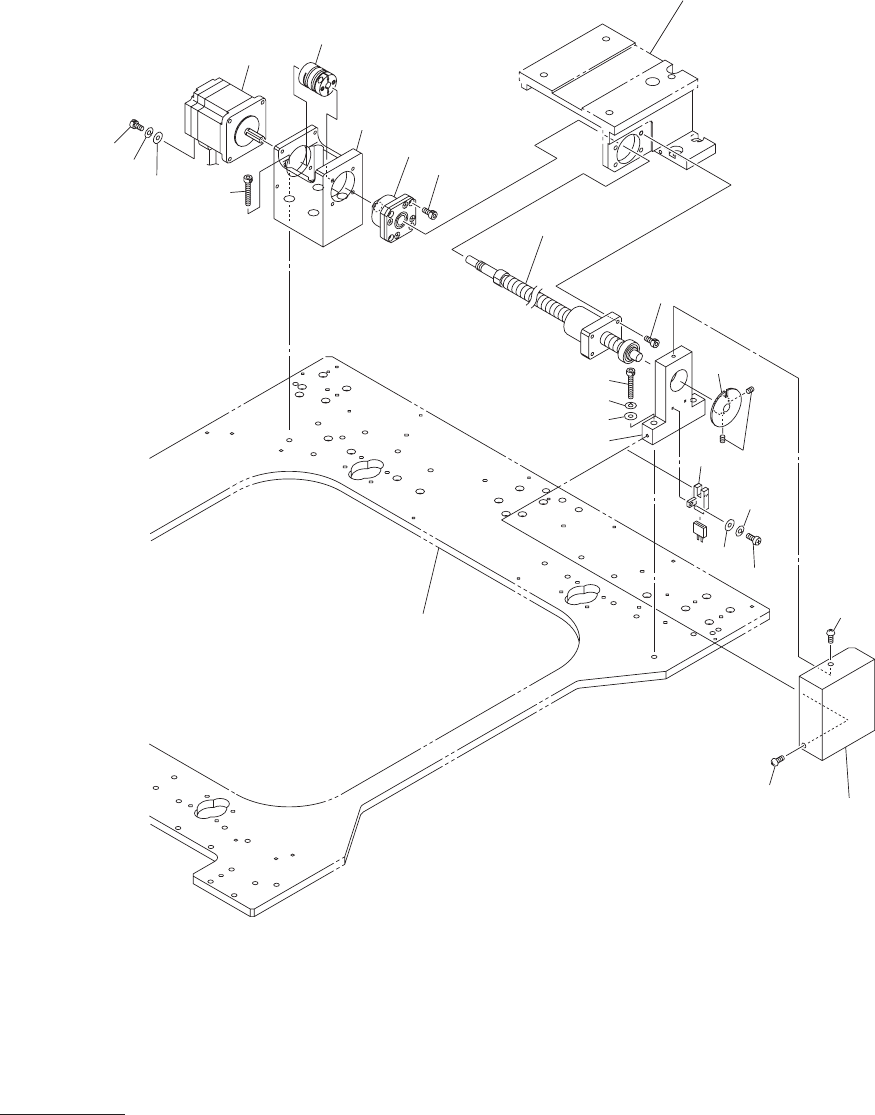

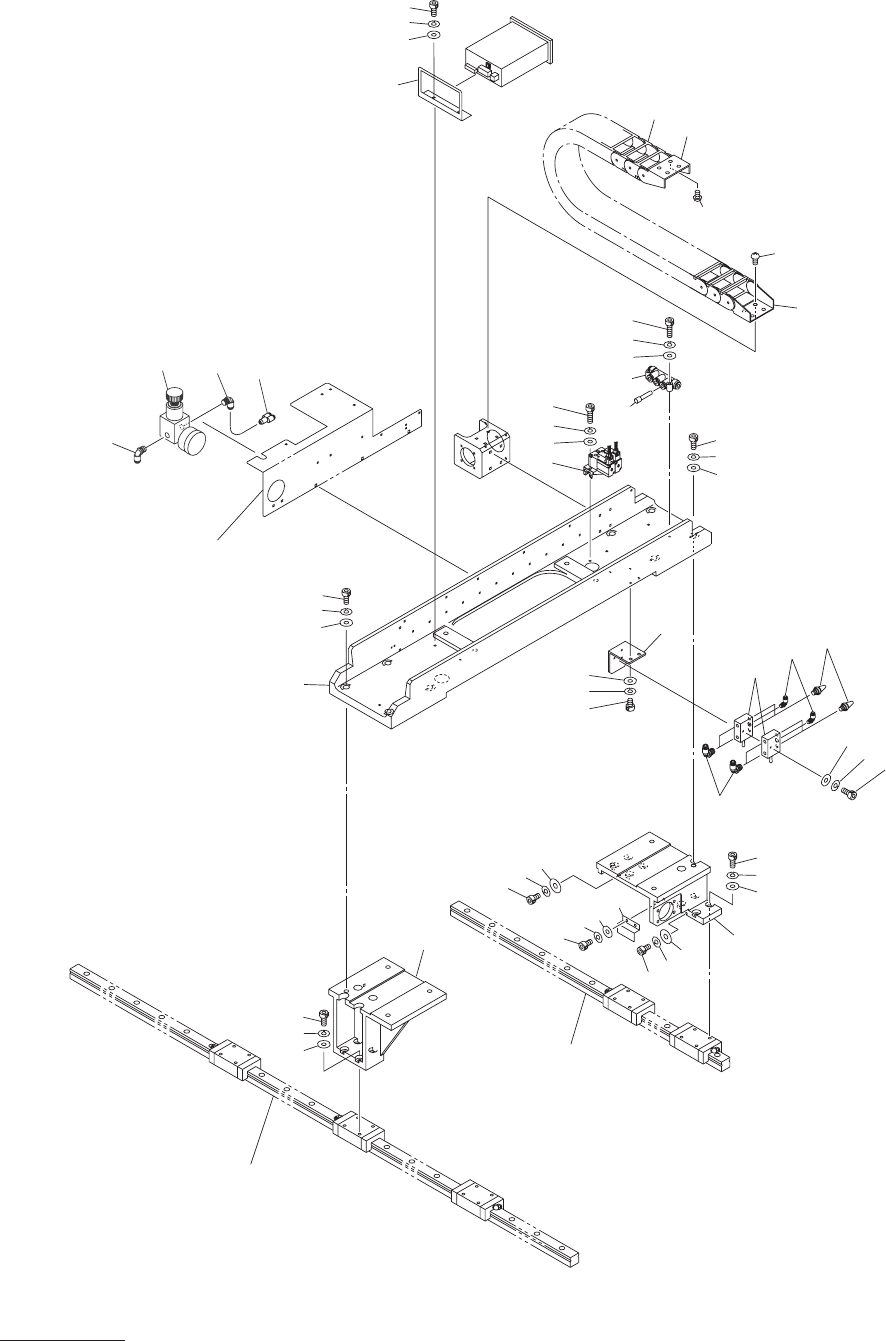

スキージヘッド部
SQUEEGEE HEAD SECTION
Fig. FA-1
スキージヘッドベース
Squeegee Head Base
MODEL PXH-1
1006-003
55
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
2 6301434537 SOLENOID VALVE 1 Y70,71 831FA-110-002 4L810342
5 6300888850 AIR LINE EQPT 4 831FA-110-005 225B0346
9 6300888867 VALVE 2 831FA-110-009 225C0058
10 6300690538 PIPE FITTINGS 3 831FA-110-010 225F0307
11 6300884432 PIPE FITTINGS 5 831FA-110-011 225F0368
12 6300928457 AIR LINE EQPT 1 831FA-110-012 225B0354
14 6301026305 MECH PARTS 1 831FA-110-014 226J1299
15 6300883718 MECH PARTS 1 831FA-110-015 226J0872
16 6300883725 MECH PARTS 1 831FA-110-016 226J0873
17 6300883749 MECH PARTS 4 831FA-110-017 226J0875
19 6300928167 AIR LINE EQPT 1 831FA-110-019 225B0351
20 6301030074 FRAME 1 831FA-110-020 210B3009
21 6301425061 FRAME 1 831FA-110-021 210B3971
22 6301419831 FRAME 1 831FA-110-022 210B3956
23 6300880205 STAY 1 831FA-110-023 211J0861
25 6301418223 STAY 1 831FA-110-025 211J1338
30 6300817508 PIPE FITTINGS 1 831FA-110-030 225F0360
32 6301420721 BRACKET 1 831FA-110-032 211FA341
33 6300037791 PIPE FITTINGS 1 831FA-110-033 225F0064
65 6300007626 BOLT,HEX-SCT 6 M4X10 221A0017
66 6300007671 BOLT,HEX-SCT 2 M4X25 221A0022
67 4111412905 WASHER SPR 4 8 SW4 221H0284
68 4111414008 WASHER V 4X9X0.8 6 FW4 221H0315
69 6300007749 BOLT,HEX-SCT 2 M5X10 221A0029
70 6300007770 BOLT,HEX-SCT 8 M5X20 221A0032
71 4111416705 WASHER SPR 5 14 SW5 221H0287
72 4111414107 WASHER V 5X10X1 14 FW5 221H0318
73 4111139109 SCR TRS 5X10 8 M5X10 TRS 221E0534
74 6300008012 BOLT,HEX-SCT 8 M8X20 221A0056
75 4111413100 WASHER SPR 8 8 SW8 221H0291
76 4111414503 WASHER V 8X17X1.6 8 FW8 221H0323
78 6300010213 WASHER 2 BW4 221H0004
79 6300007596 BOLT,HEX-SCT 3 M3X35 221A0014
80 4111412806 WASHER SPR 3 5 SW3 221H0281
81 4111413902 WASHER V 3X7X0.5 5 FW3 221H0312
82 6300007787 BOLT,HEX-SCT 4 M5X25 221A0033
83 6300007565 BOLT,HEX-SCT 2 M3X20 221A0011
FA-1
MODEL PXH-1
1006-003
56
164
166
167
169
101
102
107
103
164
104
169
See Fig.F-1
Key No.17
See Fig.
F A- 1
Key No.20
170
171
109
162
1 1 0
105
163
111
163
168
173
172
161
スキージヘッド部
SQUEEGEE HEAD SECTION
Fig. FA-2
スキージヘッドＹ部
Squeegee Head Y Axis
