MODEL PXH-1 1006-002 112 262 217 207 21 1 21 1 218 201 201 202 201 205 203 206 201 202 204 209 262 216 262 207 271 266 271 238 263 208 273 215 267 268 261 217 218 201 209 266 208 273 263 271 261 268 267 239 202 201 206 2…

100%1 / 216
111
MODEL PXH-1
1006-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
201 6300884098 BEARING,RADIAL 8 831H--110-201 222D0332
202 6300912265 WASHER 4 831H--110-202 221H0125
203 6301425306 GEAR 2 831H--110-203 223E0435
204 6301425313 GEAR 2 831H--110-204 223E0436
205 6300068399 BUSH,BEARING 2 831H--110-205 222A0044
206 4110010201 RING E 5 2 831H--110-206 221K0098
207 6301068961 PULLEY,FLAT 4 831H--110-207 223M0036
208 6300028737 SPRING,TENSION 2 831H--110-208 222N0606
209 6300883831 SPRING PIN 2 831H--110-209 221J0049
210 0831200E ASSY_SENSOR 1 B45 831H--110-210 0831200E
211 6301201047 BELT,FLAT 2 831H--110-211 223H0141
212 0831200D ASSY_SENSOR 1 B44 831H--110-212 0831200D
213 6300884388 CYLINDER 1 831H--110-213 224C0410
214 6300035124 AIR LINE EQPT 2 831H--110-214 225B0001
215 6301065083 PLATE 2 831H--110-215 211D7503
216 6301393735 GUIDE 2 831H--110-216 212A2255
217 6301418063 PLATE 2 831H--110-217 211DB214
218 6301422480 PULLEY 2 831H--110-218 213B0202
220 6301013350 LEVER 1 831H--110-220 216S2220
221 6301013367 LEVER 1 831H--110-221 216S2221
222 6301393766 BRACKET 1 831H--110-222 211FA033
223 6300880892 BRACKET 1 831H--110-223 211F4895
224 6300768916 PIPE FITTINGS 2 831H--110-224 225F0328
225 6300817508 PIPE FITTINGS 2 831H--110-225 225F0360
226 6300928082 PIPE FITTINGS 2 831H--110-226 225F0376
227 6301490045 BRACKET 1 831H--110-227 211FB227
261 6300007886 BOLT,HEX-SCT 4 M6X16 221A0043
262 6300007619 BOLT,HEX-SCT 20 M4X8 221A0016
263 6300007633 BOLT,HEX-SCT 2 M4X12 221A0018
265 6300007657 BOLT,HEX-SCT 4 M4X16 221A0020
266 6300007671 BOLT,HEX-SCT 2 M4X25 221A0022
267 4111414305 WASHER V 6X12.5X1.6 4 FW6 221H0320
268 4111413001 WASHER SPR 6 4 SW6 221H0289
269 4111414008 WASHER V 4X9X0.8 6 FW4 221H0315
270 4111412905 WASHER SPR 4 10 SW4 221H0284
271 4111410307 NUT HEX 4 4 M4 221F0082
273 6300082296 SET SCREW 2 M4X4 SET 221C0027
274 4110407803 SCR PAN 3X12 2 M3X12 PAN 221E0489
275 4111191909 WASHER V 3X7X0.5 2 FW3 F 221H0311
276 4110864408 WASHER SPR 3 2 SW3 F 221H0280
278 4110392604 SCR PAN 2X6 2 M2X6 PAN 221E0483
H-3
MODEL PXH-1
1006-002
112
262
217
207
211
211
218
201
201
202
201
205
203
206
201
202
204
209
262
216
262
207
271
266
271
238
263
208
273
215
267
268
261
217
218
201
209
266
208
273
263
271
261
268
267
239
202
201
206
203
205
201
202
201
204
271
See Fig.H-4
Key No.323
See Fig.H-4
Key No.322
216
215
262
293
241
282
240
230
298
282
289
288
294
293
242
237
296
295
232
289
288

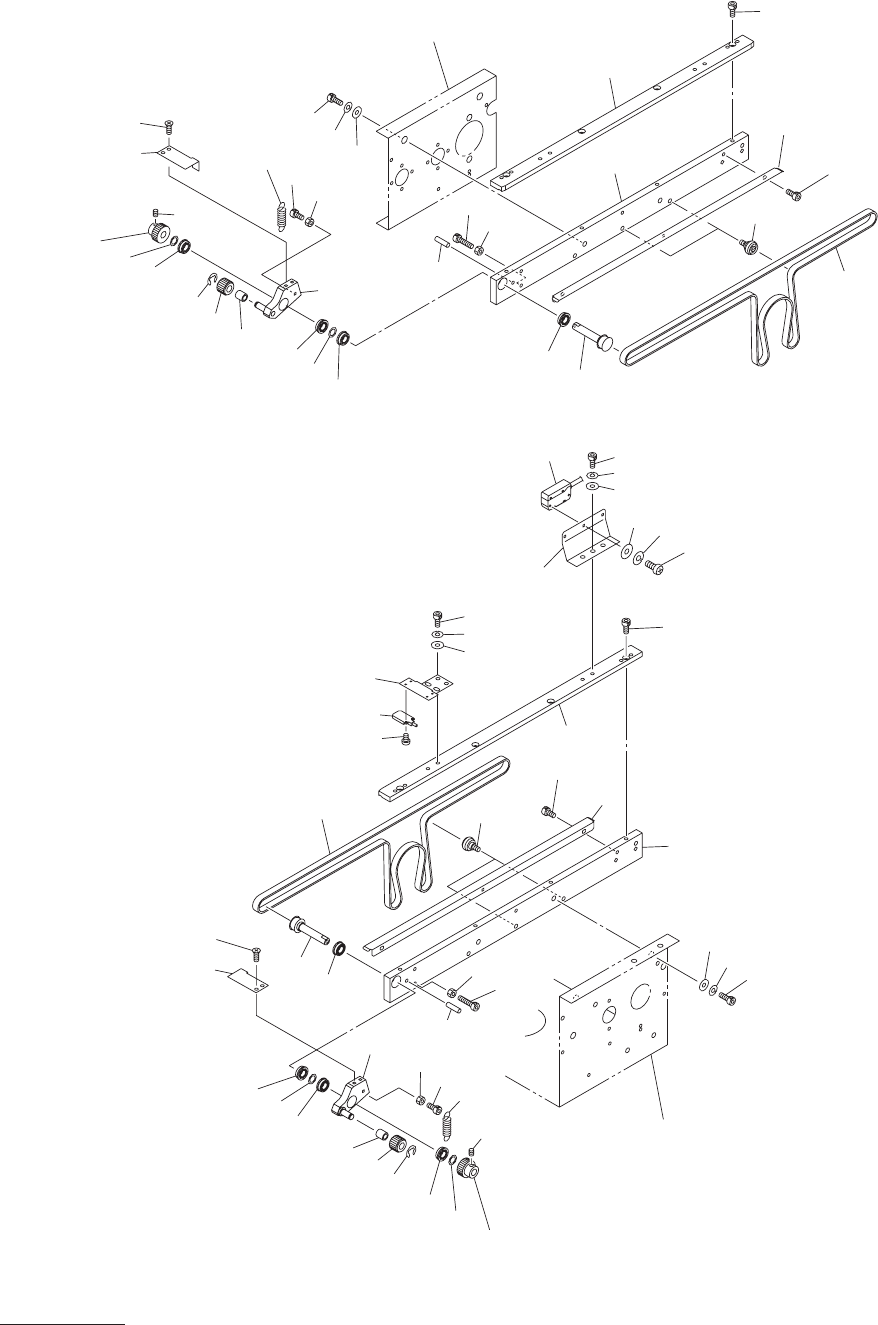

コンベア部
CONVEYOR SECTION
Fig. H-3 R
コンベア搬送部
R Conveyor Transfer Section
( 手前基準、右流れ）
(Front Reference, Right Flow)
113
MODEL PXH-1
1006-002
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
H-3
201 6300884098 BEARING,RADIAL 8 831H--110-201 222D0332
202 6300912265 WASHER 4 831H--110-202 221H0125
203 6301425306 GEAR 2 831H--110-203 223E0435
204 6301425313 GEAR 2 831H--110-204 223E0436
205 6300068399 BUSH,BEARING 2 831H--110-205 222A0044
206 4110010201 RING E 5 2 831H--110-206 221K0098
207 6301068961 PULLEY,FLAT 4 831H--110-207 223M0036
208 6300028737 SPRING,TENSION 2 831H--110-208 222N0606
209 6300883831 SPRING PIN 2 831H--110-209 221J0049
211 6301201047 BELT,FLAT 2 831H--110-211 223H0141
215 6301065083 PLATE 2 831H--110-215 211D7503
216 6301393735 GUIDE 2 831H--110-216 212A2255
217 6301418063 PLATE 2 831H--110-217 211DB214
218 6301422480 PULLEY 2 831H--110-218 213B0202
230 0831200C ASSY_SENSOR 1 B41 831H--110-010 0831200C
232 0831200B ASSY_SENSOR 1 B40 831H--110-012 0831200B
237 6301490038 BRACKET 1 831H--110-017 211FB226
238 6301013336 LEVER 1 831H--110-018 216S2218
239 6301013343 LEVER 1 831H--110-019 216S2219
240 6301393759 BRACKET 1 831H--110-020 211FA032
241 6301398426 BRACKET 1 831H--110-021 211FA075
242 6301398433 BRACKET 1 831H--110-022 211FA076
261 6300007886 BOLT,HEX-SCT 4 M6X16 221A0043
262 6300007619 BOLT,HEX-SCT 14 M4X8 221A0016
263 6300007633 BOLT,HEX-SCT 2 M4X12 221A0018
266 6300007671 BOLT,HEX-SCT 2 M4X25 221A0022
267 4111414305 WASHER V 6X12.5X1.6 4 FW6 221H0320
268 4111413001 WASHER SPR 6 4 SW6 221H0289
271 4111410307 NUT HEX 4 4 M4 221F0082
273 6300082296 SET SCREW 2 M4X4 SET 221C0027
282 6300007619 BOLT,HEX-SCT 4 M4X8 221A0016
288 4111414008 WASHER V 4X9X0.8 4 FW4 221H0315
289 4111412905 WASHER SPR 4 4 SW4 221H0284
293 4110352707 SCR FLT 4X8 4 M4X8 FLT 221D0225
294 4110407803 SCR PAN 3X12 2 M3X12 PAN 221E0489
295 4111191909 WASHER V 3X7X0.5 2 FW3 F 221H0311
296 4110864408 WASHER SPR 3 2 SW3 F 221H0280
298 4110392604 SCR PAN 2X6 2 M2X6 PAN 221E0483
