128 MODEL PXH-1 1006-003 1 1 19 18 4 75 79 1 1 71 8 9 80 77 76 5 20 7 71 72 66 14 80 77 76 5 71 72 83 64 72 71 82 3 15 72 71 14 66 72 71 7 12 64 16 71 72 83 82 62 10 70 69 71 72 67 9 8 81 72 67 78 71 72 67 6 13 1 23 2 69…
127
MODEL PXH-1
1006-003

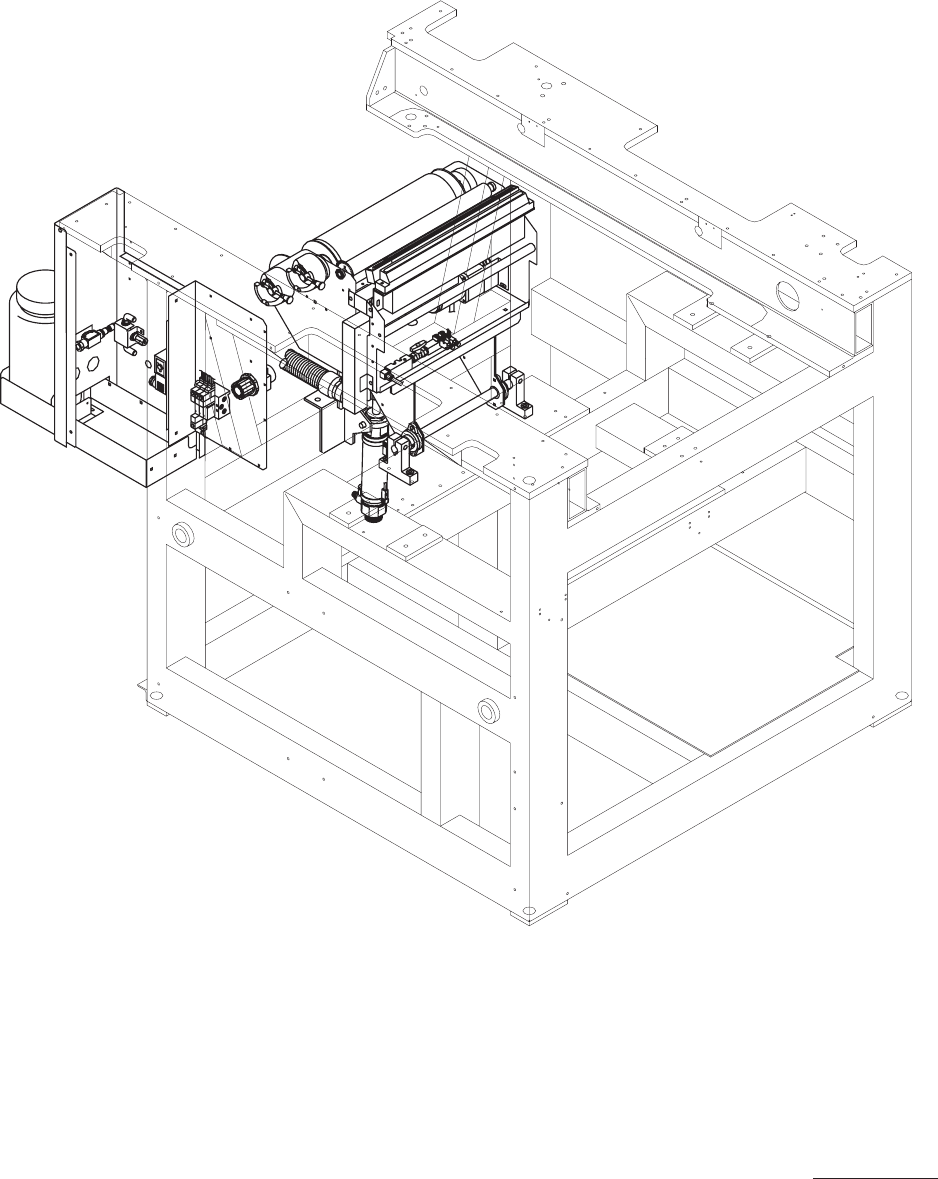

Fig. M
クリーニング部
CLEANING SECTION
128
MODEL PXH-1
1006-003
11
19
18
4
75
79
11
71
8
9
80
77
76
5
20
7
71
72
66
14
80
77
76
5
71
72
83
64
72
71
82
3
15
72
71
14
66
72
71
7
12
64
16
71
72
83
82
62
10
70
69
71
72
67
9
8
81
72
67
78
71
72
67
6
13
1
23
2
69
70
84
22
69
70
84
A
B
A
B
78
73
74
68
85
クリーニング部
CLEANING SECTION

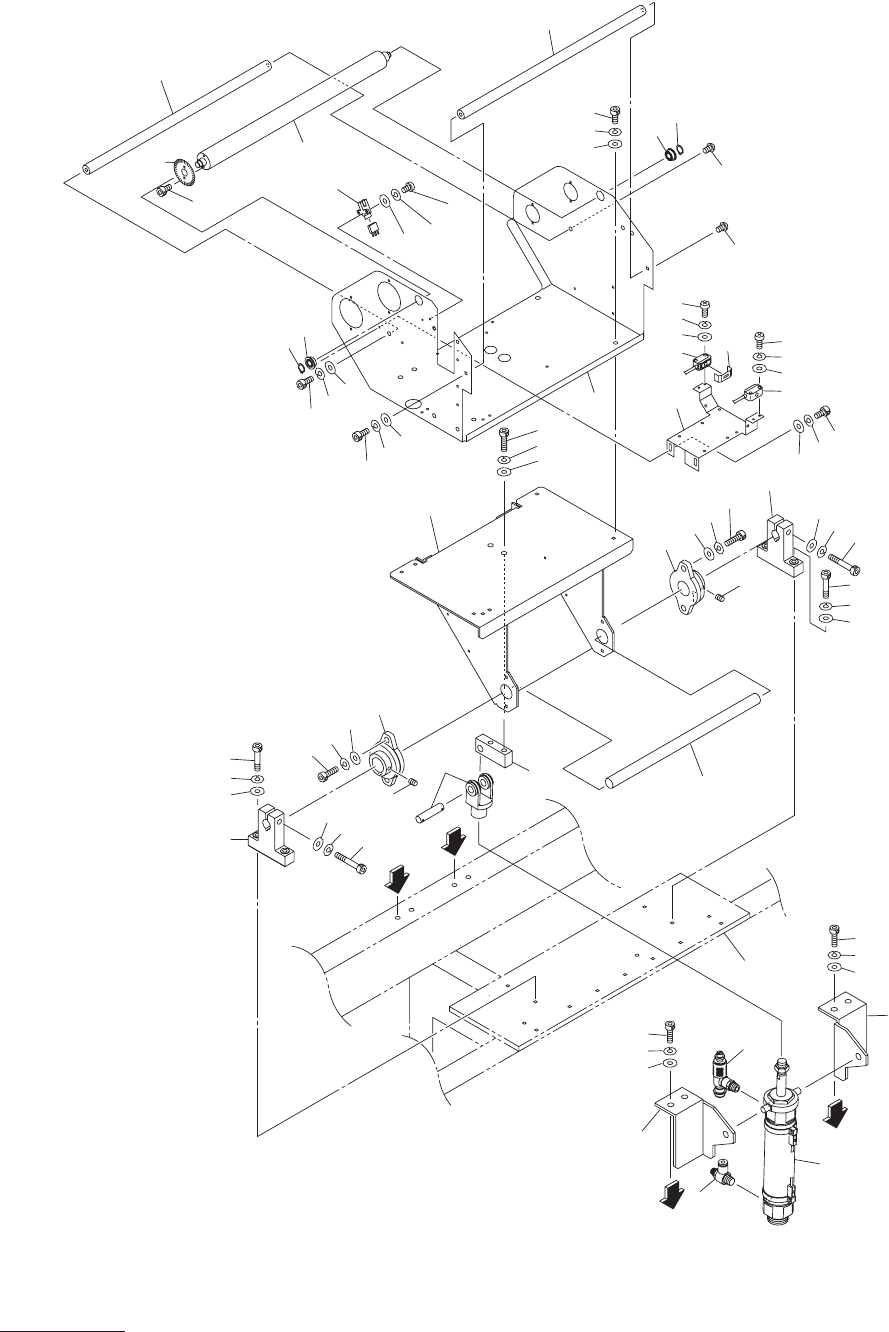

Fig. M-1
クリーニングベース
Cleaning Base
129
MODEL PXH-1
1006-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
1 6301316819 CYLINDER 1 B84,85 831M--110-001 224C0557
2 6300035223 AIR LINE EQPT 1 831M--110-002 225B0005
3 6300966626 MECH PARTS 1 831M--110-003 226J1021
4 6300325287 SENSOR,PHOTO 1 B86 831M--110-004 23G10029
5 6300717709 SENSOR,PELEC 1 B87,B87T 831M--110-005 23G00146
6 6300717723 SENSOR,PELEC 1 831M--110-006 23G00148
7 6301410340 BEARING,UNIT 2 831M--110-007 222F0101
8 6300965209 BEARING,RADIAL 2 831M--110-008 222D0341
9 6300965216 RING 2 831M--110-009 221K0038
10 6301420202 FRAME 1 831M--110-010 210B3959
11 6301424569 SHAFT 2 831M--110-011 213A1280
12 6301419916 FRAME 1 831M--110-012 210B3957
13 6301416571 BRACKET 1 831M--110-013 211FA292
14 6301386492 HOLDER 2 831M--110-014 211G4206
15 6301398297 SHAFT 1 831M--110-015 213A1246
16 6301420233 BLOCK 1 831M--110-016 211G4402
18 6301423197 ROLLER 1 831M--110-018 213C0236
19 6301390321 PULLEY(SLIT) 1 831M--110-019 213D1237
20 6301420288 STAY 1 831M--110-020 211J1342
22 6301156088 AIR LINE EQPT 1 831M--110-022 225B0459
23 6301416588 BRACKET 1 831M--110-023 211FA293
62 6300008012 BOLT,HEX-SCT 2 M8X20 221A0056
64 6300007916 BOLT,HEX-SCT 4 M6X30 221A0046
66 6300007893 BOLT,HEX-SCT 4 M6X20 221A0044
67 6300007879 BOLT,HEX-SCT 6 M6X12 221A0042
68 6300007602 BOLT,HEX-SCT 2 M4X6 221A0015
69 4111414503 WASHER V 8X17X1.6 6 FW8 221H0323
70 4111413100 WASHER SPR 8 6 SW8 221H0291
71 4111414305 WASHER V 6X12.5X1.6 16 FW6 221H0320
72 4111413001 WASHER SPR 6 16 SW6 221H0289
73 4111414008 WASHER V 4X9X0.8 2 FW4 221H0315
74 4111412905 WASHER SPR 4 2 SW4 221H0284
75 4110864408 WASHER SPR 3 2 SW3 F 221H0280
76 4111412509 WASHER SPR 2 4 FW2 F 221H0307
77 4111413605 WASHER V 2X5X0.3 4 SW2 F 221H0276
78 4111139703 SCR TRS 6X10 2 M6X10 TRS 221E0538
79 4110418908 SCR PAN 3X6 2 M3X6 PAN 221E0497
80 221D0265 SCR PAN 2X12 4 M2X12 PAN 221D0265
81 4110505004 SCR TRS 3X6 2 M3X6 TRS 221E0529
82 6300008944 SET SCREW 2 M5X6 SET 221C0007
83 6300007923 BOLT,HEX-SCT 2 M6X35 221A0047
84 6300008005 BOLT,HEX-SCT 4 M8X16 221A0055
85 4111191909 WASHER V 3X7X0.5 2 FW3 F 221H0311
M-1
