13 MODEL PXH-1 1006-003 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 101 6301425566 GUIDE,LINEAR 1 831B--1 10-101 222L0803 102 6301400235 CAM FOLLOWER 1 831B--1 10-102 222H0138 103 6300884951 HOOK (POSTS L T…
MODEL PXH-1
0711-002
12
115
A
A
102
11
4
161
101
164
103
See Fig.B-1
Key No.10
See Fig.B-3
Key No.203
See Fig.B-1
Key No.2
11
1
177
123
162
169
165
168
125
128
11
2
168
169
166
107
11
6
174
108
177
178
176
123
168
11
7
11
3
169
163
164
164
105
106
162
162
11
8
180
181
179
185
181
180
171
11
0
169
168
165
178
176
104
184
183
182
177
178
176
テーブル部
TABLE SECTION

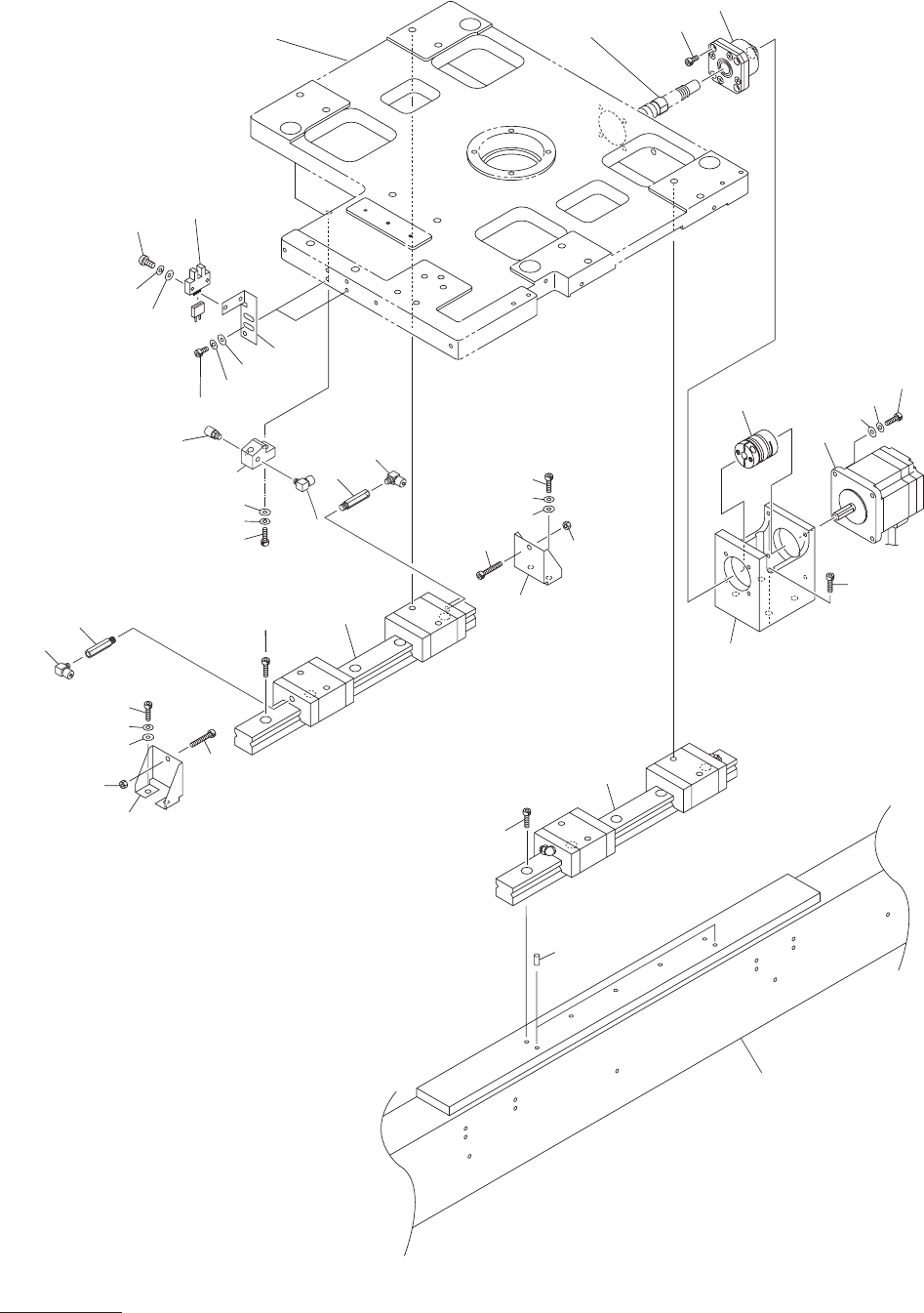

Fig. B-2
テーブル下部
Table Lower Section
13
MODEL PXH-1
1006-003
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
101 6301425566 GUIDE,LINEAR 1 831B--110-101 222L0803
102 6301400235 CAM FOLLOWER 1 831B--110-102 222H0138
103 6300884951 HOOK (POSTS L TYPE) 1 831B--110-103 216J0388
104 6301017280 SPRING,TENSION 1 831B--110-104 222N1259
105 6300051353 BEARING,UNIT 1 831B--110-105 222F0010
106 6301431772 COUPLING 1 831B--110-106 223C0226
107 6301400600 MOTOR,STEPPING 1 M21 831B--110-107 4M140154
108 6300885118 BALL SCREW 1 831B--110-108 223B0248
110 6301427164 BALL SCREW 1 831B--110-110 223B0391
111 6300884036 BEARING,RADIAL 1 831B--110-111 222D0326
112 6300883923 WASHER 1 831B--110-112 221H0122
113 6301422046 BLOCK 1 831B--110-113 211G4414
114 6300879070 PLATE 1 831B--110-114 211D5842
115 6301417707 PIN,HINGE 1 831B--110-115 216D0529
116 6301422152 BRACKET 1 831B--110-116 211FA367
117 6301386041 PLATE 1 831B--110-117 211DA763
118 6301422053 BASE 1 831B--110-118 210A2484
123 6301417622 BLOCK 4 831B--110-123 211G4379
125 6301428109 PLATE 1 831B--110-125 211FB327
128 6300907780 BRACKET 1 831B--110-128 211F4994
161 6300007558 BOLT,HEX-SCT 3 M3X16 221A0010
162 6300008920 SET SCREW 4 M4X6 SET 221C0005
163 6300007602 BOLT,HEX-SCT 2 M4X6 221A0015
164 6300007626 BOLT,HEX-SCT 12 M4X10 221A0017
165 6300007626 BOLT,HEX-SCT 4 M4X10 221A0017
166 6300007657 BOLT,HEX-SCT 4 M4X16 221A0020
168 4111414008 WASHER V 4X9X0.8 10 FW4 221H0315
169 4111412905 WASHER SPR 4 10 SW4 221H0284
171 6300007763 BOLT,HEX-SCT 4 M5X16 221A0031
174 6300007886 BOLT,HEX-SCT 4 M6X16 221A0043
176 6300007916 BOLT,HEX-SCT 10 M6X30 221A0046
177 4111414305 WASHER V 6X12.5X1.6 10 FW6 221H0320
178 4111413001 WASHER SPR 6 10 SW6 221H0289
179 6300008012 BOLT,HEX-SCT 1 M8X20 221A0056
180 4111414503 WASHER V 8X17X1.6 3 FW8 221H0323
181 4111413100 WASHER SPR 8 3 SW8 221H0291
182 6300008401 BOLT,HEX-SCT 4 M5X14 221A0095
183 4111414107 WASHER V 5X10X1 4 FW5 221H0318
184 4111416705 WASHER SPR 5 4 SW5 221H0287
185 6300008005 BOLT,HEX-SCT 2 M8X16 221A0055
B-2
MODEL PXH-1
1006-003
14
テーブル部
TABLE SECTION

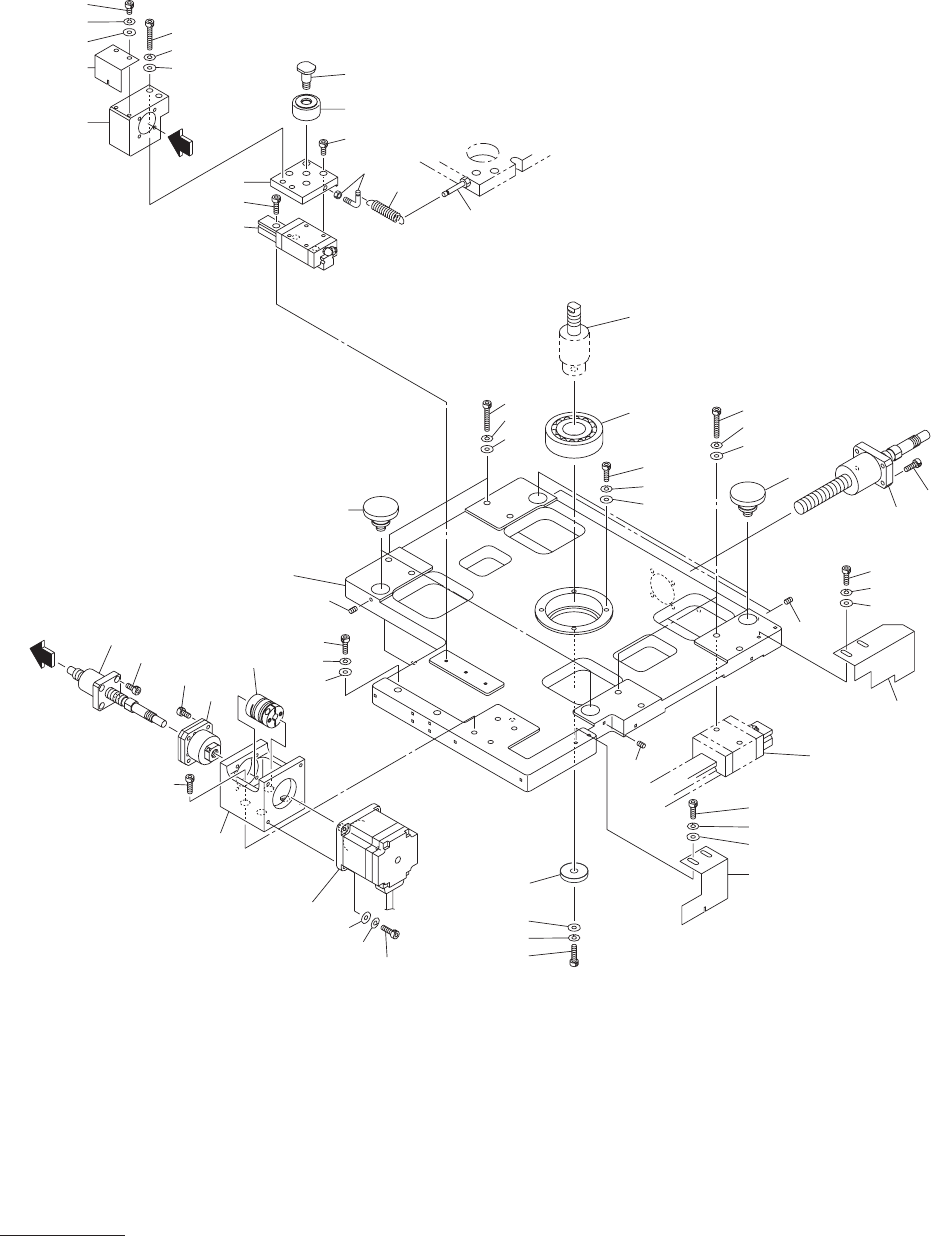

Fig. B-3
テーブルＸ軸
Table X Axis
270
268
269
270
268
269
272
273
209
205
277
See Fig.B-2
Key No. 1 1 8
See Fig.K-1
Key No.4
204
261
201
207
271
271
210
203
266
267
264
263
262
208
271
266
206
267
265
272
209
273
215
213
2 1 1
2 1 1
213
214
212
2 1 1
276
275
274
See Fig.B-2
Key No.
1 1 0
