MODEL PXH-1 1006-002 157 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE K-3 201 6300968255 AIR LINE EQPT 1 831K--1 10-201 225B0373 202 6300037814 PIPE FITTINGS 1 831K--1 10-202 225F0066 203 6300037791 PIPE FIT…
MODEL PXH-1
1006-002
156
メカ廻り
MECHANICAL DISTRIBUTION SECTION

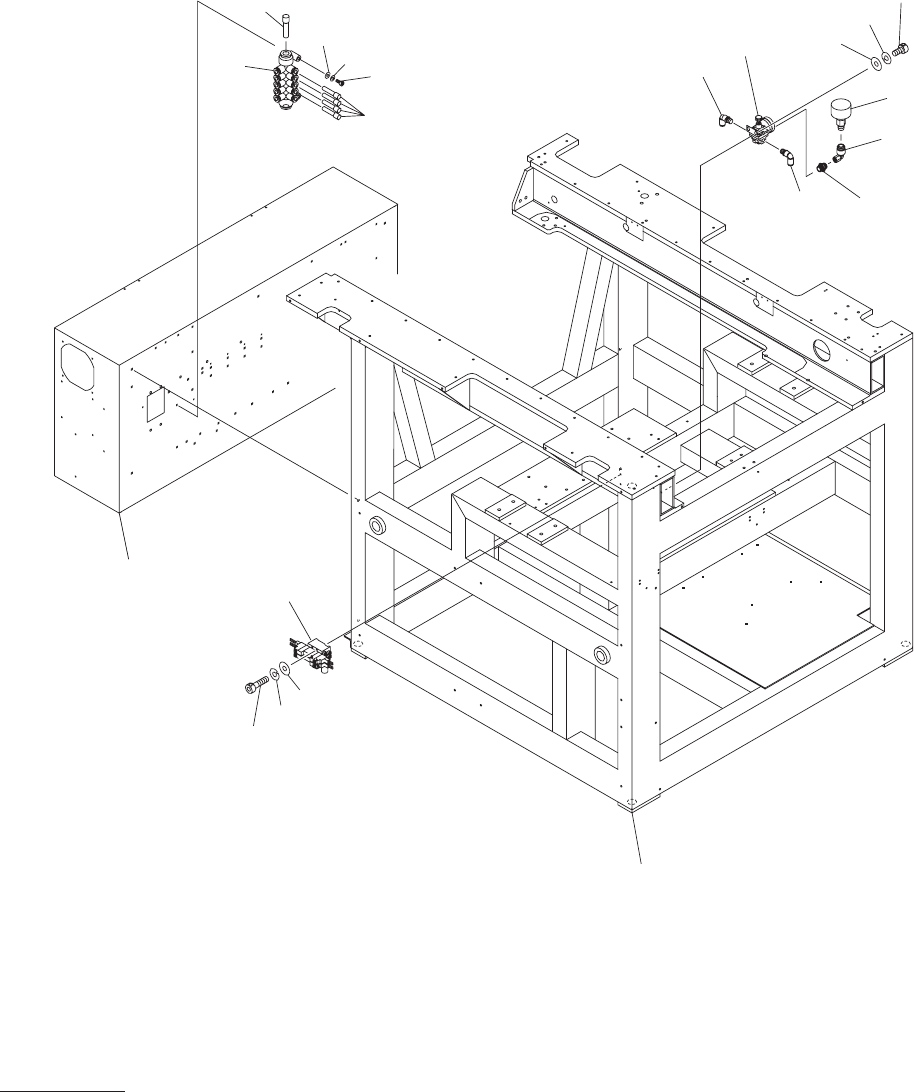

Fig. K-3
エア配管２
Air Piping 2
271
268
267
272
214
212
213
213
218
267
268
264
See Fig.K-1
Key No.4
See Fig BB-1
Key No.47
203
202
201
261
263
262
217
MODEL PXH-1
1006-002
157
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
K-3
201 6300968255 AIR LINE EQPT 1 831K--110-201 225B0373
202 6300037814 PIPE FITTINGS 1 831K--110-202 225F0066
203 6300037791 PIPE FITTINGS 4 831K--110-203 225F0064
212 6301437590 AIR LINE EQPT 1 831K--110-312 225B0539
213 6300968170 PIPE FITTINGS 2 831K--110-313 225F0407
214 6301321301 PIPE FITTINGS 1 831K--110-314 225F0617
217 6301437606 AIR LINE EQPT 1 831K--110-317 225B0540
218 0831610A ASSY_VALVE 1 Y56,57,58,59
831K--110-318 0831610A
261 6300007572 BOLT,HEX-SCT 2 M3X25 221A0012
262 4111413902 WASHER V 3X7X0.5 2 FW3 221H0312
263 4111412806 WASHER SPR 3 2 SW3 221H0281
264 6300007701 BOLT,HEX-SCT 2 M4X40 221A0025
267 4111414008 WASHER V 4X9X0.8 4 FW4 221H0315
268 4111412905 WASHER SPR 4 4 SW4 221H0284
271 6300007619 BOLT,HEX-SCT 2 M4X8 221A0016
272 6300928365 PIPE FITTINGS 1 831K--110-372 225F0384
MODEL PXH-1
1006-004
158
メカ廻り
MECHANICAL DISTRIBUTION SECTION
Fig. K-7 I/O
ボード、ケーブル
I/O Board, Cable
663
662
.
661
.
650
641
.
.
681
680
.
670
.
681
680
.
670
.
See Fig.K-1
Key No.4
650
641
642
655
657
656
651
653
652
DETAIL
DETAIL
See Fig.BB-7
Key No.668
See Fig.BB-6
Key No.501
B60
B61
B62
B63
X1064
X1068
B311
B314
Y70
Y78
B6A
X1072
B106F
N07-P1
N07-P2
N07-P4
N07-P3
B86
B87
B88
B8A
S80
S81
B83
B84
B85
Y90
Y99
Y91
Y93
N09-P1
N09-P2
N09-P4
N09-P3
N09
N07
N05-P3
Y56
N05-P4
S15
U04-X009
