P-257-004e - 第160页
MODEL PXH-1 1006-004 158 メカ廻り MECHANICAL DISTRIBUTION SECTION Fig. K-7 I/O ボード、ケーブル I/O Board, Cable 663 662 . 661 . 650 641 . . 681 680 . 670 . 681 680 . 670 . See Fig.K-1 Key No.4 650 641 642 655 657 656 651 653 652 DE…
MODEL PXH-1
1006-002
157
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
K-3
201 6300968255 AIR LINE EQPT 1 831K--110-201 225B0373
202 6300037814 PIPE FITTINGS 1 831K--110-202 225F0066
203 6300037791 PIPE FITTINGS 4 831K--110-203 225F0064
212 6301437590 AIR LINE EQPT 1 831K--110-312 225B0539
213 6300968170 PIPE FITTINGS 2 831K--110-313 225F0407
214 6301321301 PIPE FITTINGS 1 831K--110-314 225F0617
217 6301437606 AIR LINE EQPT 1 831K--110-317 225B0540
218 0831610A ASSY_VALVE 1 Y56,57,58,59
831K--110-318 0831610A
261 6300007572 BOLT,HEX-SCT 2 M3X25 221A0012
262 4111413902 WASHER V 3X7X0.5 2 FW3 221H0312
263 4111412806 WASHER SPR 3 2 SW3 221H0281
264 6300007701 BOLT,HEX-SCT 2 M4X40 221A0025
267 4111414008 WASHER V 4X9X0.8 4 FW4 221H0315
268 4111412905 WASHER SPR 4 4 SW4 221H0284
271 6300007619 BOLT,HEX-SCT 2 M4X8 221A0016
272 6300928365 PIPE FITTINGS 1 831K--110-372 225F0384
MODEL PXH-1
1006-004
158
メカ廻り
MECHANICAL DISTRIBUTION SECTION

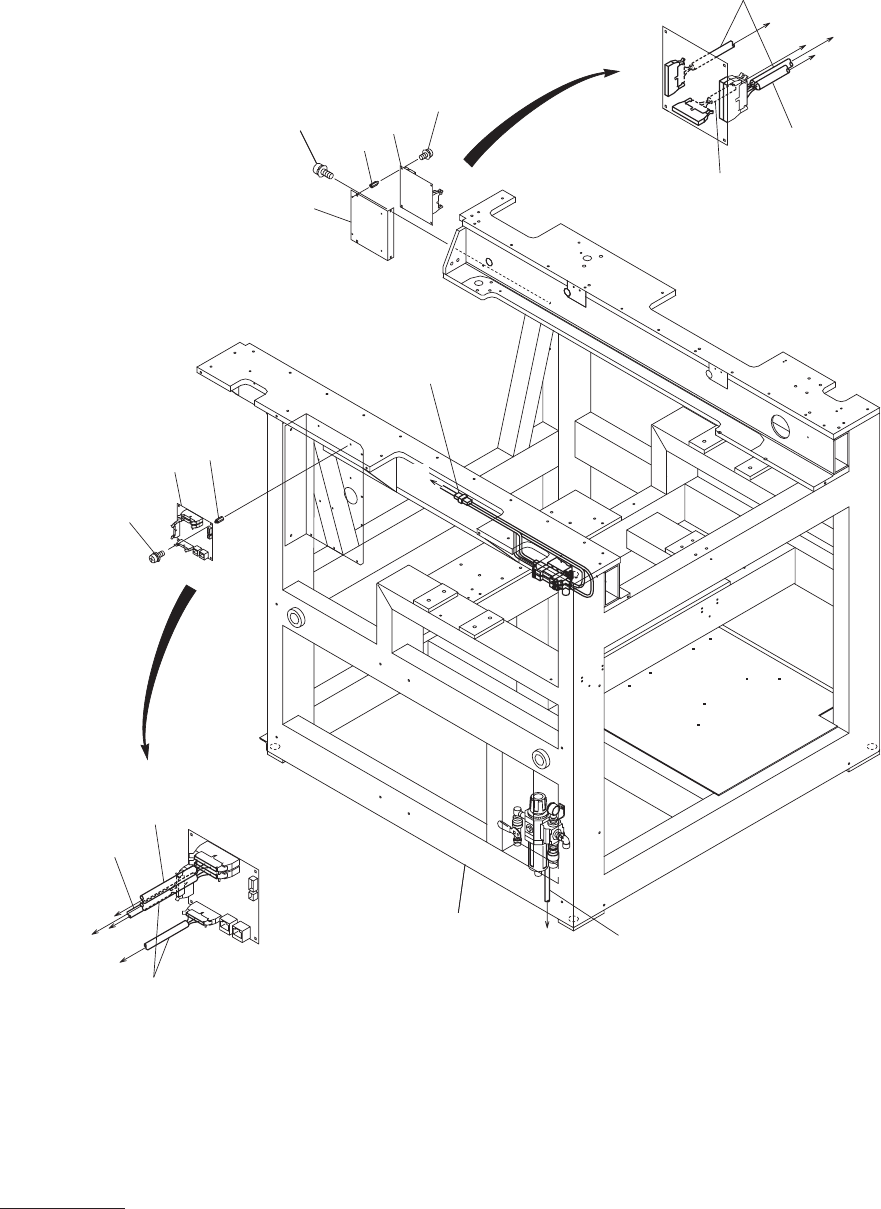

Fig. K-7 I/O
ボード、ケーブル
I/O Board, Cable
663
662
.
661
.
650
641
.
.
681
680
.
670
.
681
680
.
670
.
See Fig.K-1
Key No.4
650
641
642
655
657
656
651
653
652
DETAIL
DETAIL
See Fig.BB-7
Key No.668
See Fig.BB-6
Key No.501
B60
B61
B62
B63
X1064
X1068
B311
B314
Y70
Y78
B6A
X1072
B106F
N07-P1
N07-P2
N07-P4
N07-P3
B86
B87
B88
B8A
S80
S81
B83
B84
B85
Y90
Y99
Y91
Y93
N09-P1
N09-P2
N09-P4
N09-P3
N09
N07
N05-P3
Y56
N05-P4
S15
U04-X009
MODEL PXH-1
1006-004
159
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
K-7
641 6300699616 ACCESSORY,P.C.B 8 831K--110-641 23L10045
642 6301401249 BRACKET 1 831K--110-642 211FA122
650 6301387550 UNIT,I/O 2 N07,09 831K--110-650 4U250191
651 6301630939 CORD 1 831K--110-651 4W204425
652 6301630946 CORD 1 831K--110-652 4W204426
653 6301630977 CORD 1 831K--110-653 4W204429
655 6301630991 CORD 1 831K--110-655 4W204431
656 6301631004 CORD 1 831K--110-656 4W204432
657 6301631011 CORD 1 831K--110-657 4W204433
661 6300007626 BOLT,HEX-SCT 2 M4X10 221A0017
662 4111414008 WASHER V 4X9X0.8 2 FW4 221H0315
663 4111412905 WASHER SPR 4 2 SW4 221H0284
670 4110418908 SCR PAN 3X6 6 831K--110-700 221E0497
680 4110864408 WASHER SPR 3 6 831K--110-720 221H0280
681 4111191909 WASHER V 3X7X0.5 6 831K--110-721 221H0311
