185 MODEL PXH-1 1006-002 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 201 6301400785 UNIT ,POWER 1 G03 831BB-1 10-201 4U200275 202 6301400792 UNIT ,POWER 1 G04 831BB-1 10-202 4U200276 204 6301400808 UNIT ,PO…
MODEL PXH-1
0606-001
184
201
202
206
210
204
252
271
270
.
251
.
261
260
.
250
.
271
270
.
251
.
271
270
.
251
.
261
260
.
250
.
See Fig.BB-1
Key No.47
205
230
229
.
217
209
208
.
233
215
216

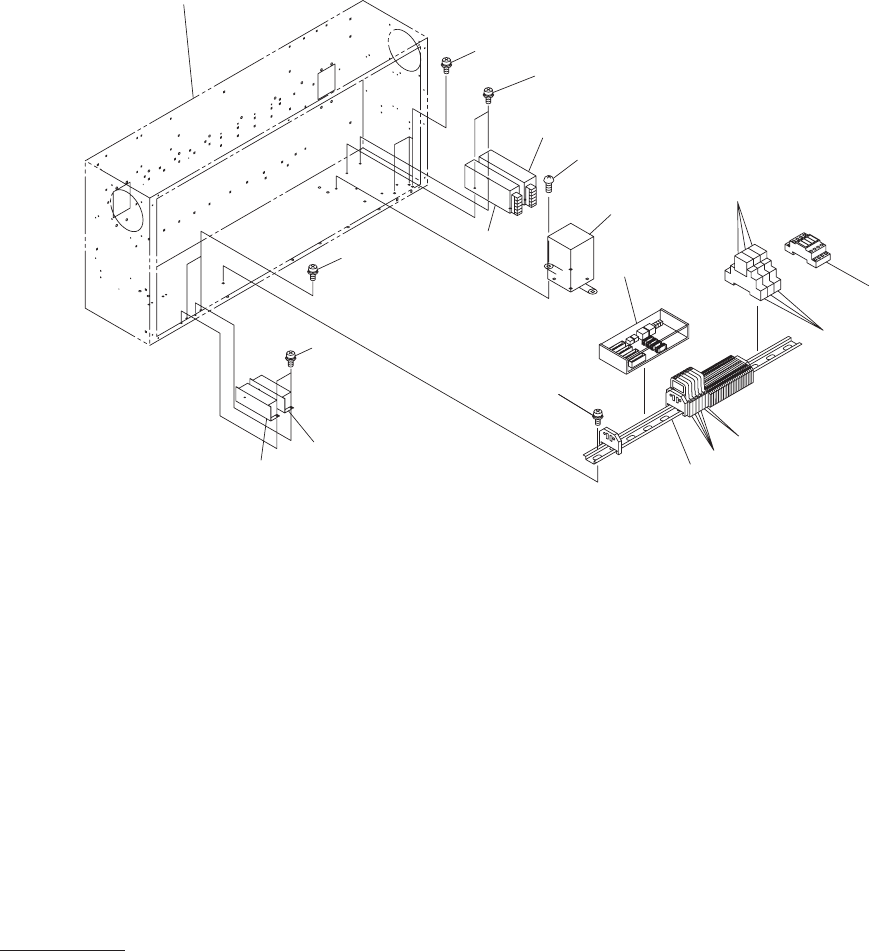

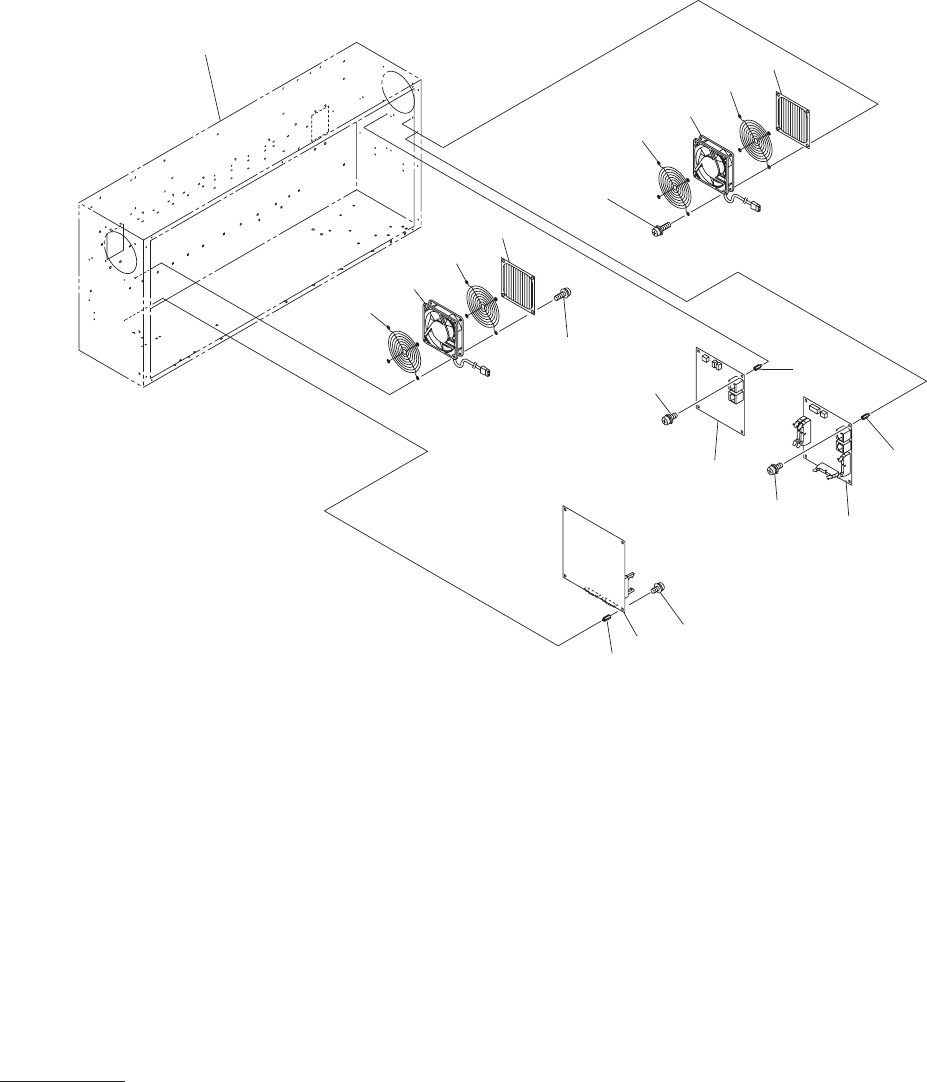

制御盤
CONTROL BOARD
Fig. BB-3
リレー、
DC
電源
Relay, DC Power Supply
185
MODEL PXH-1
1006-002
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
201 6301400785 UNIT,POWER 1 G03 831BB-110-201 4U200275
202 6301400792 UNIT,POWER 1 G04 831BB-110-202 4U200276
204 6301400808 UNIT,POWER 1 G02 831BB-110-204 4U200277
205 6300635423 RELAY 3 K05,06,23 831BB-110-205 4S200086
206 6300635430 SOCKET 3 831BB-110-206 4J120099
208 6301031651 RELAY 1 K29,2A,5A,2E
831BB-110-208 4S200129
209 6301031583 ACCESSORY,RELAY 1 831BB-110-209 23U00010
210 6301406671 UNIT,POWER 1 G01 831BB-110-210 4U200279
215 4230228005 FUSE 250V 1A 4 F01,03,04,10
831BB-110-005 4V320007
216 4230228203 FUSE 250V 3.15A 2 F02,05 831BB-110-006 4V320011
217 6301401133 UNIT,DRIVER 1 N17 831BB-110-007 4U240461
229 6301439167 SOLENOID VALVE 1 Y490 831BB-110-019 4L810345
230 6301026312 PIPE FITTINGS 2 831BB-110-020 225F0423
233 6301438863 TERMINAL 1 831BB-110-503 4J320253
250 4110418908 SCR PAN 3X6 8 831BB-110-710 221E0497
251 4111131400 SCR PAN 4X6 7 831BB-110-720 221E0509
252 4110511708 SCR TRS 4X6 2 831BB-110-723 221E0532
260 4110864408 WASHER SPR 3 8 831BB-110-740 221H0280
261 4111191909 WASHER V 3X7X0.5 8 831BB-110-741 221H0311
270 4110081706 WASHER SPR 4 7 831BB-110-750 221H0283
271 4111192104 WASHER V 4X9X0.8 7 831BB-110-751 221H0314
BB-3
MODEL PXH-1
0606-001
186
333
See Fig.BB-1
Key No.47
333
334
332
334
332
333
333
315
316
301
321
321
321
371
370
.
351
.
371
370
.
351
.
361
360
.
350
.
361
360
.
350
.
361
360
.
350
.
制御盤
CONTROL BOARD
Fig. BB-4 DC
ファン、
I/O
ボード
DC Fan, I/O Board
