MODEL PXH-1 1006-002 61 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 301 0831N100 CYLINDER 2 B60,61, B62,63 831F A-1 10-301 0831N100 302 6300884432 PIPE FITTINGS 2 831F A-1 10-302 225F0368 304 6300035155 AIR…
MODEL PXH-1
1006-002
60
スキージヘッド部
SQUEEGEE HEAD SECTION

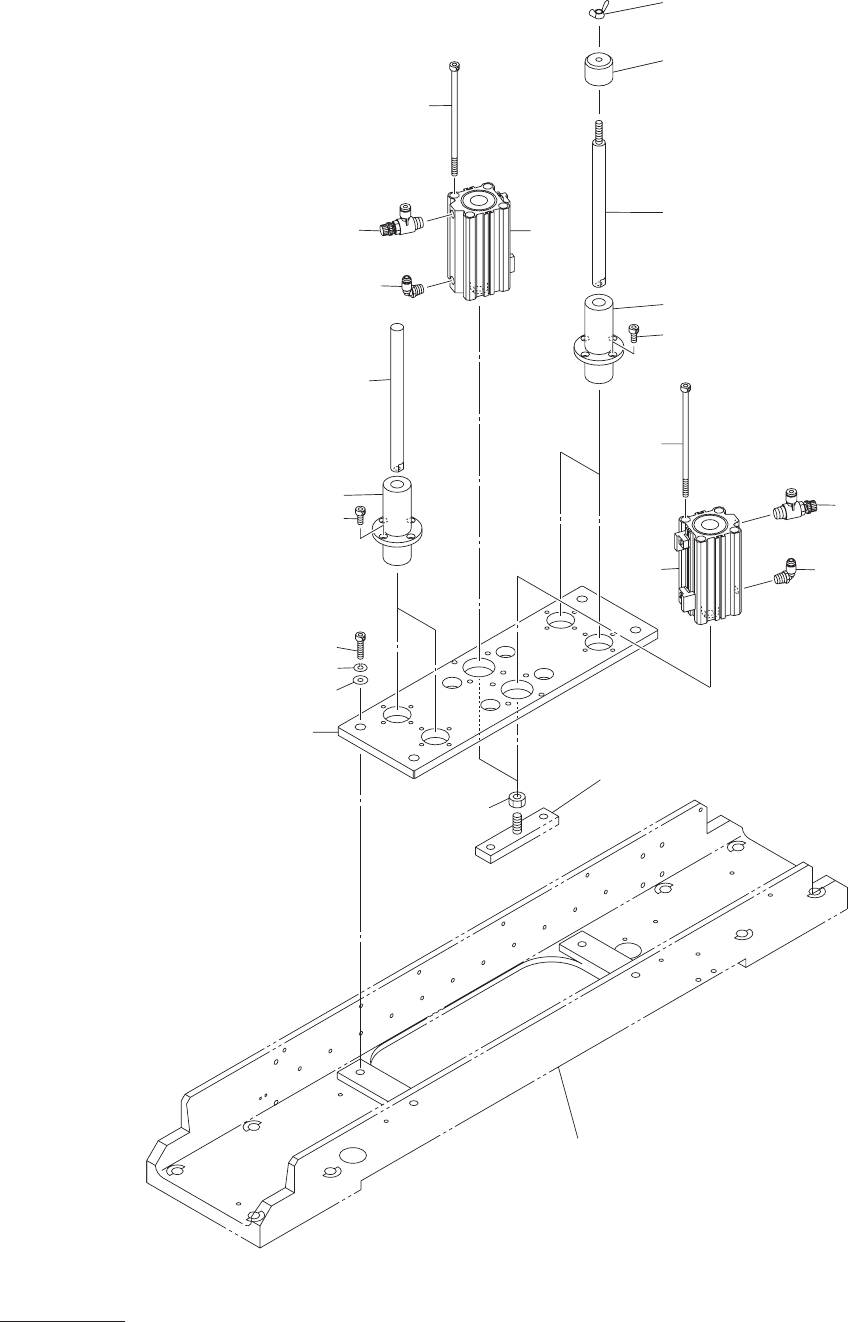

Fig. FA-4
スキージ上下駆動部
Squeegee Leveller Driver
362
302
301
306
305
361
305
308
311
307
361
362
301
367
366
368
309
302
See Fig.FA-1
Key No.22
See Fig.FA-3
Key No.215
304
304
369
MODEL PXH-1
1006-002
61
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
301 0831N100 CYLINDER 2 B60,61, B62,63
831FA-110-301 0831N100
302 6300884432 PIPE FITTINGS 2 831FA-110-302 225F0368
304 6300035155 AIR LINE EQPT 2 831FA-110-304 225B0002
305 6300883978 BUSH,BALL 4 TRFC12GUU
831FA-110-305 222J0198
306 6300890471 SHAFT,LINEAR 2 831FA-110-306 222K0203
307 4111557903 NUT WING 6 2 831FA-110-307 221G0224
308 6300890488 SHAFT,LINEAR 2 831FA-110-308 222K0204
309 6301392745 STAY(PLATE) 1 831FA-110-309 211J1313
311 6300943382 BUSH,LOCATE 2 831FA-110-311 216Q0027
361 6300007626 BOLT,HEX-SCT 16 M4X10 221A0017
362 6300008012 BOLT,HEX-SCT 4 831FA-110-362 221A0056
366 6300915426 BOLT,HEX-SCT 8 M8X20 221A0256
367 4111413100 WASHER SPR 8 4 SW8 221H0291
368 4111414503 WASHER V 8X17X1.6 4 FW8 221H0323
369 4111410901 NUT HEX 8 2 M8 221F0089
FA-4
MODEL PXH-1
0805-003
62
スキージヘッド部
SQUEEGEE HEAD SECTION
Fig. FA-5
ケーブル
Cable
403
402
404
See Fig.K-7
Key No.652
See Fig.K-7
Key No.651
See Fig.BB-8
Key No.743
See Fig.K-7
Key No.653
N07-P1
M27-FA
Y71
Y70
B60
B61
B62
B63
N07-P2
N07-P3
X311
X1270
X270
B271
B6F
B273
B274
A27-CN3
M27
M27E
M27
M27E
X271
B106F
