(2) Adjust the pushing distance by changing Dimension L (the distance
between the upper end plane of the ball bushing and the lower end
plane of the stopper nut).
The pushing distance of the squeegee against the screen is set to "1.0
mm". (Factory-Adjusted upon Shipment)
When the stopper nut is turned once clockwise, the pushing
distance becomes shorter by 1.0 mm. Turning the stopper nut once
counterclockwise makes the pushing distance longer by 1.0 mm.
Table 4A13
Pushing Distances Dimension L during Upward
Movement of Cylinder
0.5 mm 57.0 (58.5) mm
1.0 mm 57.5 (59.0) mm (Standard Setting)
1.5 mm 58.0 (59.5) mm
The values in ( ) are applied when metal squeegees are used.
Permalex: Type No. PLX-A3060-270
PLX-A3060-350
(3) Use the "Print Block" tab sheet to push the squeegees against the PCB
located at the printing position. (Operation Sequence: [MAINT.] Button
→ [MAN. SUB-SYS] Button → "Print Block" Tab)
Refer to the above table and check the relation between Dimension L
and the pushing distances.
0609-002
4.1 Replacement and Adjustment of Consumables
Reference
1-41 AKOEMT-ID
4.1.3 Replacement Procedure of Blower Filter
Operation Procedure

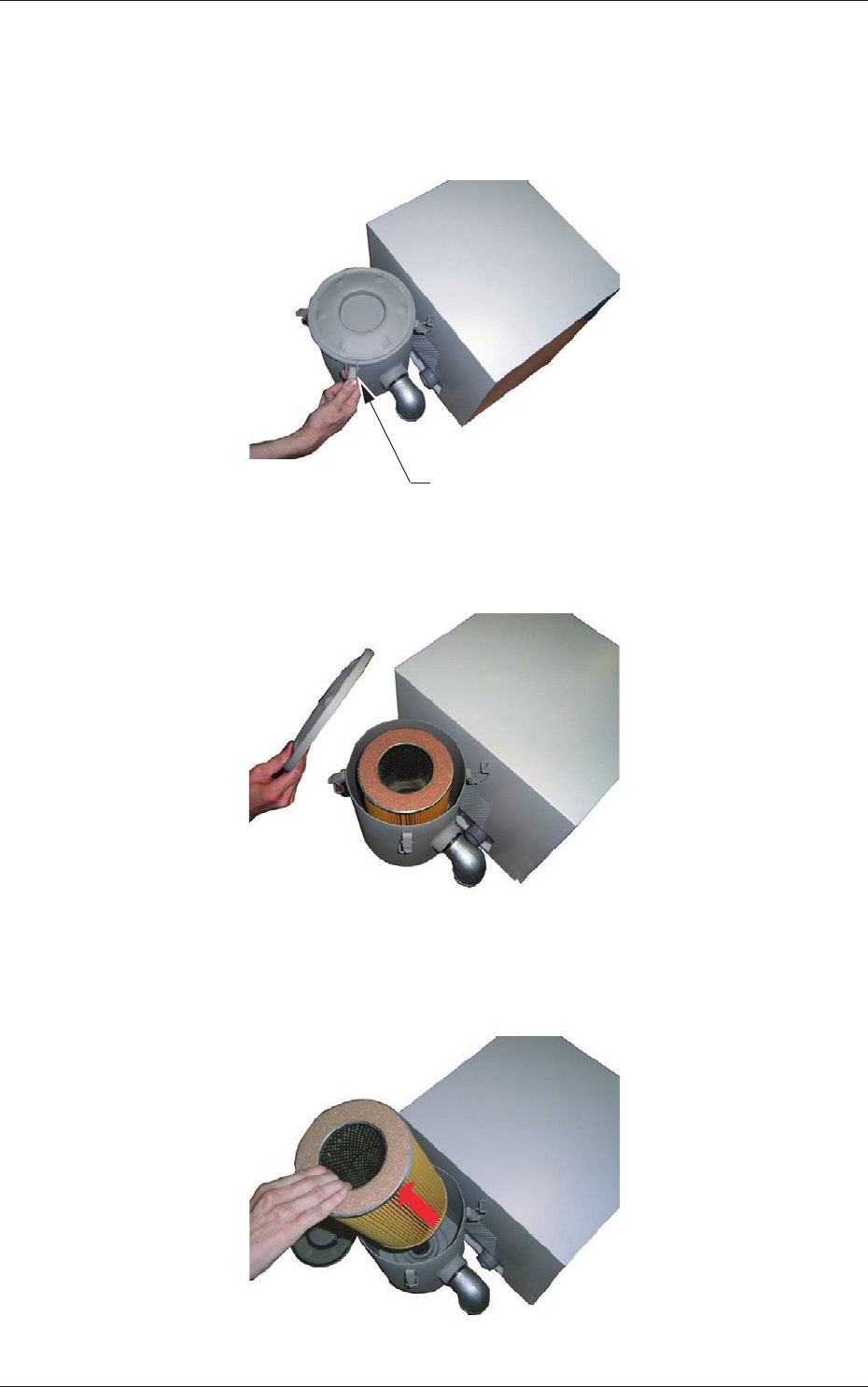

(1) Disengage the clips fastening the lid of the filter cover. (4 places)
Clip
Fig. 4A56
(2) Remove the lid.
Fig. 4A57
(3) Detach the filter and remove dust accumulated on the filter with an air
gun or a vacuum cleaner.
Fig. 4A58
0609-002
4.1 Replacement and Adjustment of Consumables
1-42 AKOEMT-ID
(4) Set the filter such that the center hole of the filter can fit into the flange
located at the rear side of the filter cover.
Flange Section
Fig. 4A59
(5) While holding the lid, engage the clip securely such that the flange
(located at the center of the lid) can fit into the center hole of the filter.
Fig. 4A60
0609-002
4.1 Replacement and Adjustment of Consumables
