1-48 AKOEMT -ID (10) Push down the lever while holding the supply roller (new paper side) such that the cutout of the left adapter can ﬁt into the pin on the left ﬂange of the cleaning unit and attach the supply roller i…

1-47 AKOEMT-ID

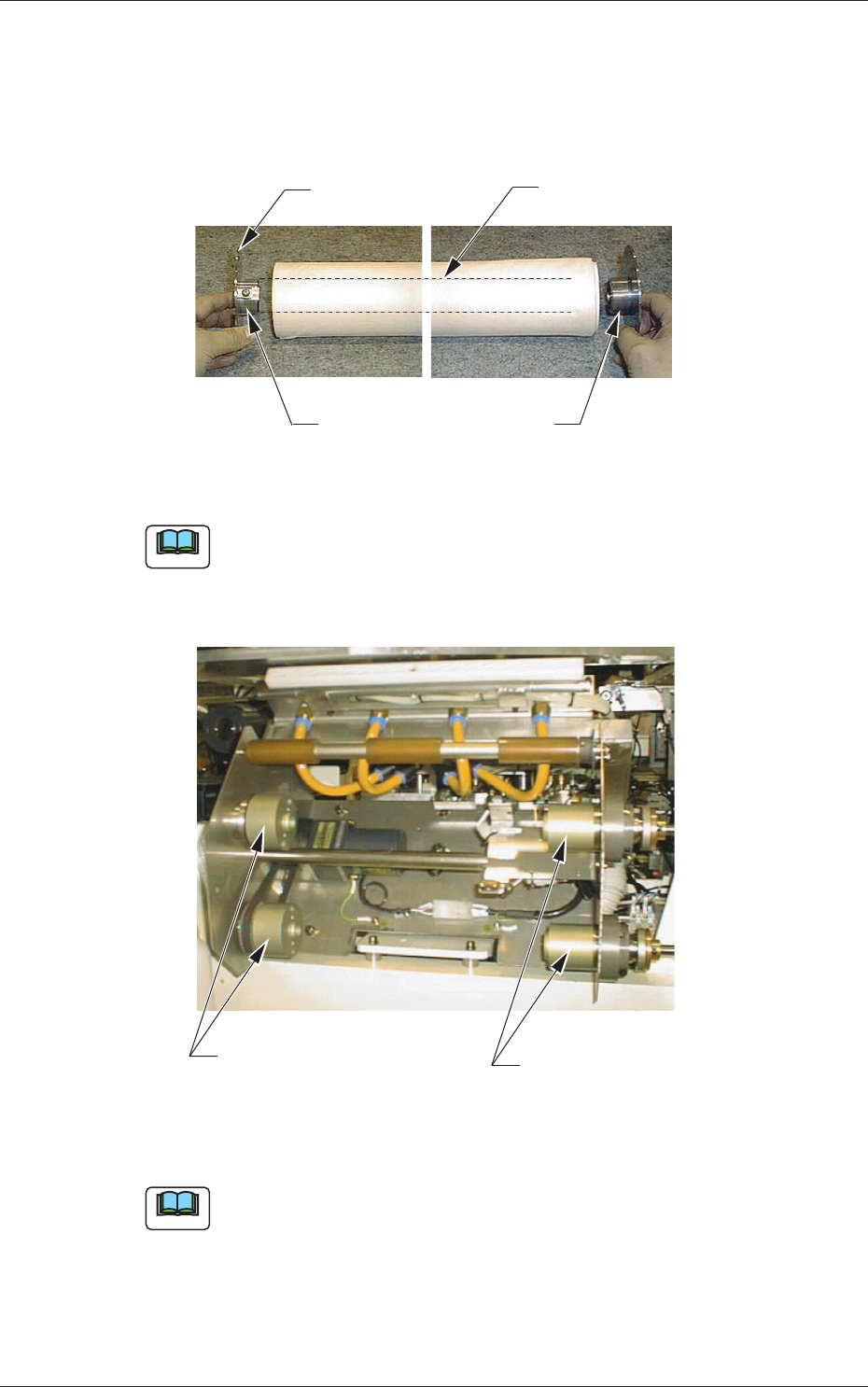

(8) Attach the adapters to the both sides of the roll core on the supply roller

side (new paper side).

Press-ﬁt the left adapter to the roll core so that the roll core end can be

attached tightly to the ring of the left adapter.

Roll Core

Ring

Left Adapter

Right Adapter

Fig. 4A67

Note

Be sure to use the correct adapter.

The left adapter has a screw.

(9) Adjust the spacers to change the paper width. (Option)

Left Spacers:

M4×25 (2 pcs.)

Right Spacers:

M4×40 (2 pcs.)

Fig. 4A68

Note

(a) To change the paper width (350 mm) to "280 mm", attach the right

and left spacers.

(b) To change the paper width (280 mm) to "350 mm", detach the right

and left spacers.

0609-002

4.3 Replacement of Cleaning Paper (How to change the cleaning paper width)

1-48 AKOEMT-ID

(10) Push down the lever while holding the supply roller (new paper side)

such that the cutout of the left adapter can ﬁt into the pin on the left

ﬂange of the cleaning unit and attach the supply roller in place.

Lever being pushed down

Fig. 4A69

Note

Because the right adapter will be disengaged easily from the roll core and

fall down, attach the supply roller, keeping it right side up.

(11) Thread the cleaning paper in the order of "*1" to "*4".

Paper End

Front View of Cleaning Section Top View of Cleaning Section

Fig. 4A70

Note

Note the rolling direction of the paper.

0609-002

4.3 Replacement of Cleaning Paper (How to change the cleaning paper width)

1-49

AKOEMT-ID

1004-003

4.3 Replacement of Cleaning Paper (How to change the cleaning paper width)

(12) Push down the lever while holding the take-up roller such that the cutout

of the left adapter can ﬁt into the pin on the left ﬂange of the cleaning

unit and attach the take-up roller in place.

Lever being pushed down

Fig. 4A71

Note

Because the right adapter will be disengaged easily from the roll core and

fall down, attach the supply roller, keeping it right side up.

(13) Attach the paper end securely to the roll core on the take-up side, using

a gummed cloth tape.

Roll Core Shaft

Gummed Cloth Tape, etc.

Paper Side End

Fig. 4A72

Note

Secure the paper end so that the paper side end is arranged at right angles

to the roll core shaft to take the paper up evenly on the left and right.
