1-54 AKOEMT -ID • The solvent tank must be filled up to the "Max." line with industrial alcohol. (Approx. 1,500 ml or less) If you fill the tank beyond the "Max." line, alcohol will overflow and drip out…
1-53 AKOEMT-ID
(4) Remove the cap and the internal lid of the solvent tank.
Cap
Internal Lid
Fig. 4A76

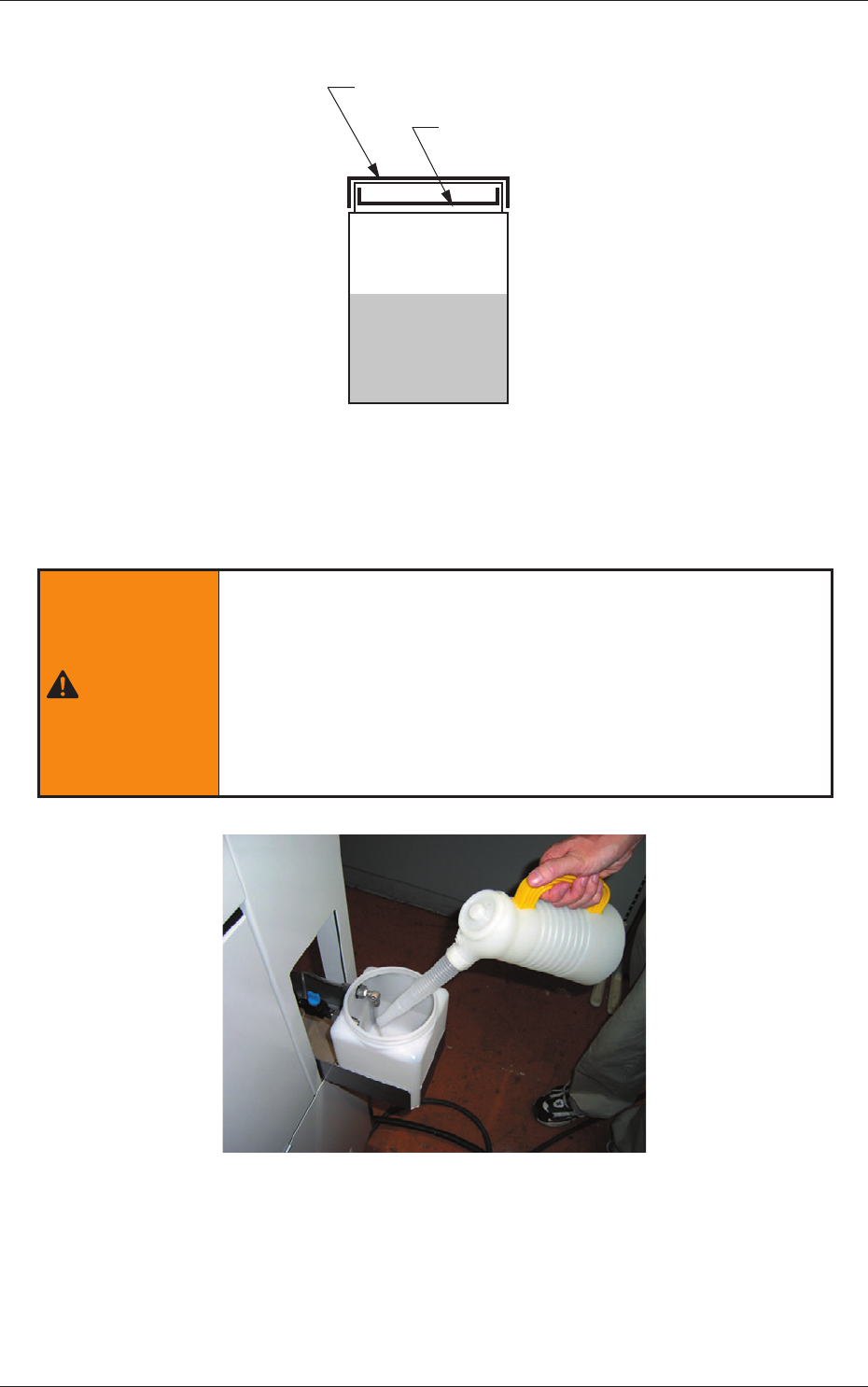

(5) Replenish the solvent tank with additional industrial alcohol, using the
replenishment container.
WARNING
To avoid solvent spills, be sure to use the replenishment
container equipped with a nozzle.
•
If you have spilt solvent by mistake, clean it up with a rag as
soon as possible.
•
After cleaning up the spilt solvent, confirm that it has dried
completely and enough ventilation is provided. After that, turn
on the power switch of the machine.
Fig. 4A77
0704-003
4.4 Replenishment of Industrial Alcohol
1-54 AKOEMT-ID
• The solvent tank must be filled up to the "Max." line with industrial
alcohol. (Approx. 1,500 ml or less)
If you fill the tank beyond the "Max." line, alcohol will overflow and drip
out of the tank, down to the floor.
Cap
Internal Lid
Joint
Gasket
Max. Line
Leeway
Fig. 4A78 Solvent Tank
(6) After the replenishment of industrial alcohol, attach the internal lid of
the solvent tank and tighten the cap securely.
Notice
Do not forget to put the internal lid back in place.

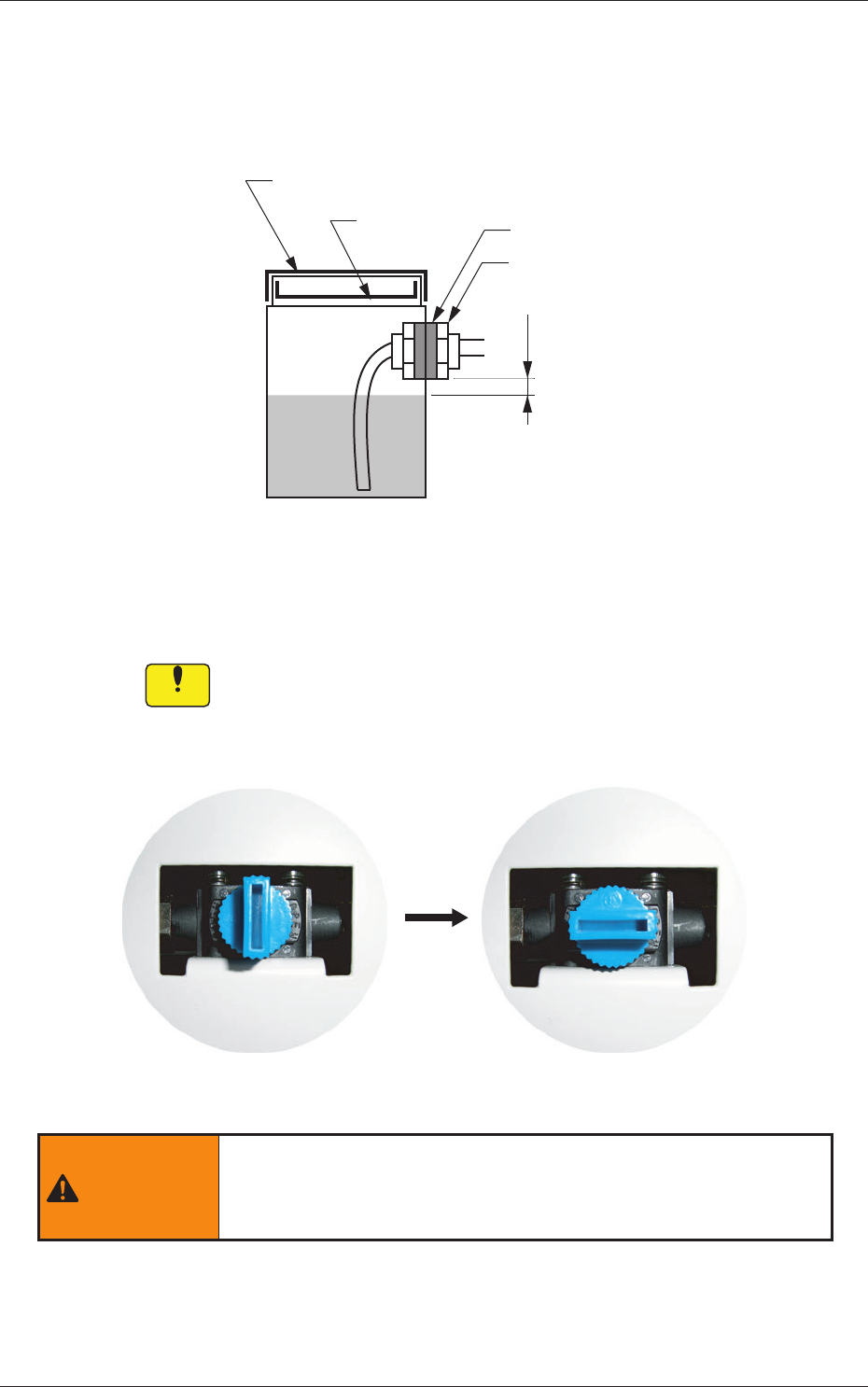

(7) Set the hand valve (pressure valve) to the "ON" side.
OFF ON
Fig. 4A79
WARNING
When the cap is loose, the internal lid may blow off, causing the
industrial alcohol to drip out. The spill may also cause a fire.
Tighten the cap of the tank securely.
0704-003
4.4 Replenishment of Industrial Alcohol
1-55 AKOEMT-ID
Note
If air enters the tube running between the solvent tank and the discharge
nozzle, the cleaning solvent may not be discharged soon.
In this case, discharge a little amount of alcohol to let the air escape, using
the [SOLVENT DISPENSER (ON-OFF)] switch.

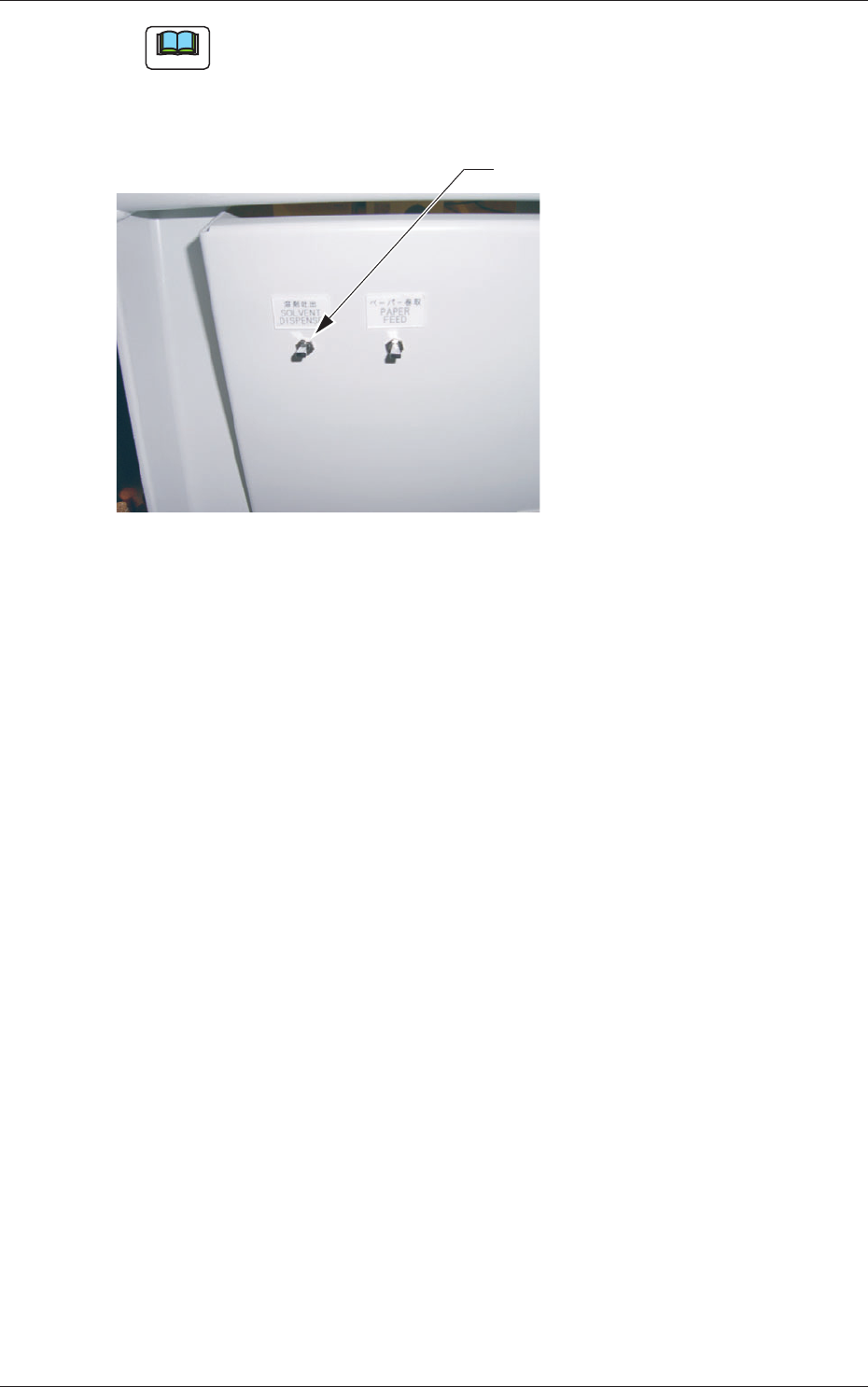

[SOLVENT DISPENSER (ON-OFF)] Switch
Fig. 4A80
0704-003
4.4 Replenishment of Industrial Alcohol
