1-60
AKOEMT-ID
1004-004
4.6 Cleaning Procedure of Cleaning Unit

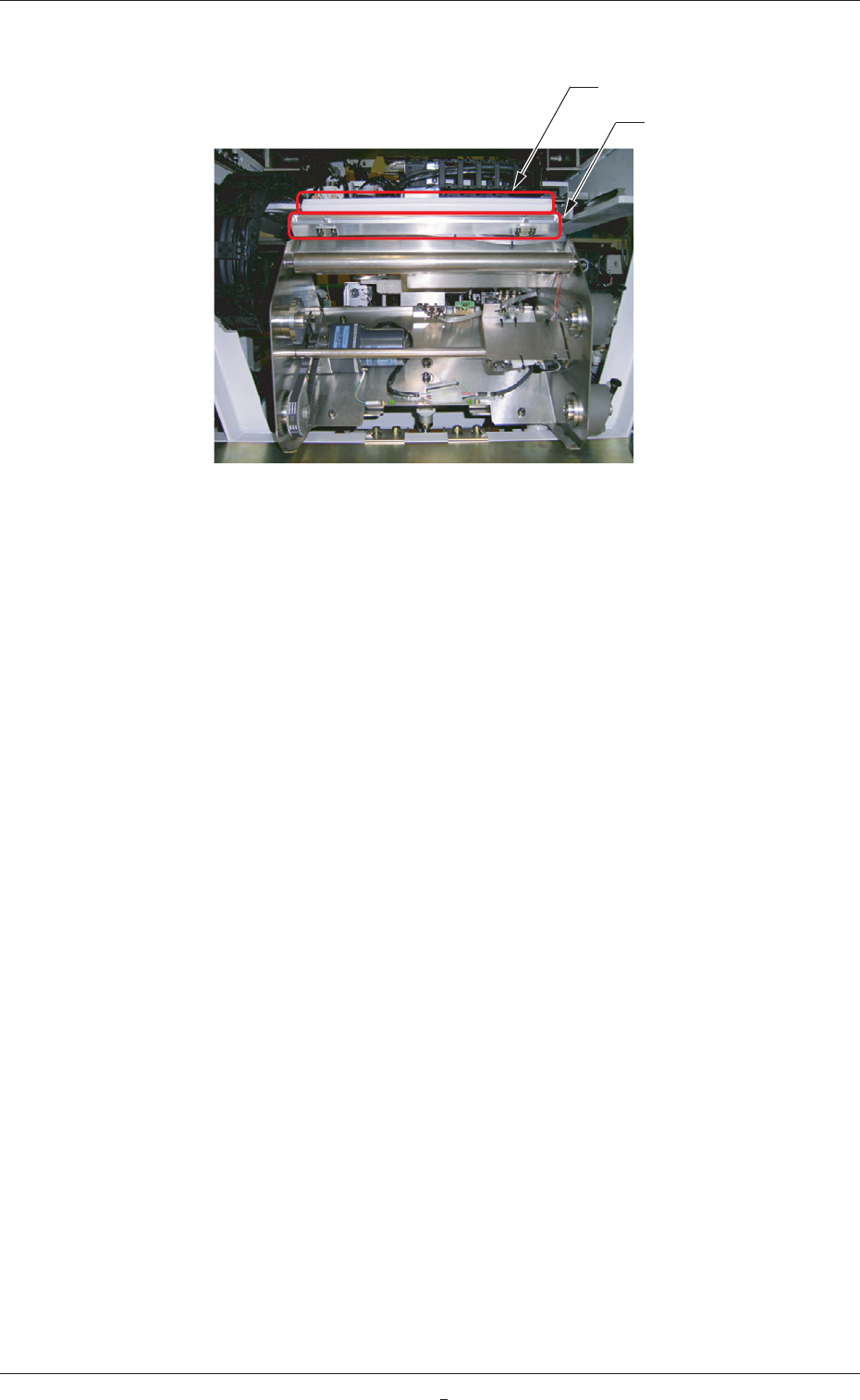

(7) Clean the squeegee block and the cleaning nozzle.
Squeegee Block
Cleaning Nozzle
Fig. 4A86
1-60-1
AKOEMT-ID
1004-001
4.7 Cooling Fan Filter Cleaning Procedure
4.7 Cooling Fan Filter Cleaning Procedure
4.7.1 Cleaning Procedure for the Fan Filter in the Control Box
(1) Turn OFF the power to the machine. (Turn OFF the main breaker).

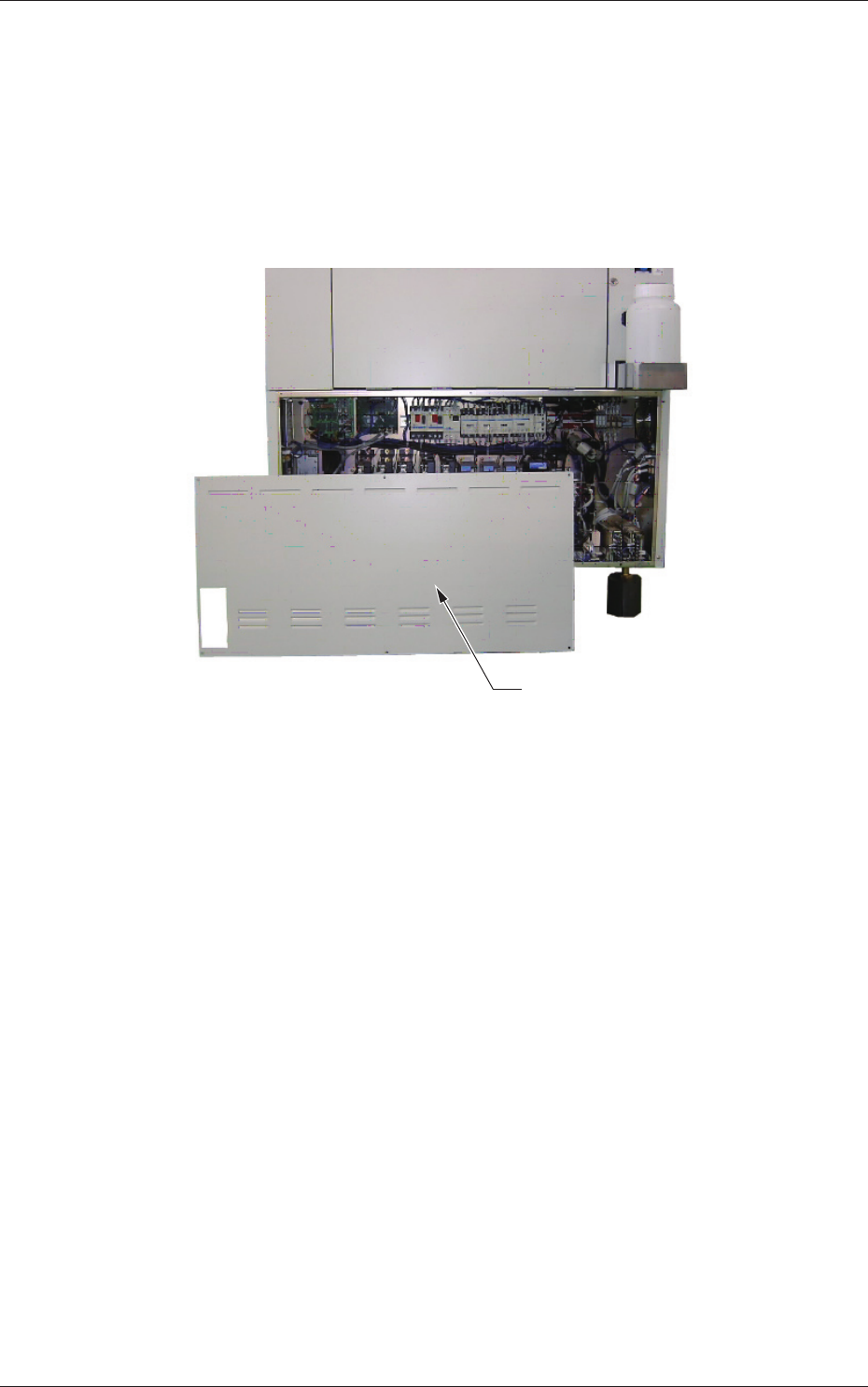

(2) Remove the cover on the control box on the rear of the machine.
Cover
Fig. 4A86-1
1-60-2
AKOEMT-ID
1004-001
4.7 Cooling Fan Filter Cleaning Procedure

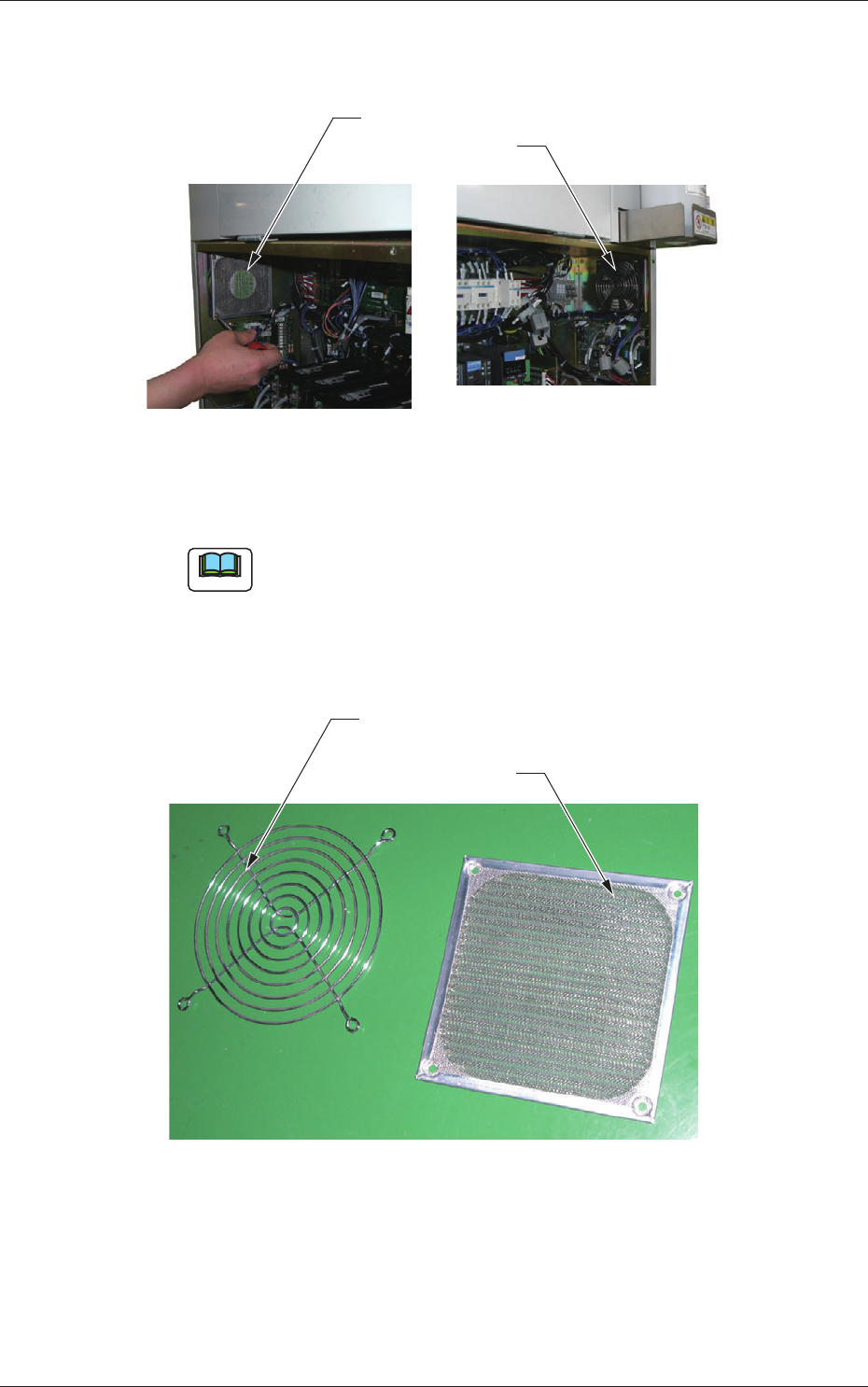

(3) After removing the four set screws on the fan motor in the control box,
remove the finger guard and filter from the fan motor.
Fan Motor (Left Side)
Fan Motor (Right Side)
Fig. 4A86-2
(4) Remove dust on the fan filter using a vacuum cleaner and brush.
Note
(a) In the case that dust cannot be removed using a vacuum cleaner,
dip the filter in water and rub the surface gently using a brush to
remove the dust.
(b) After washing the filter in water without using soap, dry it
completely.
Finger Guard
Fan Filter
Fig. 4A86-3
