1. "CHECK" and "ERROR" Windows

1004-002

1. "CHECK" and "ERROR" Windows

1.1 "ERROR" Window

When the machine detects an error, the following window opens.

[1] [2] [3] [4] [5]

[6]

[7]

Fig. 4B1

•

Window Composition

[1] [MAC. ERR.] Button

Pressing this button displays the contents of the error.

Refer to "1.1.1 MAC. ERR. Window" for details.

[2] [PRGM. CHECK] Button

When "Pattern Program Data Error" appears under "ITEM" in the

"ERROR" window and this button is pressed, the contents of the pattern

program are displayed.

Refer to "1.1.2 PRGM. CHECK Window" for details.

[3] [GUIDE] Button

Pressing this button displays the procedure to restart the halted machine.

When the [GUIDE] button ﬂickers in blue and gray, it indicates that a

restarting procedure is found.

Refer to "1.1.3 GUIDE Window" for details.

2-2 AKOEMT-ID

[4] [MAINT. STOP] Button

Pressing this button displays the contents of a situation where the

machine has stopped under the condition speciﬁed in advance for

maintenance.

When this button ﬂickers in blue and gray, it indicates that the machine

has stopped for maintenance concurrently with another error (machine

error).

Refer to "1.1.4 "MAINT. STOP" Window" for details.

[5] [Information] Button

Pressing this button displays the contents of an alarm issued under the

condition speciﬁed in advance in order to stop the machine due to a

shortage of components, etc.

When this button ﬂ

ickers in blue and gray, it indicates that the above

condition is fulﬁlled concurrently with another error (machine error).

Refer to "1.1.5 "Information" Window" for details.

[6] [RESET] Button

Pressing this button cancels an alarm (sound) and closes the "ERROR"

window.

[7] [BUZZER RESET] Button

Pressing this button cancels an alarm (sound) only

Note

When a mark recognition error is displayed, refer to "6.2.3 Manual

Alignment Operation" in "Chapter 6" of "Volume 2" for details.

When the [STOP] button on the front operation panel is pressed

after the manual alignment operation, the "ERROR" window closes

and the previous window resumes.

0603-001

1.1 "ERROR" Window

2-3 AKOEMT-ID

1.1.1 "MAC. ERR." Window

•

Window Layout

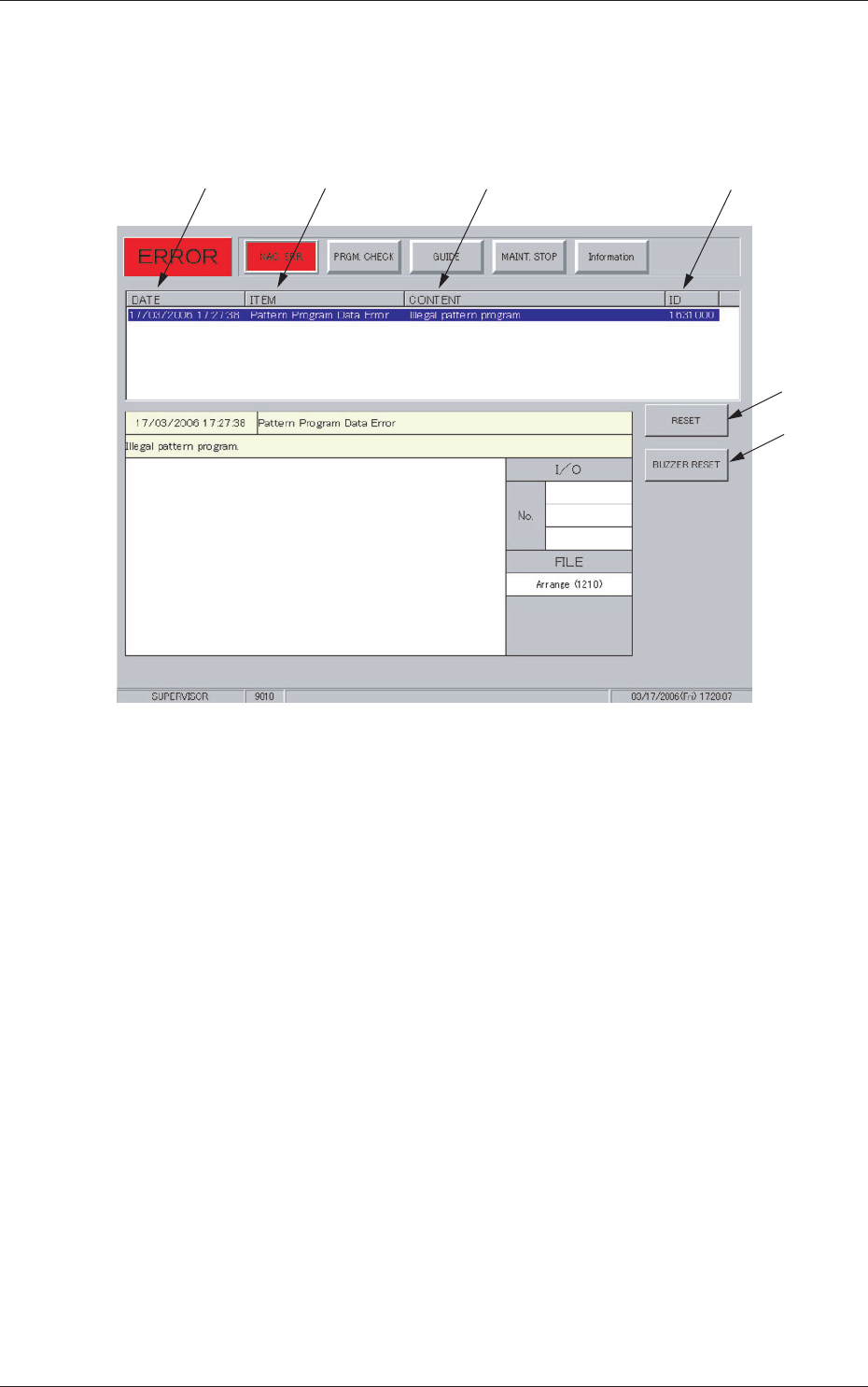

When the machine detects an error, the following "ERROR" window opens.

[1] [2]

[3]

[4]

[6]

[5]

Fig. 4B2 Example of "ERROR" Window

•

Window Composition

[1] DA

Displayed are the date and time of error occurrence.

[2] ITEM

Displayed is an error item.

[3] CONTENT

Displayed are the contents of an error.

[4]

Displayed is a number that identiﬁes an error.

When an error has occurred, use this ID as an index and refer to "2.

roubleshooting after Error Display" in "Chapter 2" for details.

0603-001

1.1 "ERROR" Window
