Safety Precautions
Safe-30
AKOE-ID

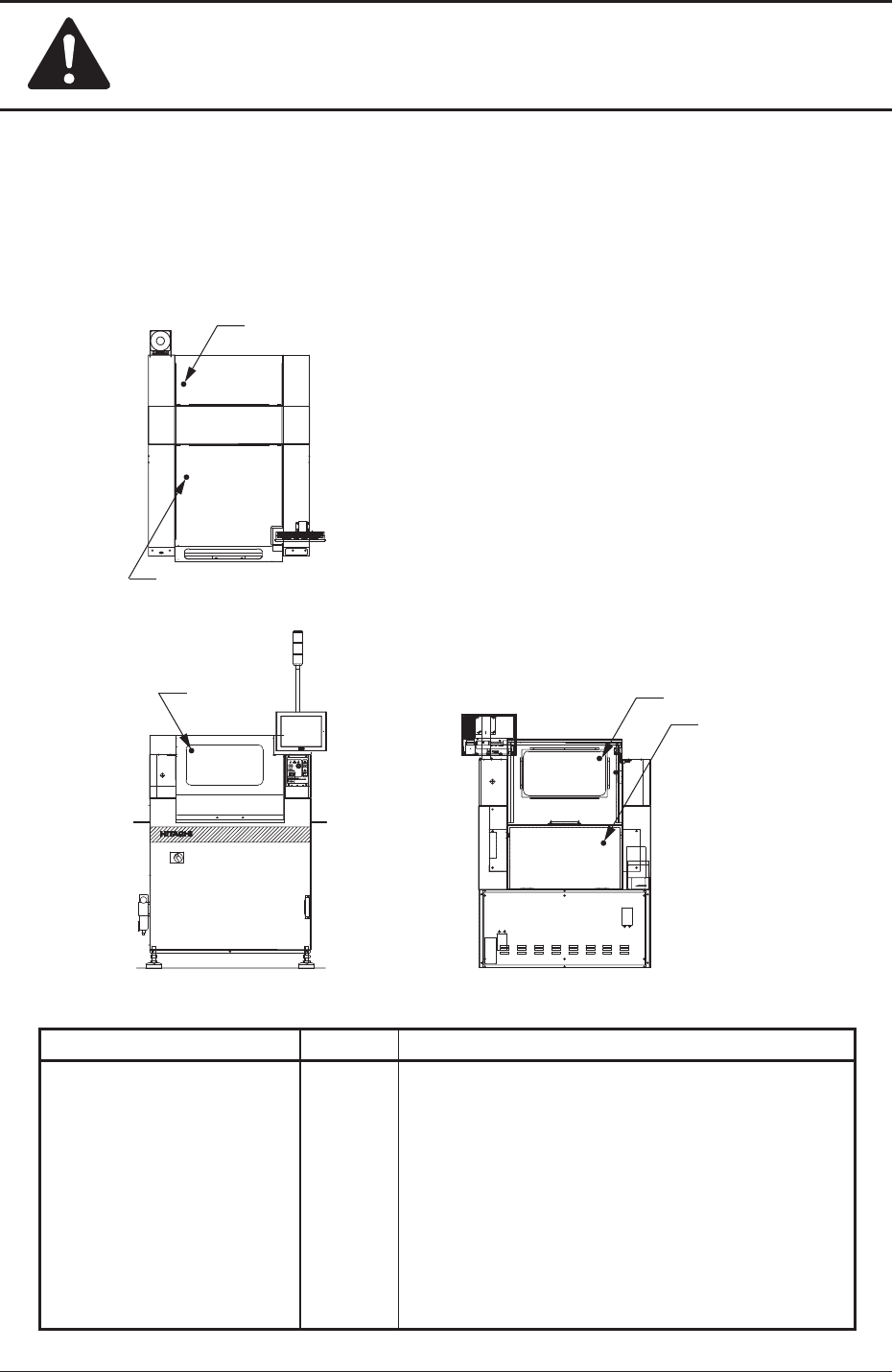

[Door Check] Switches
When the door is opened with the [OPERATION/SET UP] switch set to the
"OPERATION" side, the switch is activated and an error condition is indicated.
When the switch is set to the "SET UP" side, this switch is not activated.
S12
S13
S12
S14
S13
Top View
Front View Rear View
Switch Name Symbol Countermeasures
[Door Check] Switch S12
S13
S14
When the door is opened, the following measures
are taken.
•
All power sources for loads are shut off.
The power supply to the mechanisms of all
motor shafts and 24-voltage loads in the solenoid
system (SOL
and SV) is shut off.
Note:
The control power supply for the control
boards, switches, and lamps is excluded.
0704-002
Safe-31
AKOE-ID
Safety Precautions
6. Precautionary Items for Correct Operations
Requirements for Installation
Be sure to fulfill the following requirements for safety purposes.
•
Overvoltage Category : Category
I
II
•
Pollution Degree : 3
Overvoltage Categories refer to the level of Impulse W
ithstand Voltage protection
provided at the specified Pollution Degree.
Category III: Primary circuits of a device to which power is directly
supplied from the power distribution panel, and circuits from
the distribution panel to outlets.
Note
The term was changed from "Installation Category" to "Overvoltage
Category".
"Pollution Degree" is a degree of pollution severity.
Pollution Degree 3: Conductive pollution or dry nonconductive pollution
that becomes conductive due to condensation occurs.
T
o be found in industrial environment or construction
sites (harsh environments).
0609-002
Safety Precautions
Safe-32
AKOE-ID
Precautionary Measures before Installation
If the machine is installed in unsatisfactory environmental conditions, it may malfunction
due to damage or breakdown.
To avoid this, make preparations to install the machine as follows.
When the machine is scheduled to be transferred to another place, please contact the
marketing department or sales agency of Hitachi High-Technologies beforehand.
Select a place solid enough to support the mass of the machine.
Note
It is recommended that the machine should be installed on the first floor.
When the machine has to be installed on a floor other than the first one,
please contact the marketing department or sales agency of Hitachi High-
Technologies for details.
Avoid any place that vibrates severely.
The ambient temperatures must be 20±10°C and humidity 30 to 80%. Any dew
condensation must be avoided.
When the machine is transferred to another place and the ambient temperature rises more
than the surface of the machine, dew may condense under the condition described below.
Note that dew condensation may cause the machine to break down.
Condition of Dew Condensation
Dew may condense when the difference (based on "Humidity (%)") between the ambient
temperature of the destination (the place where the machine was transferred) and the
surface temperature of the machine reaches the values or more in the table below.
Humidity (%) of Destination
Differences between Ambient Temperature
of Destination and Surface Temperature of
Machine
80 3 °C or more
70 6 °C or more
60 8 °C or more
50 10 °C or more
40 14 °C or more
30 18 °C or more
0603-001
