1.2 Preparation for Maintenance

•

Vacuum Cleaner

If the suction hole of the vacuum cleaner is changed to a smaller one, some

spots can be cleaned more easily.

•

Air Blow Brush for Camera

Use one on the market.

•

Mirror

Use one on the market.

•

Container, etc.

Use a container big enough to hold water drained from the air regulator

while

cleaning the regulator.

•

Brush

Use a commercially available nylon brush.

•

Industrial Alcohol

Use the industrial alcohol described in Table 4A1 for this machine.

Table 4A1

Maker Product Name

DAN Chemical Co., Ltd Denatured Ethanol AP-7

Nihon Alcohol Hanbai Co., Ltd SOLMIX AP-7

When the industrial alcohol in Table 4A1 is unavailable, follow the mixture

ratio in Table 4A2.

Table 4A2

Chemical Element CAS No. Mixture Ratio

Ethyl Alcohol

64-17-5 80 to 90 %

Normal Propanol 71-23-8 5 to 10 %

Isopropyl Alcohol

67-63-0 5% or less

Obtain the material safety data sheet (MSDS) from the maker to learn the

precautionary points on handling and check the contents described in detail

for correct use.

1-4 AKOEMT-ID

1.2.2 Preparation for Lubrication

Prepare for the speciﬁed types of grease and lubrication tools.

Speciﬁed Greases

• DAPHNE EPONEX GREASE No. 1 (IDEMITSU KOSAN)

• MOLYNOC GREASE AP1 (NIPPON OIL CORPORATION)

Note

(a) Before lubrication, wipe off old grease. Otherwise, the effect of

grease and oil will decrease.

(b) Obtain the material safety data sheet (MSDS) from the maker to learn

the precautionary points on handling and check the contents described

in detail for correct use.

Same Types of Lubricants

• Lubricants equivalent to DAPHNE EPONEX GREASE No. 1 (IDEMITSU

KOSAN)

Table 4A3

Grease Names Makers

Alvania Grease No. 1 Showa Shell Sekiyu K.K

Multinoc Grease No. 1 NIPPON OIL

CORPORATION

Jomo Lisonix Grease No. 1

JAPAN ENERGY CORPORA

TION

Dynamax No. 1 COSMO OIL LUBRICANTS

Lithtan 1 ESSO OIL

MP Grease No. 1 KYGNUS

Gemico MP-1 T

onenGeneral Sekiyu K.K

Multemp PS1 KYODOH YUSHI CO., L

TD.

•

Lubricants equivalent to MOLYNOC Grease AP1 (NIPPON OIL

CORPORATION)

Table 4A4

Grease Names Makers

DAPHNE Grease M No. 1 IDEMITSU KOSAN

Jomo Lisonix Grease M-No. 1 JAP

AN ENERGY CORPORA

TION

Molybdenum Grease No. 1 COSMO OIL LUBRICANTS

BEACON Q2 ESSO OIL

Gemico MD2 T

onenGeneral Sekiyu K.K.

M5 GREASE 1 KYGNUS

0609-002

1.2 Preparation for Maintenance

1-5 AKOEMT-ID

Speciﬁed Tools for Lubrication

(1) Brush

Use a brush whose bristles do not come off if possible.

(2) Vinyl Gloves

Use a pair of vinyl gloves to apply grease or oil by hand.

(3)

Hand Grease Gun

Standard :

KH-120

Part No : 630 062 2577

Maker : Yamada Yuki

Note

(a) Use this gun only for DAPHNE EPONEX GREASE No. 1.

(b) Please purchase a hand grease gun or attachments whenever

necessary.

Reference

Refer to the attached instruction manual of the hand grease gun for the

usage.

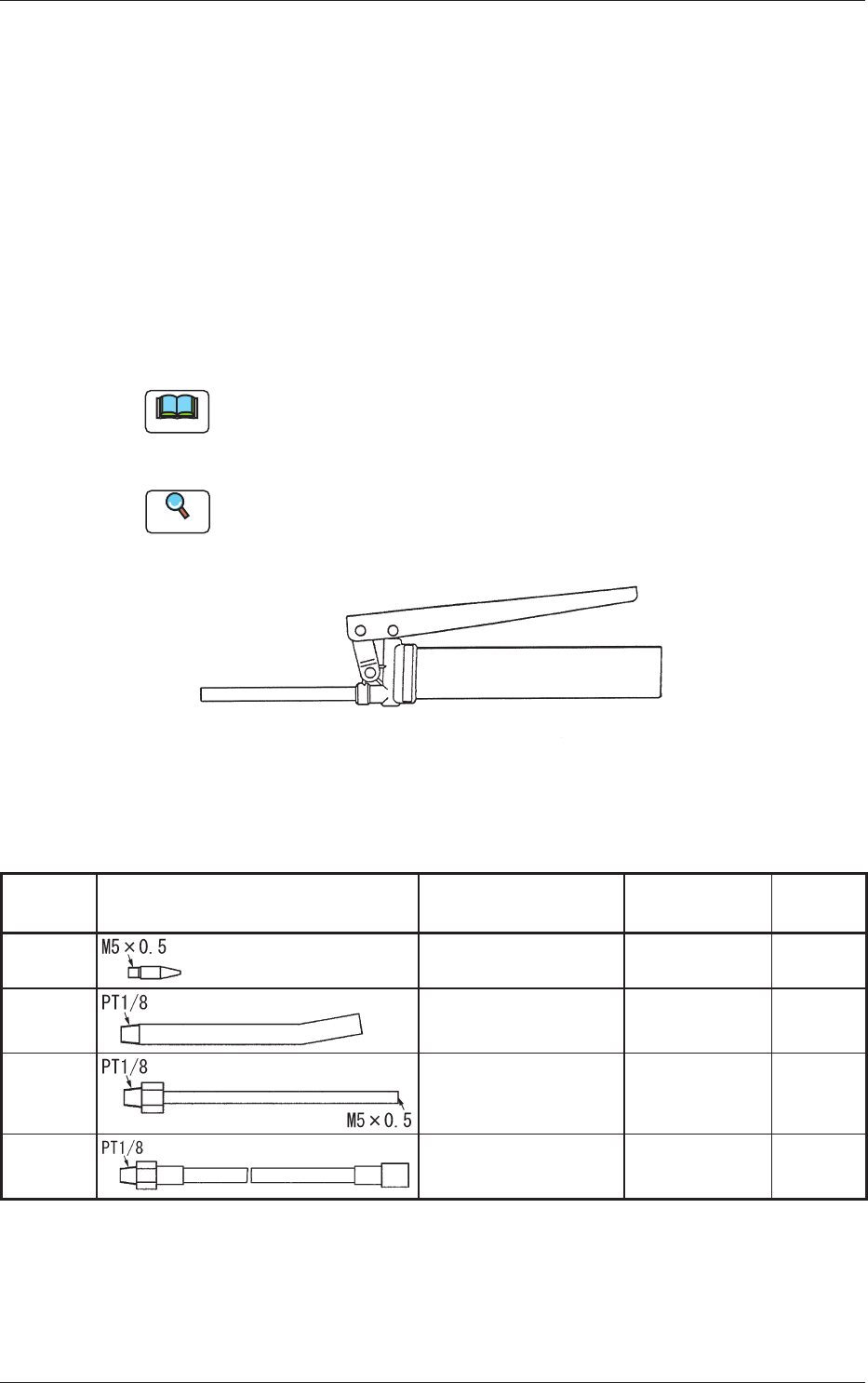

Fig. 4A2

Attachments for Hand Grease Gun KH-120

Table 4A5

Standard Shape

Required Number of

Attachments

Part No. Remarks

P Type

1 630 061 7474 THK

H Type

1 630 061 7450 THK

U Type

1 630 061 7443 THK

SPK-3C

1 630 061 7504

Yamada

Yuki

0609-002

1.2 Preparation for Maintenance
