1-17 AKOEMT -ID 3.3.2 Squeegee Head Section Squeegee Every Day Cleaning Clean the squeegees with a rag soaked in industrial alcohol (solvent) or directly with industrial alcohol (solvent). Remove deteriorated solder past…
1-16 AKOEMT-ID
3.3 Inspection, Cleaning, and Lubrication Spots
The following describes about the maintenance tasks required for each
individual units.
Reference
Refer to "2. Maintenance Check List" for the maintenance items classified
based on frequency.

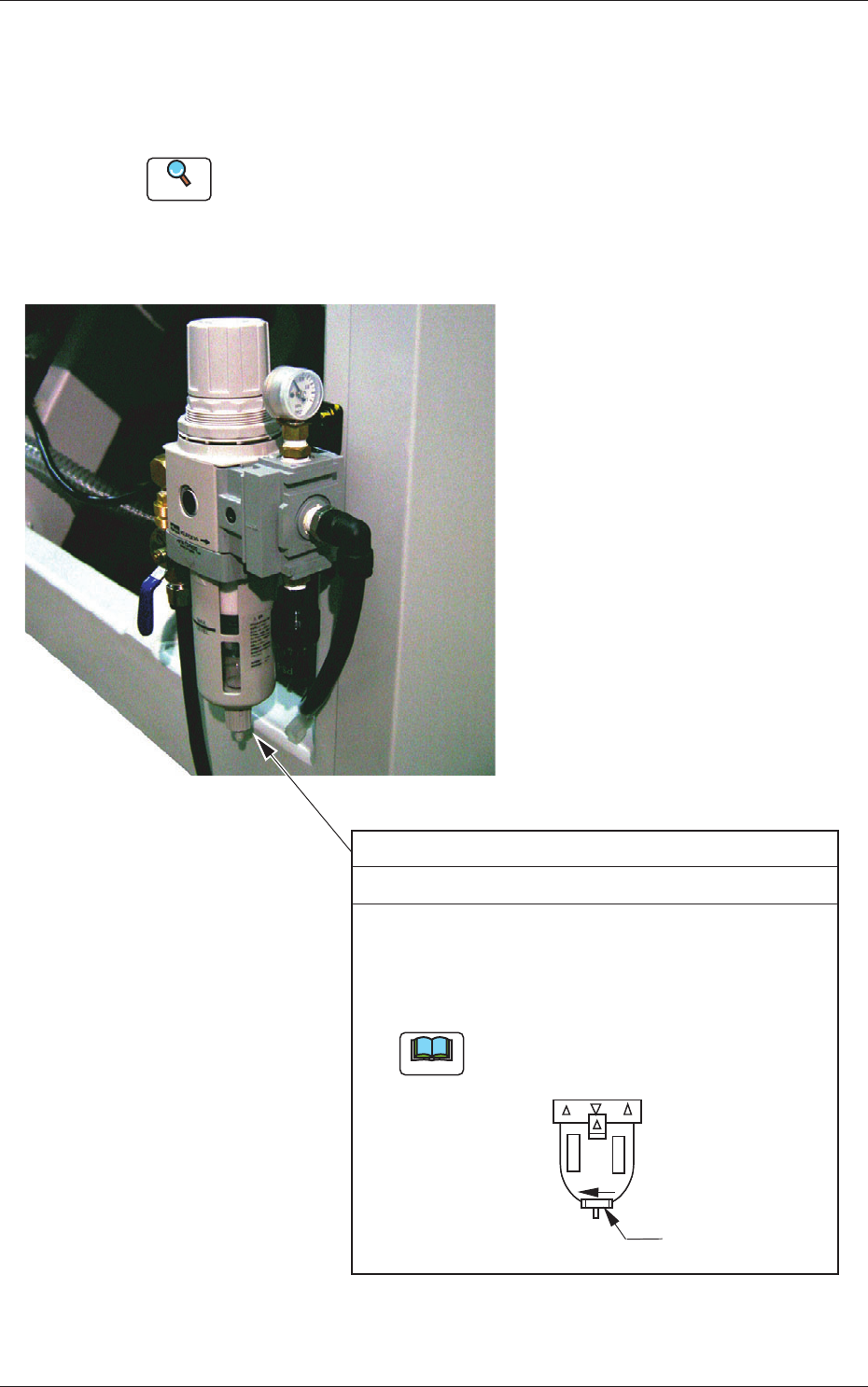

3.3.1 Air Source
A
Drain
Every Week Cleaning
Follow the steps below to purge the drain.
(1) Put a container under the drain outlet.
(2) Slowly turn the cap (located under the
outside case of each air filter) in the arrow
direction A.
If the cap is rotated excessively, dirty water,
etc., may gush out.
Cap
Note
Fig. 4A7
0609-002
3.3 Inspection, Cleaning, and Lubrication Spots
1-17 AKOEMT-ID

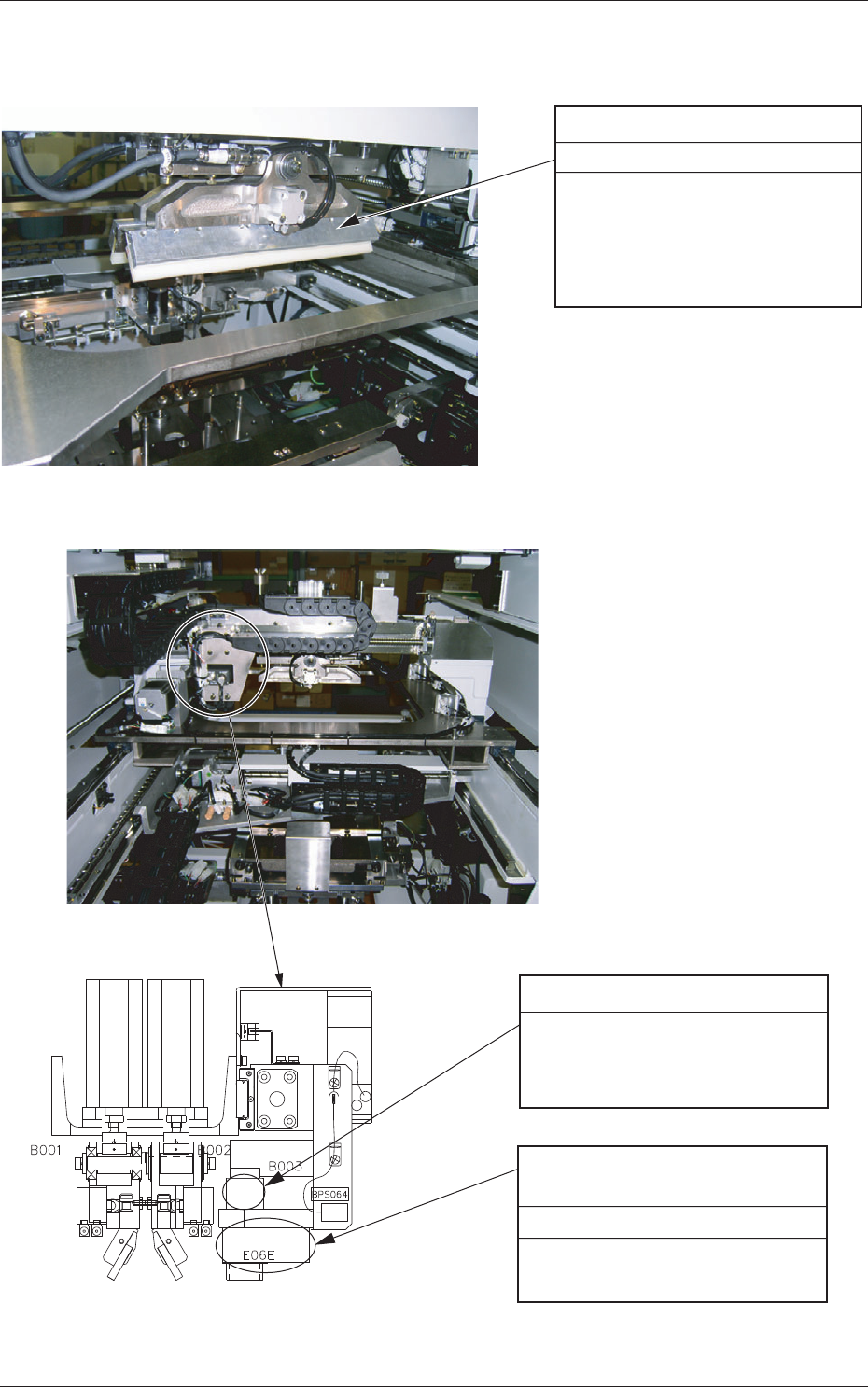

3.3.2 Squeegee Head Section
Squeegee
Every Day Cleaning
Clean the squeegees with a rag
soaked in industrial alcohol
(solvent) or directly with industrial
alcohol (solvent).
Remove deteriorated solder paste.
Fig. 4A8
Screen Recognition Camera (Lens)
Remove dirt and dust, etc., with an
air blow brush for camera.
Remove dirt and dust, etc., with an
air blow brush for camera.
Screen Recognition Lighting
Glass Surface
Every Month Cleaning
Every Month Cleaning
Camera
Lens
Lighting
Fig. 4A9
0609-002
3.3 Inspection, Cleaning, and Lubrication Spots
1-18 AKOEMT-ID
Note
The used attachments should
be the U- and P-types or the
SPK-3C.
Note
Note

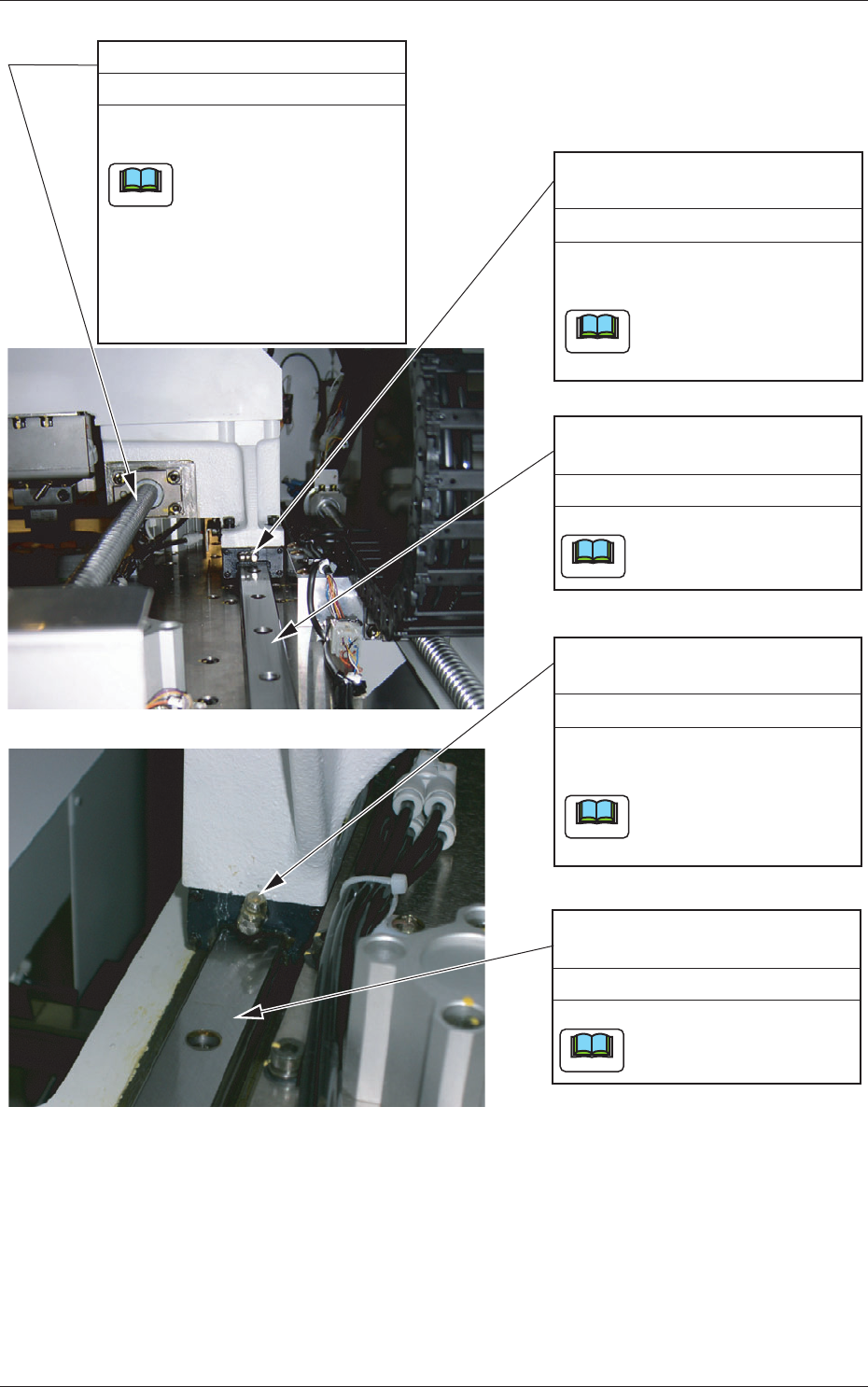

Squeegee Head Y-Axis Ball Screw
Every 6 Months Lubrication
Apply grease with a brush or a
spatula.
If a large amount of grease is
applied, it may be dispersed
over a PCB and the screen.
After applying grease, brush
the surface or scrape with a
spatula until a small amount
of grease remains on the
surface of the ball screw.
Squeegee Head Y-Axis Linear
Guide (Right Side)
Every 6 Months Lubrication
Inject new grease from the grease
nipple with a grease gun.
Squeegee Head Y-Axis Linear
Guide (Right Side)
Every Month Cleaning
Clean the stopper with an oiled rag.
Do not leave any waste
threads after cleaning.
The used attachments should
be the U- and P-types or the
SPK-3C.
Note
Squeegee Head Y-Axis Linear
Guide (Left Side)
Every 6 Months Lubrication
Inject new grease from the grease
nipple with a grease gun.
Note
Squeegee Head Y-Axis Linear
Guide (Left Side)
Every Month Cleaning
Clean the stopper with an oiled rag.
Do not leave any waste
threads after cleaning.
Fig. 4A10
0609-002
